SparkFun Triple Axis Accelerometer Breakout – ADXL335

SparkFun Triple Axis Accelerometer Breakout – ADXL335

16,20

Disponibile

16,20

Disponibile:: 2 disponibili COD: SEN-09269-I12 Categorie: , ,
Visualizza carrello

Descrizione

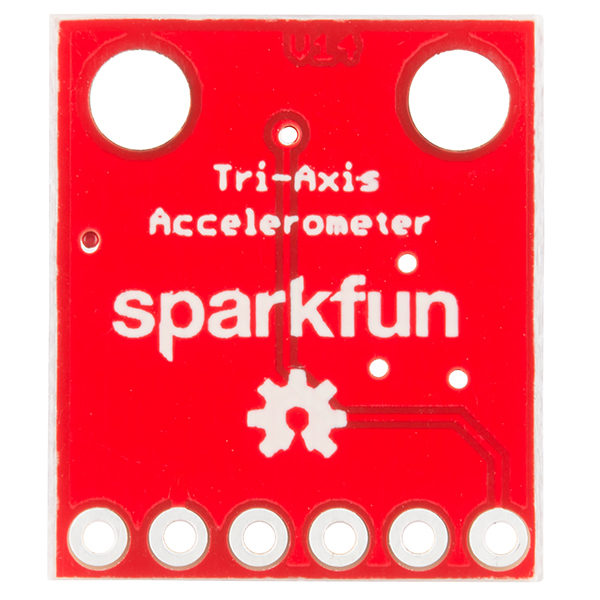

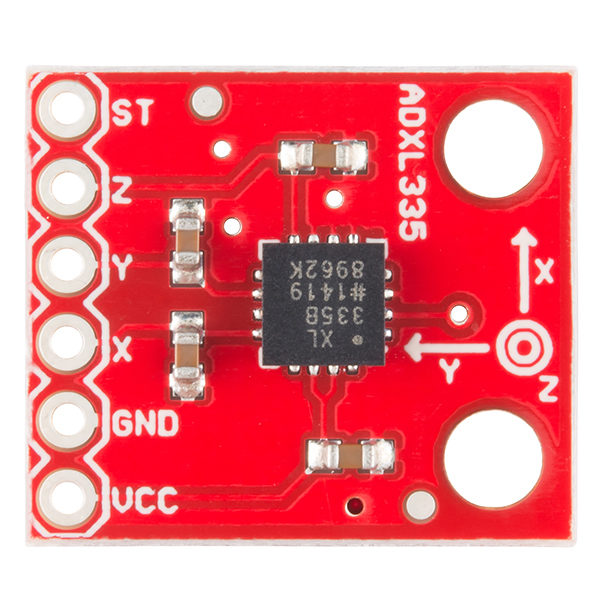

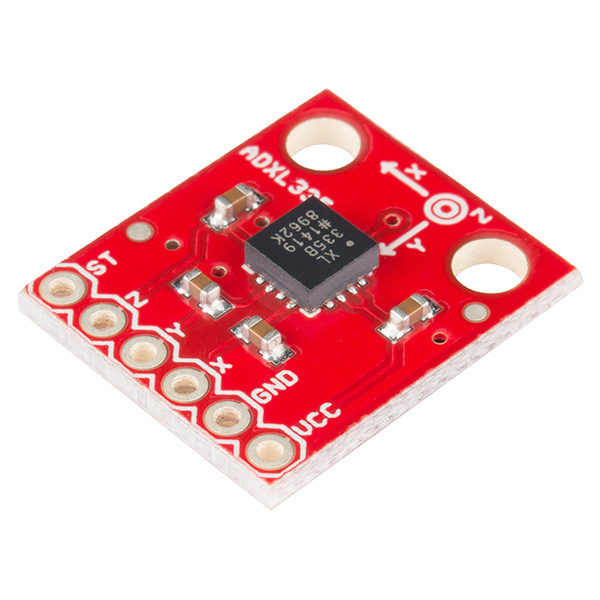

Breakout board for the 3 axis ADXL335 from Analog Devices. This is the latest in a long, proven line of analog sensors – the holy grail of accelerometers. The ADXL335 is a triple axis MEMS accelerometer with extremely low noise and power consumption – only 320uA! The sensor has a full sensing range of +/-3g.

There is no on-board regulation, provided power should be between 1.8 and 3.6VDC.

Board comes fully assembled and tested with external components installed. The included 0.1uF capacitors set the bandwidth of each axis to 50Hz.

Not sure which accelerometer is right for you? Our Accelerometer and Gyro Buying Guide might help!

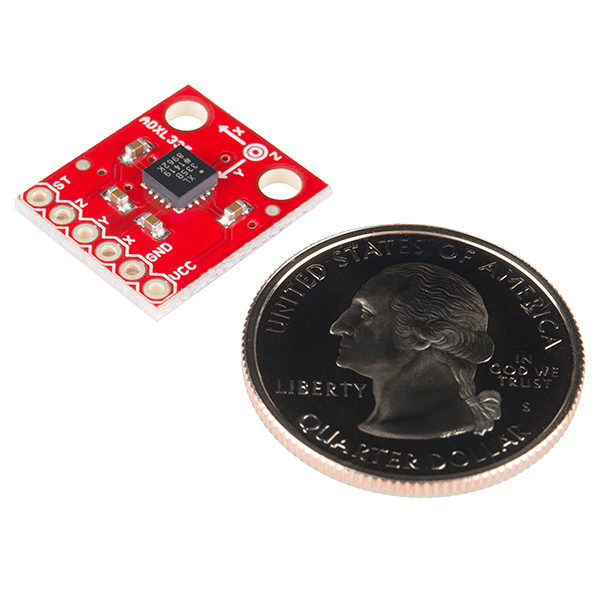

Dimensions: 0.7×0.7″

Documents:

Product page
Schematic
Eagle Files
Datasheet (ADXL335)
Wiring Example
Bildr Example
3D cube project using a PIC
GitHub

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Brand

Sparkfun

Produttore

Senza marca/Generico

MPN

SEN-09269-I12
