Medium Vibration Sensor Switch

Medium Vibration Sensor Switch


In stock


Availability: 7 in stock SKU: AD2384 Categories: ,

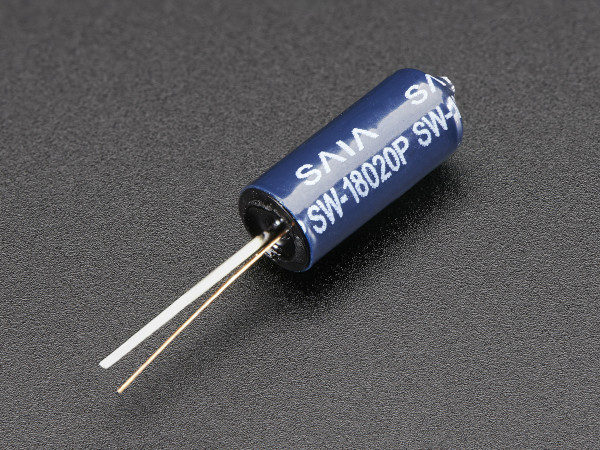

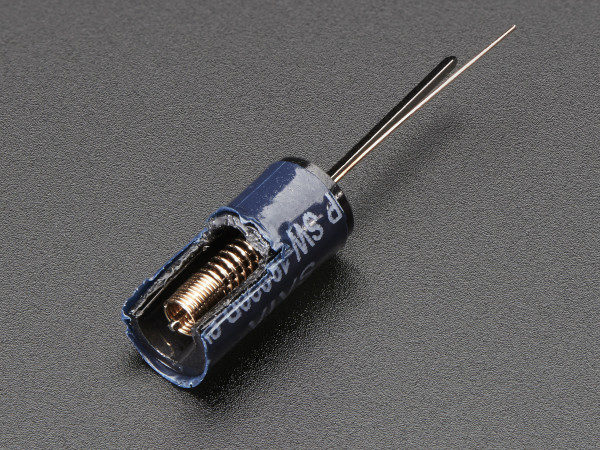

The “poor man's” accelerometer/motion sensor! These spring-vibration switches are medium sensitivity non-directional vibration induced trigger switches. Inside is a medium hardness spring coiled around a long metal pin. When the switch is moved, the spring touches the center pole to make contact. So, when there's motion, the two pins will act like a closed switch. When everything is still, the switch is open. Great for basic projects and wearables!

We also have a version with a stiffer spring, which is harder to trigger, and a version with a very soft spring, which is easier to trigger!

Maximum Operating Temperature: 260°C ± 10°C
Contact Time: 2 – 2.5ms

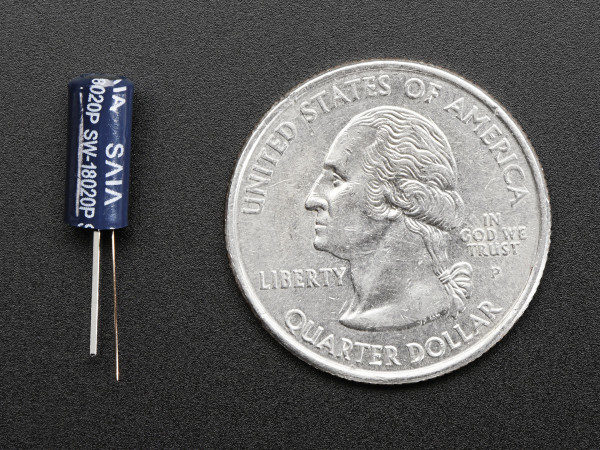

Diameter: 5mm / 0.2″
Height (w/ pins): 23mm / 0.9″
Height (w/o pins): 11mm / 0.4″
Weight: 0.2g

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
