Fast Vibration Sensor Switch (Easy to trigger)

Fast Vibration Sensor Switch (Easy to trigger)


In stock


Availability: 1 in stock SKU: AD1766 Categories: ,

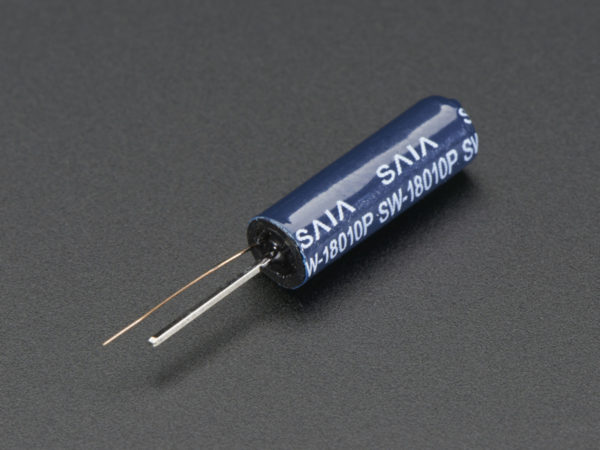

The “poor man's” accelerometer/motion sensor! These spring-vibration switches are high sensitivity non-directional vibration induced trigger switches. Inside is a very soft spring coiled around a long metal pin. When the switch is moved, the spring touches the center pole to make contact. So, when there's motion, the two pins will act like a closed switch. When everything is still, the switch is open. Great for basic projects and wearables!

We also have a version with a slightly stiffer spring which makes it harder to trigger, and a version with a much more stiff spring which is even harder to trigger!

Electrical characteristics:

Maximum Voltage: 12V
Contact Resistance: <10 ohm Contact Time: 2 ms Maximum Current: 20mA Insulation Resistance: >10M ohm
Temperature Range: -40 to 80ºC
Operating lifespan: 100,000 cycles

Diameter: 5mm/0.2″
Height (w/ pins): 25mm/1″
Height (w/o pins): 15mm/0.6″
Weight: 0.3g

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
