Gas Sensor Breakout Board

Gas Sensor Breakout Board

0,78

Disponibile

0,78

Disponibile: 21 disponibili COD: BOB-08891 Categorie: ,
Visualizza carrello

Descrizione

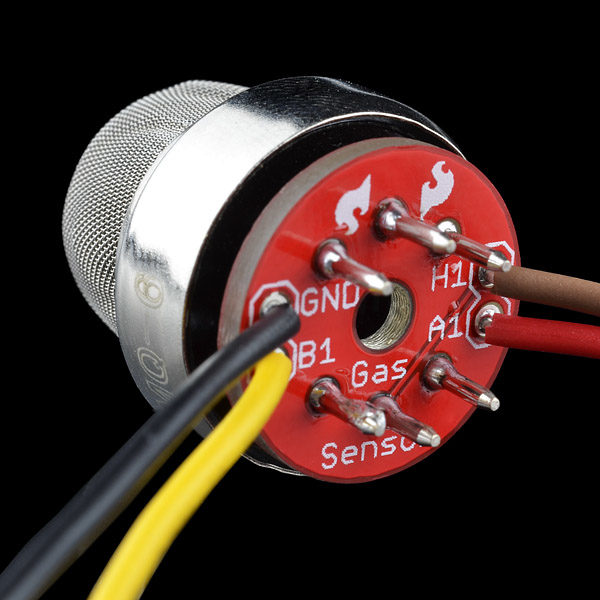

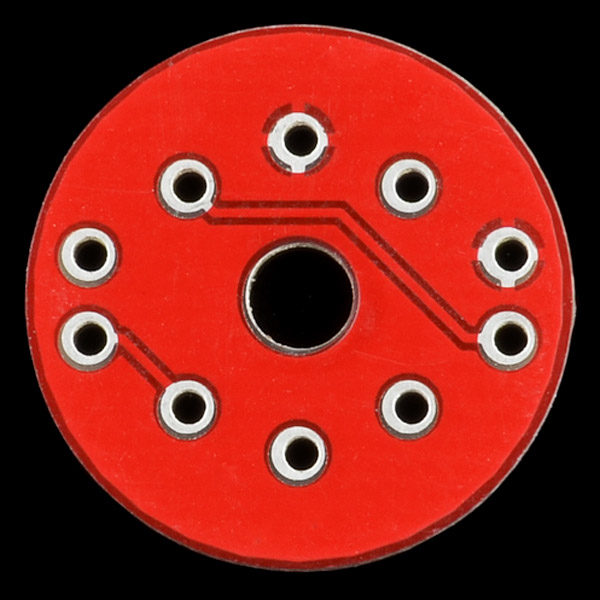

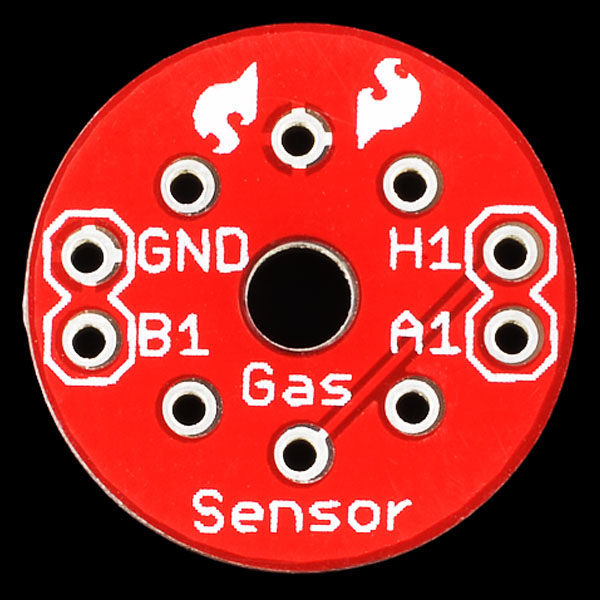

Simple breakout board for the MQ – 3, MQ – 4 and MQ – 6 gas sensors. All you need is VCC at 5V, GND, and a resistor to an ADC, that is it.

Note: This is the PCB only. Sensors listed below.

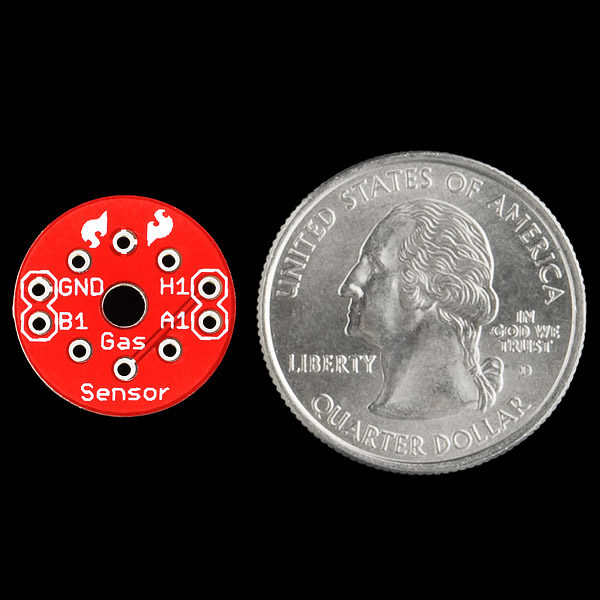

Dimensions: 16.8mm diameter

Documents:

Schematic
Eagle Files
Wiring Example

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

BOB-08891

Brand

Sparkfun
