Raspberry Pi 3 Model A+

Raspberry Pi 3 Model A+


In stock


Availability: 974 in stock SKU: RP3-RPI3APLUS Categories: , Tags: ,

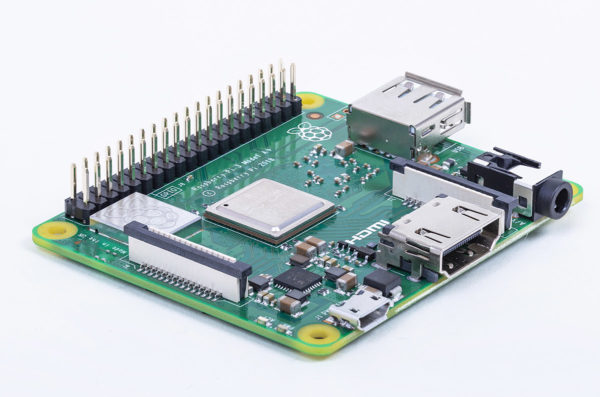

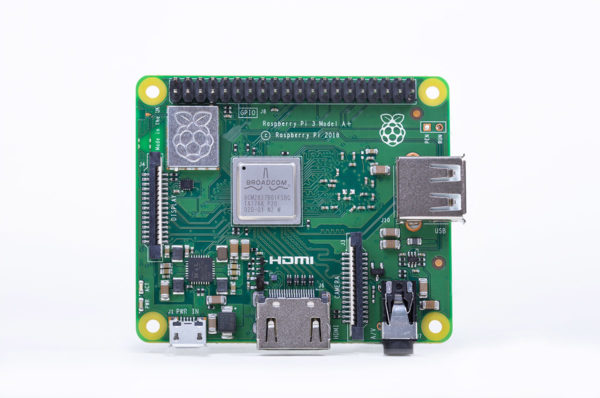

The Raspberry Pi 3 Model A+ , like the Raspberry Pi 3 Model B+, boasts a 64-bit quad core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE.

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model A+ has the same mechanical footprint as the Raspberry Pi 1 Model A+.

Specification :

Processor: Broadcom BCM2837B0, Cortex-A5364-bit SoC @ 1.4 GHz

Memory: 512MB LPDDR2 SDRAM

Connectivity: 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE

Access: Extended 40-pin GPIO header

Video & sound:      1 × full size HDMI

MIPI DSI display port

MIPI CSI camera port

4 pole stereo output and composite video port

Multimedia: H.264, MPEG-4 decode (1080p30);H.264 encode (1080p30);OpenGL ES 1.1, 2.0 graphics

SD card support: Micro SD format for loading operating system and data storage

Input power: 5 V/2.5 A DC via micro USB connector

5 V DC via GPIO header

Environment: Operating temperature, 0-50°C

Compliance: For a full list of local and regional product approvals, please

Production lifetime: The Raspberry Pi 3 Model A+ will remain in production until at least January 2023

Additional information

Weight 0,1 kg
Dimensions 8 × 1 × 5 cm
