SparkFun Line Sensor Breakout – QRE1113 (Digital)

SparkFun Line Sensor Breakout – QRE1113 (Digital)

2,74

Disponibile

2,74

Disponibile: 11 disponibili COD: ROB-09454 Categorie: , ,
Visualizza carrello

Descrizione

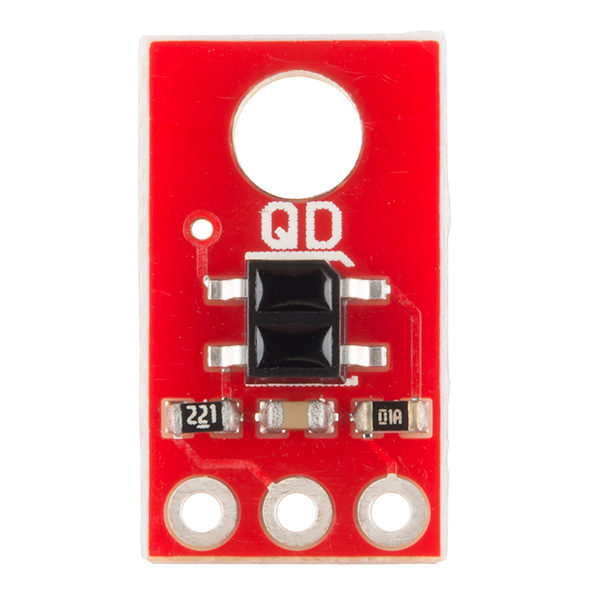

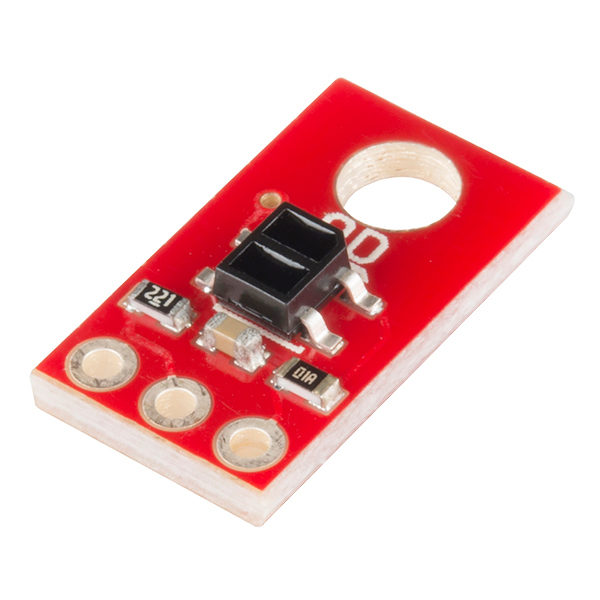

This version of the QRE1113 breakout board features a digital output, using a capacitor discharge circuit to measure the amount of reflection. This tiny board is perfect for line sensing when only digital I/O is available, and can be used in both 3.3V and 5V systems.

The board’s QRE1113 IR reflectance sensor is comprised of two parts – an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate. A 100? resistor is on-board and placed in series with the LED to limit current. The output of the phototransistor is tied to a 10nF capacitor. The faster that capacitor discharges, the more reflective the surface is.

These sensors are widely used in line following robots. White surfaces reflect more light than black, so, when directed towards a white surface, the capacitor will discharge faster than it would when pointed towards a black surface.

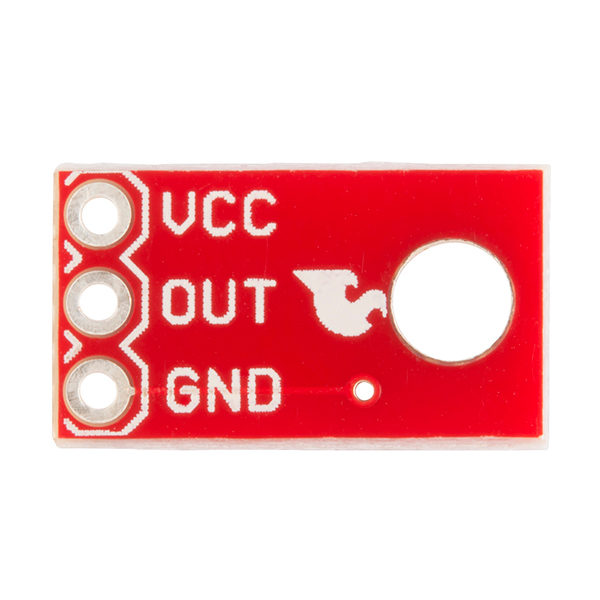

The power input and output pins are brought out to a 3-pin, 0.1″ pitch header. The board also has a single mounting hole if you want to screw it onto something.

We also have an analog version of this board.

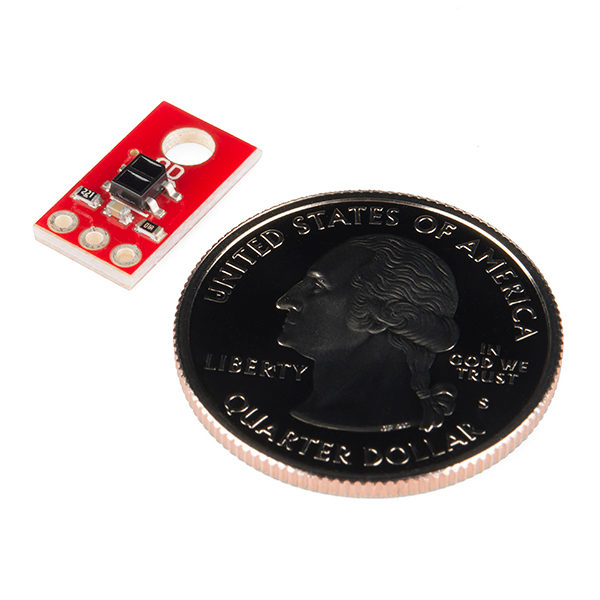

Dimensions: 0.3×0.55″

Features:

5VDC operating voltage
25mA supply current
Digital I/O compatible
No ADC required
Optimal sensing distance: 0.125″ (3mm)

Documents:

Schematic
Eagle Files
Datasheet (QRE1113)
Bildr Tutorial
GitHub

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

ROB-09454

Brand

Sparkfun
