Short Flex/Bend Sensor

Short Flex/Bend Sensor


In stock


Availability: 6 in stock SKU: AD1070 Categories: , Tag:

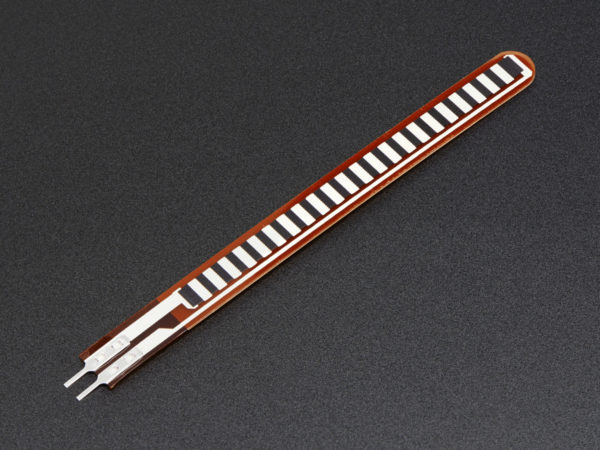

This sensor can detect bending in one direction. They were popularized by being used in the Nintendo PowerGlove as a gaming interface.

These sensors are easy to use, they are basically resistors that change value based on how much their flexed. If they're unflexed, the resistance is about ~25K?. When flexed all the way the resistance rises to ~100K?. They're pretty similar to FSRs so following this tutorial will get you started. You can use an analog input on a micro-controller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.

The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief – such as clamping or gluing that part so as not to rip out the contacts!

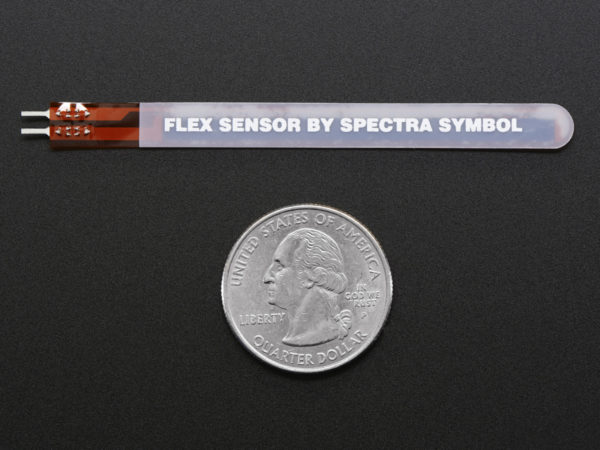

Length: 77.57mm/3.054in
Width: 6.41mm/0.2525in
Thickness: 0.48mm/0.019in
Weight: 0.27g/0.0095oz

Datasheet from SpectraSymbol

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
