Thermocouple Type-K Glass Braid Insulated Stainless Steel Tip

Thermocouple Type-K Glass Braid Insulated Stainless Steel Tip

10,77

In stock

10,77

Availability: 2 in stock SKU: AD3245 Category:
View basket

Description

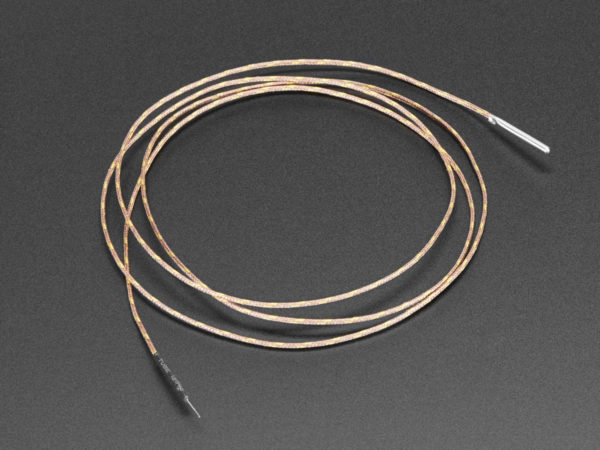

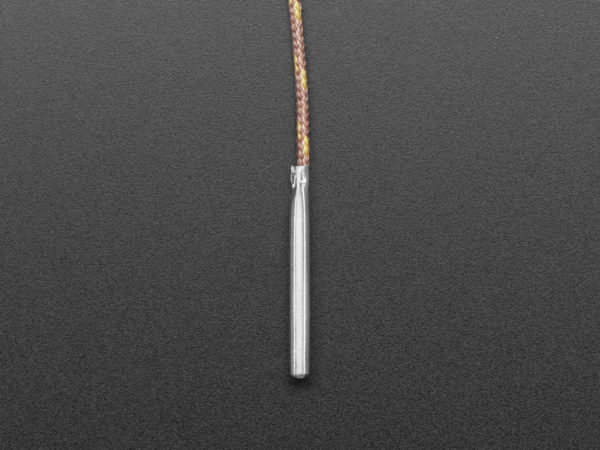

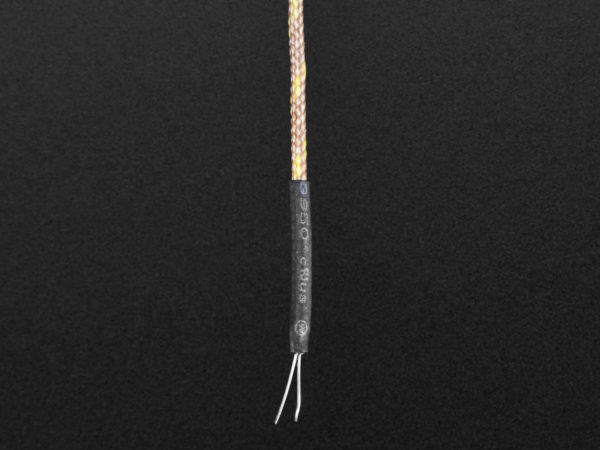

Thermocouples are best used for measuring temperatures that can go above 100°C. This is a bare wires stainless-steel tip probe which can measure air or surface temperatures. Most inexpensive thermocouples have a vinyl covering which can melt at around 200°C, this one uses a fiberglass braid so it can be used in high temperature measurements such as heaters and ovens. There's a small piece of heat shrink on the connector ends of the wire to keep the fiberglass from fraying, and a 2 cm long stainless steel probe on the opposite end. The thermocouple tip is electrically connected to the steel probe so it's not good for measuring conductive things that may end up with an electric charge

K type thermocouple with glass over-braiding
Good up to 500°C (900°F)!
Color-coded wires
1 meter long (a little more than 3 feet)
Best used with a thermocouple amplifier such as the MAX31855, AD8495 or MAX31856

Additional information

Weight 0,1 kg
Dimensions 1 × 10 × 1 cm
Brand

Adafruit
