SparkFun Humidity and Temperature Sensor Breakout – Si7021

SparkFun Humidity and Temperature Sensor Breakout – Si7021

6,77

Out of stock

6,77

Availability: Out of stock SKU: SEN-13763 Categories: , ,

Informami quando l'articolo è disponibile.

Description

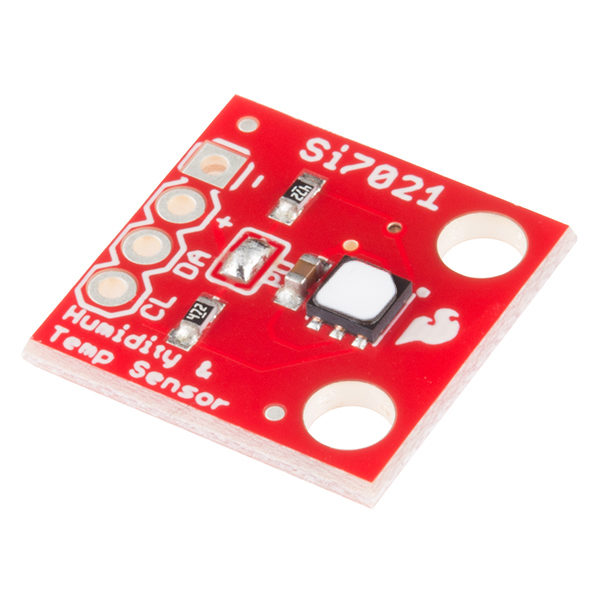

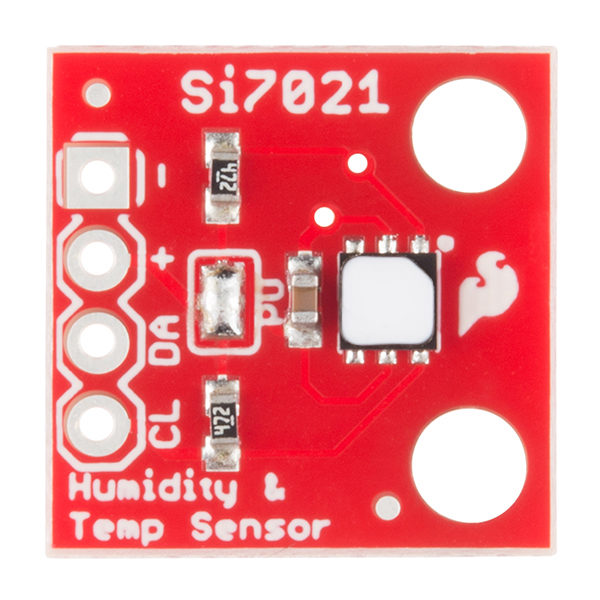

The Si7021 is a low-cost, easy-to-use, highly accurate, digital humidity and temperature sensor. This sensor is ideal for environmental sensing and data logging and perfect for build a weather stations or humidor control system. All you need are two lines for I2C communication, and you’ll have relative humidity readings and very accurate temperature readings as a bonus!

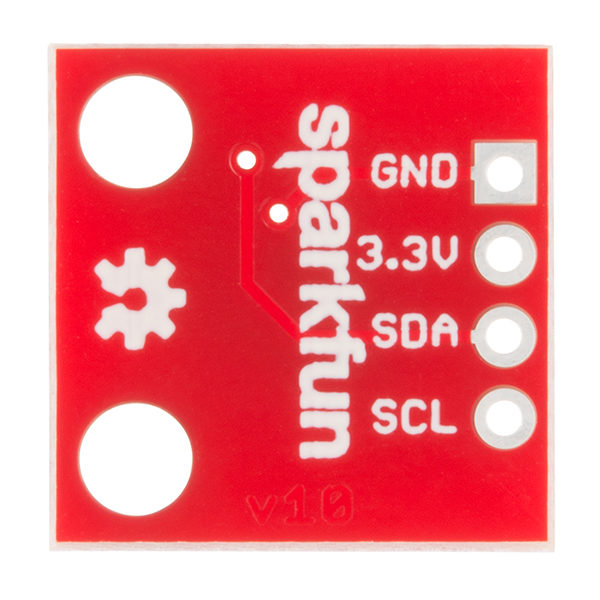

There are only four pins that need to be hooked up in order to start using this sensor in a project. One for VCC, one for GND, and two data lines for I2C communication. This breakout board has built-in 4.7K? pullup resistors for I2C communications. If you’re hooking up multiple I2C devices on the same bus, you may want to disable these resistors.

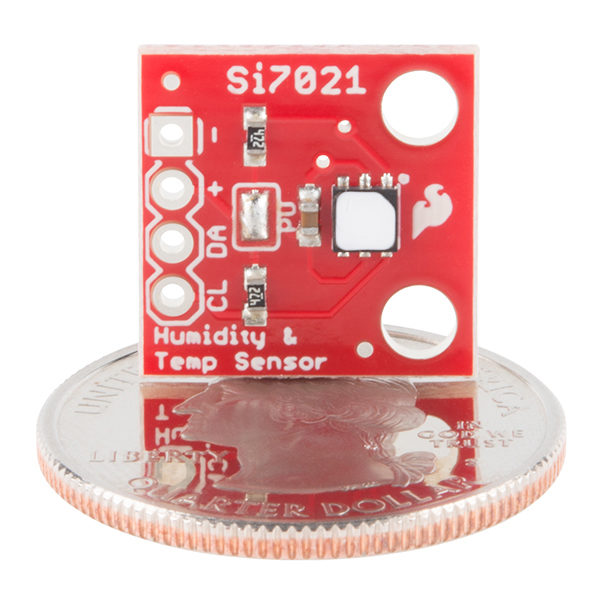

Dimensions: 0.6″ x 0.6″

Documents:

Product page
Schematic
Eagle Files
Datasheet (Si7021)
Hookup Guide
GitHub (Design Files & Example Code)
GitHub (Library)

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

SEN-13763-P11

Brand

Sparkfun
