SparkFun Real Time Clock Module

SparkFun Real Time Clock Module

16,51

Disponibile

16,51

Disponibile: 1 disponibili COD: BOB-12708 Categorie: ,
Visualizza carrello

Descrizione

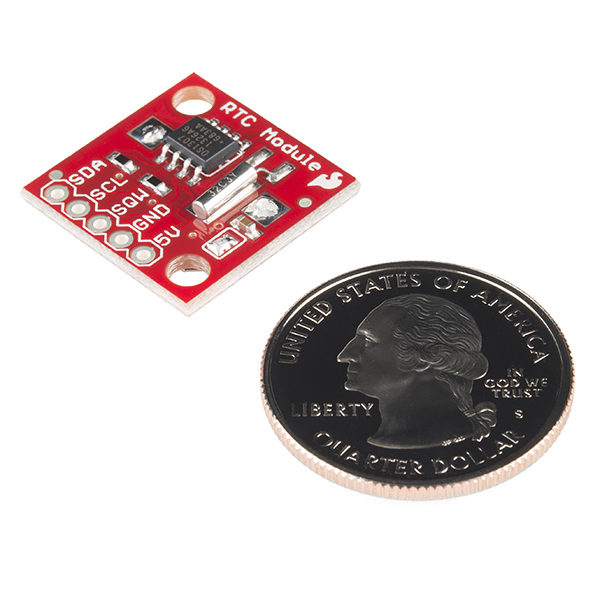

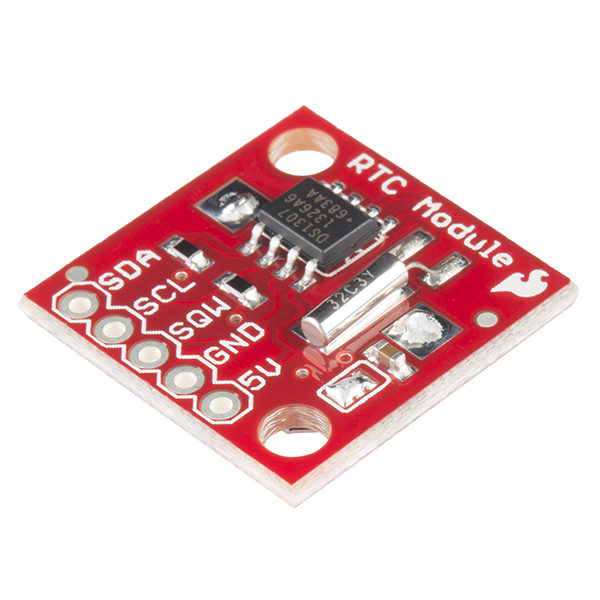

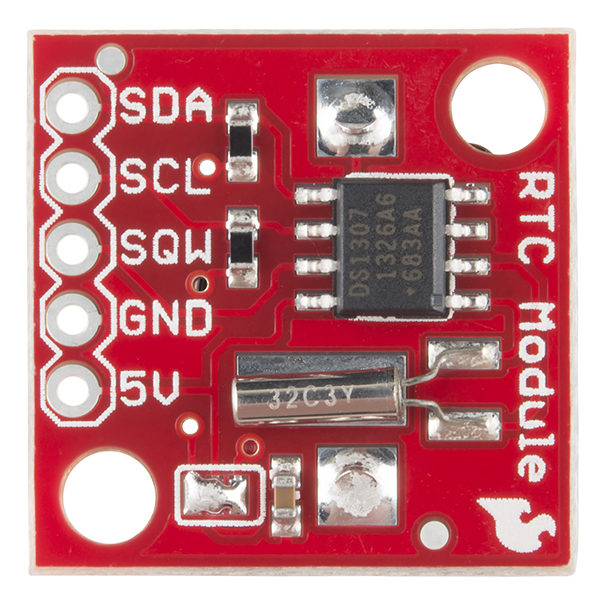

This is the SparkFun Real Time Clock (RTC) Module, this little breakout that uses the DS1307 to keep track of the current year, month, day as well as the current time. The module comes fully assembled and pre-programmed with the current time (MST) and includes a small CR1225 Lithium coin cell battery that will run the RTC for a minimum of 9 years (17 years typical) without an external 5V power supply.

The DS1307 RTC is accessed via the I2C protocol. We’ve written a test-bed to program the modules, this code should give you some insight on how to interface the module to any microcontroller using our example software I2C and BCD routines.

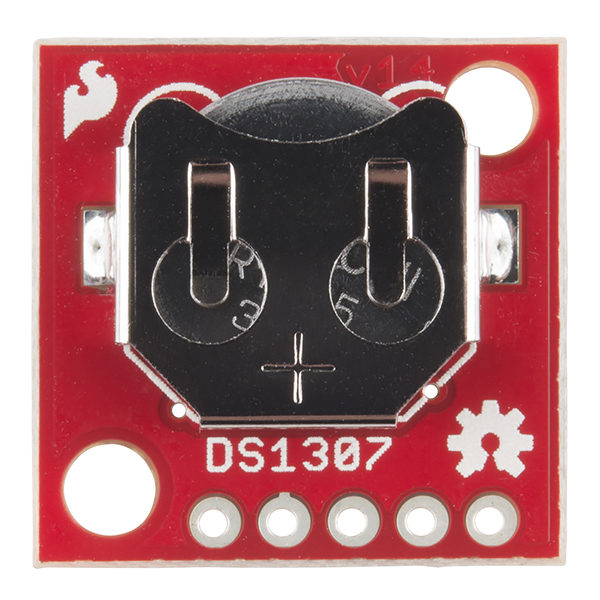

This rev of the Real Time Clock module finally adds I2C resistors and a larger battery pad to fix the problems with the battery shorting to the board.

Features:

Two wire I2C interface
Hour : Minutes : Seconds AM/PM
Day Month, Date – Year
Leap year compensation
Accurate calendar up to year 2100
Battery backup included
1Hz output pin
56 Bytes of Non-volatile memory available to user
0x68 I2C Address

Dimensions: 0.75×0.75″ (20x20mm)

Documents:

Schematic
Eagle Files
Datasheet (DS1307)
Wiring Example
Example 16F88 code
Arduino Tutorial (Portuguese) Thanks Daniel Gonçalves!
Bildr Tutorial
GitHub (Design Files)

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

BOB-12708

Brand

Sparkfun
