VCNL4010 Proximity/Light sensor

VCNL4010 Proximity/Light sensor


In stock


Il VCNL4010 è un sensore di prossimità progettato per rilevare la distanza entro i 200mm (secondo i test di Adafruit il range migliore per il funzionamento è 10-150mm). Il sensore, prodotto dalla Vishay, integra un ulteriore sensore di luce ambientale. Comunica tramite I2C e supporta logica a 3.3V o a 5V. Sulla scheda è presente un regolatore a 3.3V che ne rende possibile l?alimentazione sia a 3.3V che a 5V. È importante ricordare che, se alimentato a 5V, si ottengono risultati più performanti, dato che il pin Vin alimenta il LED IR.

Availability: 2 in stock SKU: AD466-M10 Categories: , ,

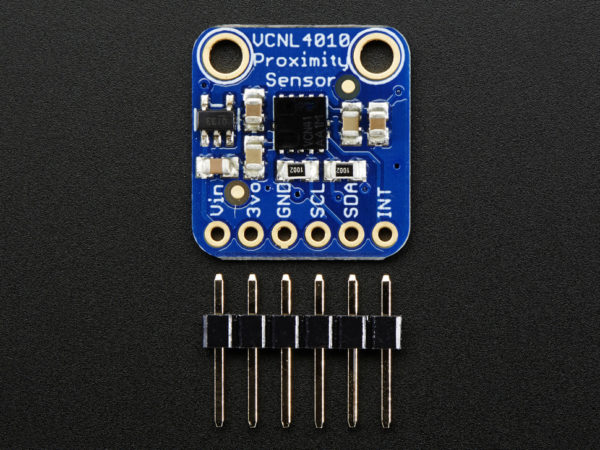

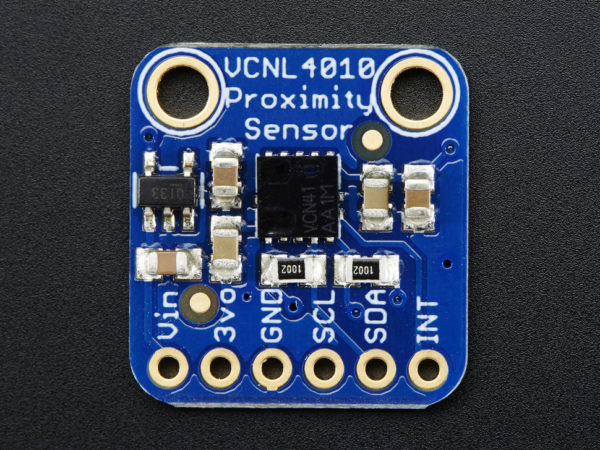

The VCNL4010 sensor is a nice way to add a small-distance proximity sensor to your microcontroller project. For longer distances (in the range of cm, you can use a SHARP IR distance sensor, but those are only good if the object is over 10 cm away. The VCNL4010 is designed for much shorter distances, no more than 200mm (about 7.5″) and under our experimentation we found it worked best at distances of about 10-150mm. It would be good for say detecting when a hand moved nearby, or before a robot smacks into a wall. The sensor also has an ambient light sensor built in.

This sensor is easy to use with any microcontroller that has i2c capability. It is 5 volt compliant so you can use it with 3.3V or 5V logic with no risk of damage. There is an onboard 3.3V ultra low dropout regulator so you can power it with 3.3 to 5.0V. However, if you can give it 5.0V that is ideal since the VIN voltage powers the IR LED and the higher the voltage you can give it, the more powerful it is.

New! As of Sept 23, 2015 we are now shipping this breakout with the updated VCNL4010 – the library has changed and the chip is slightly different in that it now supports interrupts. We also made the board a little more compact. However, the overall proximity functionality is identical.

We have working example code for the VCNL4010 version of this breakout, in the form of an Arduino sketch. It is easily adaptable to any microcontroller, check out the github repository to download! Not for use with the VCNL4000!

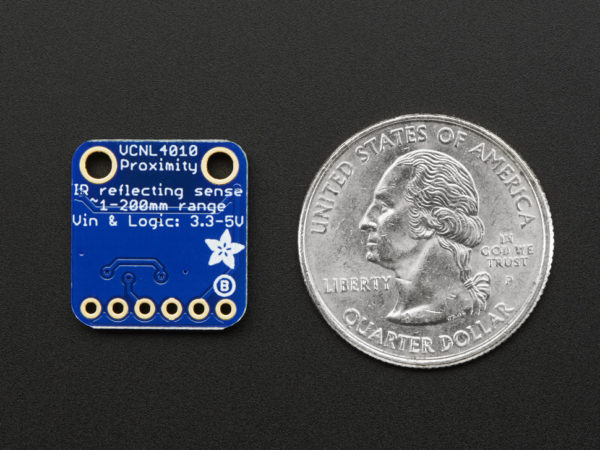

PCB dimensions: 23mm x 23mm (0.9″ x 0.9″)
Thickness including tallest SMT components: ~3.15mm (0.125″)
Thickness of PCB: 1.75mm / 0.070″
This board/chip uses I2C 7-bit address 0x13

Datasheets for the VCNL4010 version of this board:

VCNL4010 Datasheet / App Note / Product Sheet

Pagina del Produttore

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
