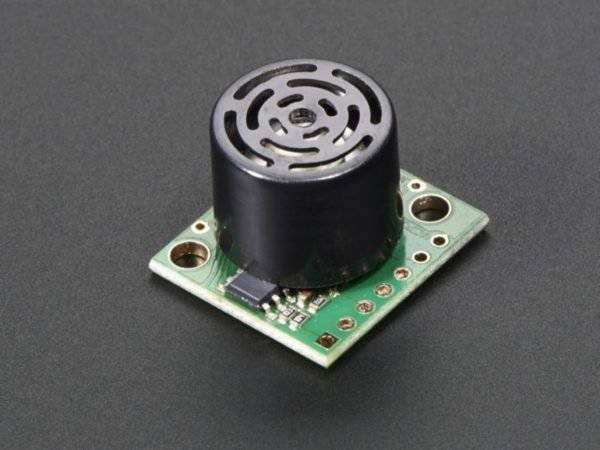

Maxbotix Ultrasonic Rangefinder – LV-EZ1

Maxbotix Ultrasonic Rangefinder – LV-EZ1

43,60

In stock

43,60

Sensore di prossimità ad ultrasuoni. E? in grado di rilevare oggetti da 0 a 6.45 metri e fornisce informazioni sulla distanza da 16cm a 6.45m con una risoluzione di 2.54cm. Gli oggetti che si trovano ad una distanza da 0 a 16cm verranno indicati come distanti 16cm. I dati vengono comunicati in diversi formati:  PWM, Segnale analogico (Vcc/512 per ogni pollice o 2.54cm), e output digitale seriale con un baudrate di 9600.

Availability: 1 in stock SKU: AD172 Categories: , Tag:

Description

LV-EZ1 Maxbotix Ultrasonic Rangefinder provides very short to long-range detection and ranging, in an incredibly small package. It can detect objects from 0-inches to 254-inches (6.45-meters) and provides sonar range information from 6-inches out to 254-inches with 1-inch resolution. (Objects from 0 inches to 6-inches range as 6-inches.) The interface output formats included are pulse width output (PWM), analog voltage output (Vcc/512 volts per inch), and serial digital output (9600 baud).

A good sensor for when a Sharp IR distance sensor won't cut it. For example of using this with an Arduino, see the Halloween Pumpkin project.

LV-EZ1 Data Sheet / Product Information Guide is available here.

The different LV models have different beam width patterns, check this image for a comparison of all the LV model beam patterns. For higher sensitivity, check out the HR-LV models – they have up to 1mm sensitivity and 5 meter range!


SPECIFICHE TECNICHE:
Datasheet
TUTORIALS:
BPM85/180 [by Adafruit]

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
BRAND

Adafruit
