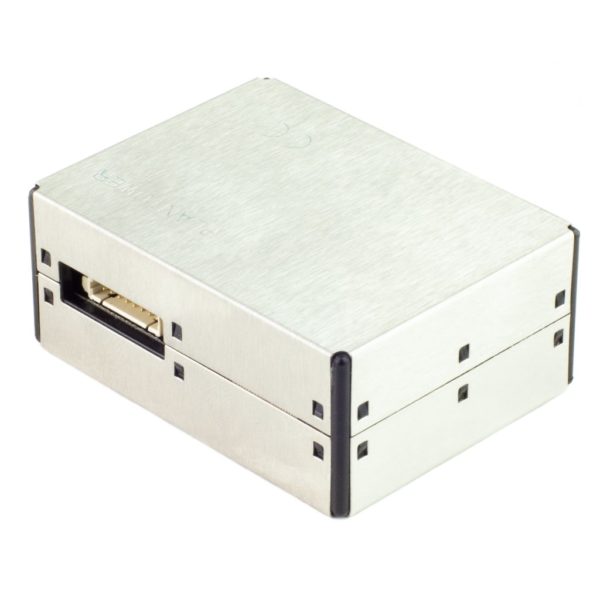

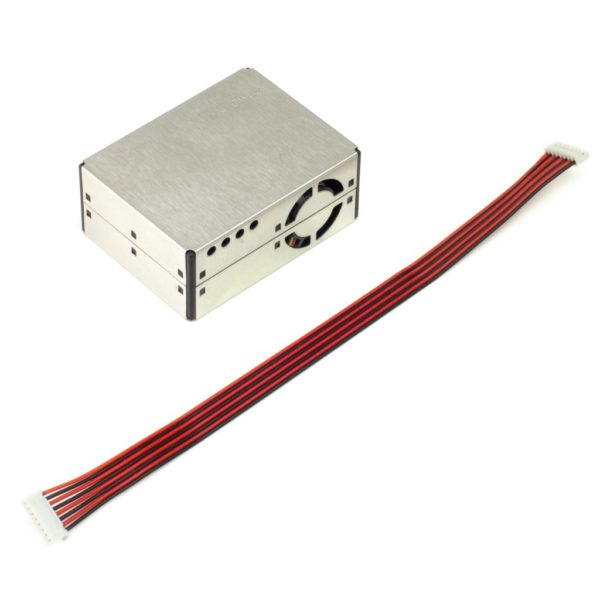

PMS5003 Particulate Matter Sensor with Cable

PMS5003 Particulate Matter Sensor with Cable




Disponibile:: 3 disponibili COD: PIM-COM1707-D4 Categorie: ,
Visualizza carrello


Monitor air pollution cheaply and accurately with this matchbox-sized particulate matter (PM) sensor from Plantower! It senses particulates of various sizes (PM1, PM2.5, PM10) from sources like smoke, dust, pollen, metal and organic particles, and more.

Pair this particulate matter sensor with our Enviro plus and build your own air quality monitoring station to contribute to citizen science. Just plug the cable into the sensor and then into the connector on the underside of Enviro plus, and away you go!

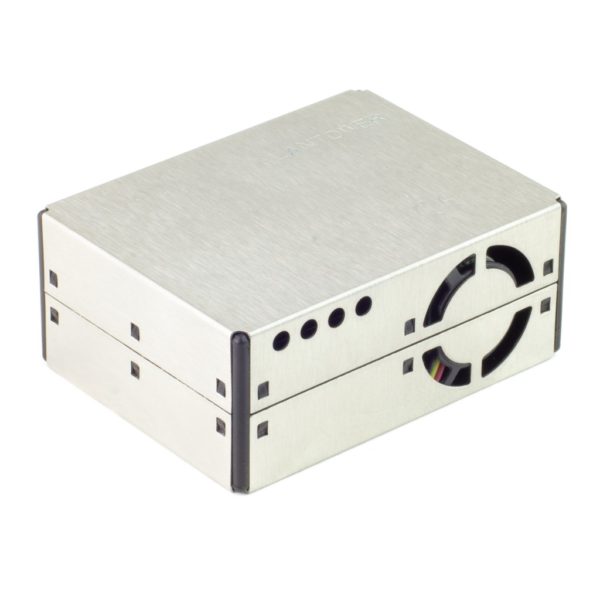

The sensor has a small fan that sucks air through the sensor and past a laser that can detect both the number (and hence concentration) and size of particles in the surrounding air.

Plantower PMS5003 Particulate Matter (PM) Sensor (datasheet)
Detects PM1, PM2.5, PM10 particulates
15cm Picoblade cable
UART serial interface
Python library
Dimensions: 50x38x21mm

Our Python library for the PMS5003 sensor lets you read PM1, PM2.5, and PM10 in both standard and environmental units, and numbers of particles of various sizes: >0.3, >0.5, >1.0, >2.5, >5, and >10um.

Note that if you're using this sensor with Raspberry Pi, then you'll need to make a couple of changes to its configuration. Type sudo raspi-config in the terminal and then under “Interfacing options” and “Serial” disable the login shell and enable the serial port hardware. Edit your /boot/config.txt file and add the lines enable_uart=1 and dtoverlay=pi3-miniuart-bt to the bottom of the file.

Our Enviro plus installation script will do all of this configuration for you.
There's a blue protective film that covers the metal casing of the sensor, and you can peel this off before use.

Informazioni aggiuntive

Peso0.2 kg
Dimensioni5 × 1 × 3 cm
