IR distance sensor includes cable (10cm-80cm) – GP2Y0A21YK0F

IR distance sensor includes cable (10cm-80cm) – GP2Y0A21YK0F


In stock


Sensore della distanza a infrarossi. Comunica con un segnale analogico che può essere utilizzato per determinare quanto dista l?oggetto rilevato. Include il cavo di comunicazione lungo circa 30.48cm. Alimentazione a 5V. Il voltaggio analogico in uscita andrà da 3V quando l?oggetto dista 10cm a 0.4V quando si trova a 80cm.

Availability: 1 in stock SKU: AD164 Categories: , , Tag:
View basket

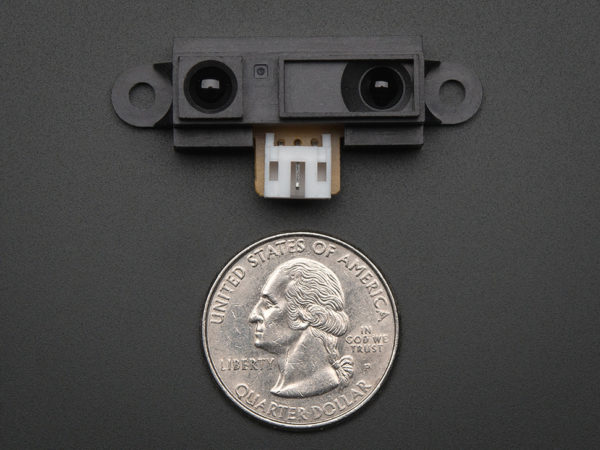

This SHARP distance sensor bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. Comes with 12″ long 3-JST interface wire. These sensors are good for short-range detection. For over 1 m distance, we suggest using sonar sensors

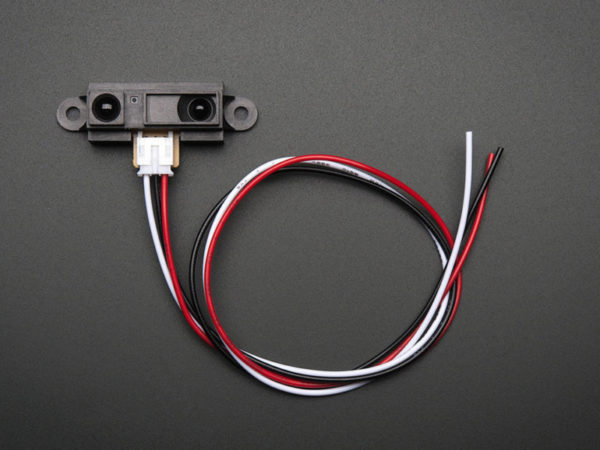

To use, connect black wire to ground, red wire to 5V and white wire to analog input. The analog voltage out will range from 3V when an object is only 4″ (10 cm) away and 0.4V when the object is 32″ (80 cm) away

For more information, please see the datasheet!
BPM85/180 [by Adafruit]

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
