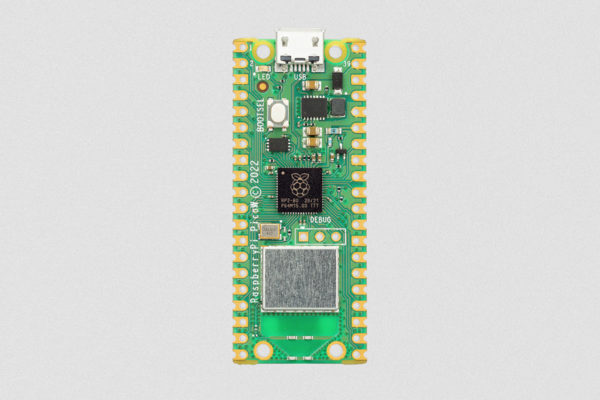

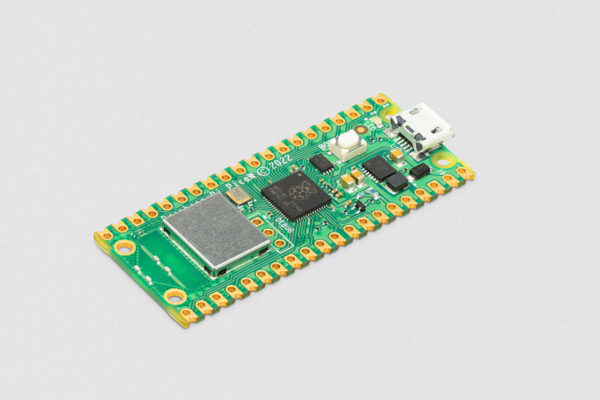

Raspberry Pi Pico W

Description

Raspberry Pi Pico W has been designed to be a low cost yet flexible development platform for RP2040, with a 2.4GHz

wireless interface and the following key features:

• RP2040 microcontroller with 2MB of flash memory

• On-board single-band 2.4GHz wireless interfaces (802.11n)

• Micro USB B port for power and data (and for reprogramming the flash)

• 40 pin 21mmx51mm ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations

◦ Exposes 26 multi-function 3.3V general purpose I/O (GPIO)

◦ 23 GPIO are digital-only, with three also being ADC capable

◦ Can be surface mounted as a module

• 3-pin ARM serial wire debug (SWD) port

• Simple yet highly flexible power supply architecture

◦ Various options for easily powering the unit from micro USB, external supplies or batteries

• High quality, low cost, high availability

• Comprehensive SDK, software examples and documentation

For full details of the RP2040 microcontroller please see the RP2040 Datasheet book. Key features include:

• Dual-core cortex M0+ at up to 133MHz

◦ On-chip PLL allows variable core frequency

• 264kByte multi-bank high performance SRAM
