Raspberry Pi Debug Probe

Raspberry Pi Debug Probe

13,25

In stock

13,25

Availability: 17 in stock SKU: RPI-PICO-DEBUG Categories: , Tag:

Description

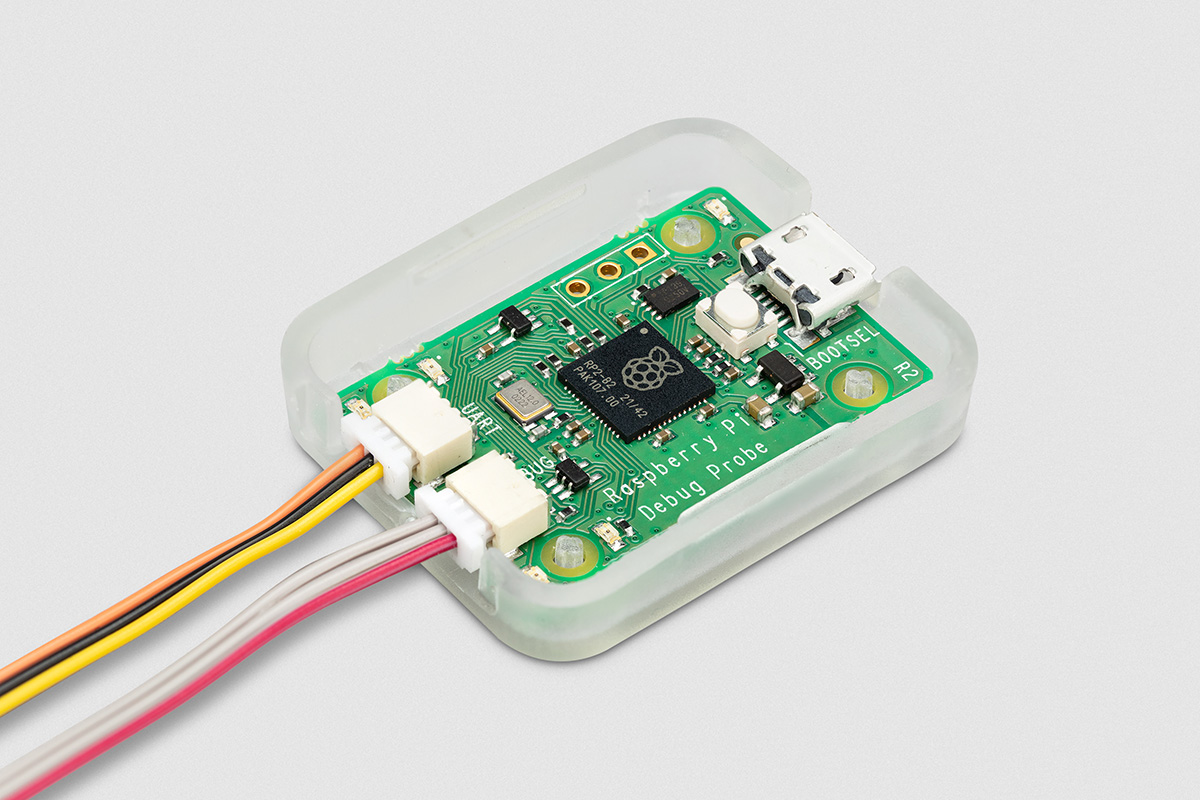

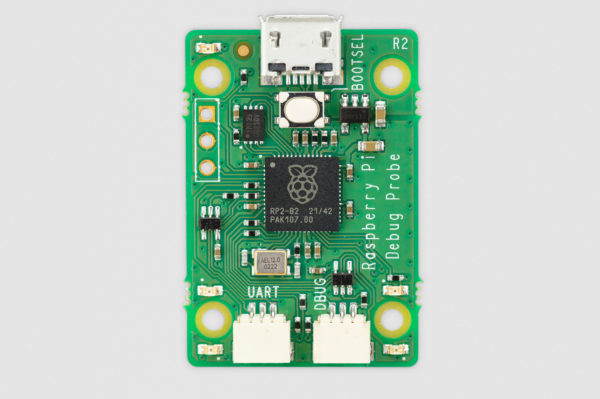

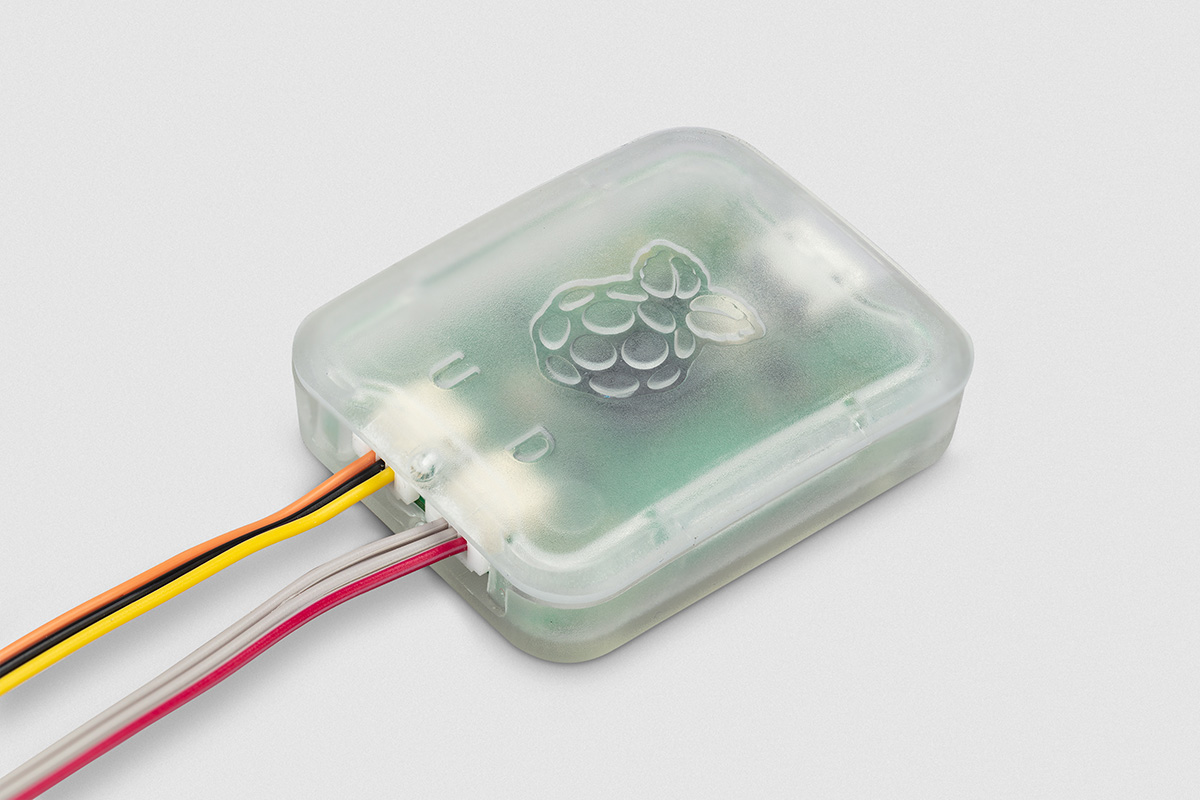

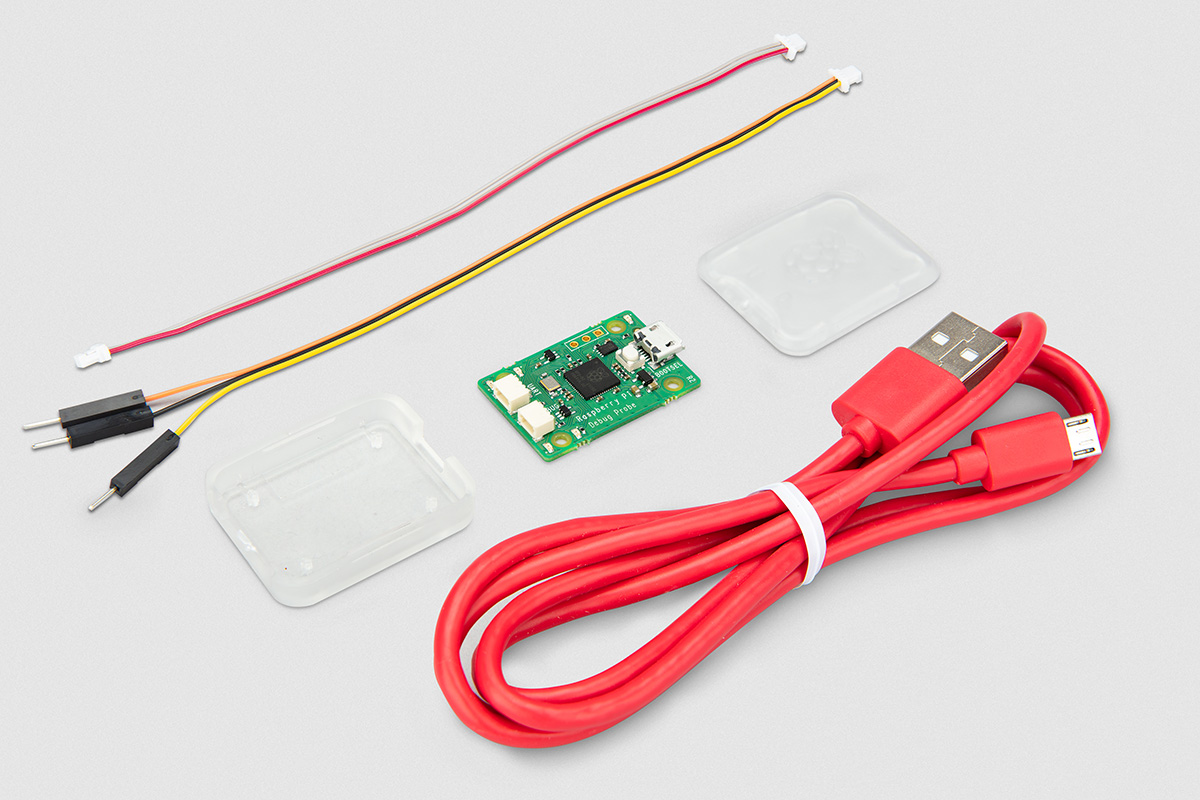

The Raspberry Pi Debug Probe is an all-in-one USB-to-debug kit that provides all the necessary hardware and cables for easy, solderless, plug-and-play debugging. It features both a processor serial debug interface (by default the Arm Serial Wire Debug interface, but other interfaces can be supported) and an industry-standard UART interface. Both interfaces use the Raspberry Pi 3-pin debug connector, as detailed in the Raspberry Pi 3-pin Debug Connector Specification (see rptl.io/debug-spec). The Raspberry Pi Debug Probe is presented as a kit, packaged in a reusable box, comprising the Debug Probe hardware in its own plastic case together with a USB cable and three types of debug cable, covering the vast majority of debug use cases. It is designed to make it easy to debug and program Raspberry Pi Pico and RP2040 with a range of host platforms including Windows, Mac, and typical Linux computers. While designed for use with Raspberry Pi products, the Debug Probe provides standard UART and CMSIS-DAP interfaces over USB, so it can also be used with other processors, or even just as a USB-to-UART cable. It works with OpenOCD and other tools that support CMSIS-DAP. The Debug Probe is based on Raspberry Pi Pico hardware and runs the open source Raspberry Pi Picoprobe software (https://github.com/raspberrypi/picoprobe).

The firmware is updated in the same way as Raspberry Pi Pico firmware, so it is easy to keep the unit up to date with the latest firmware, or to use custom firmware.

Documentation

Debug connector specifications

Raspberry Pi PicoProbe software on GitHub



Additional information

BRAND

Raspberry Pi

MAINBOARD

Raspberry Pi Pico
