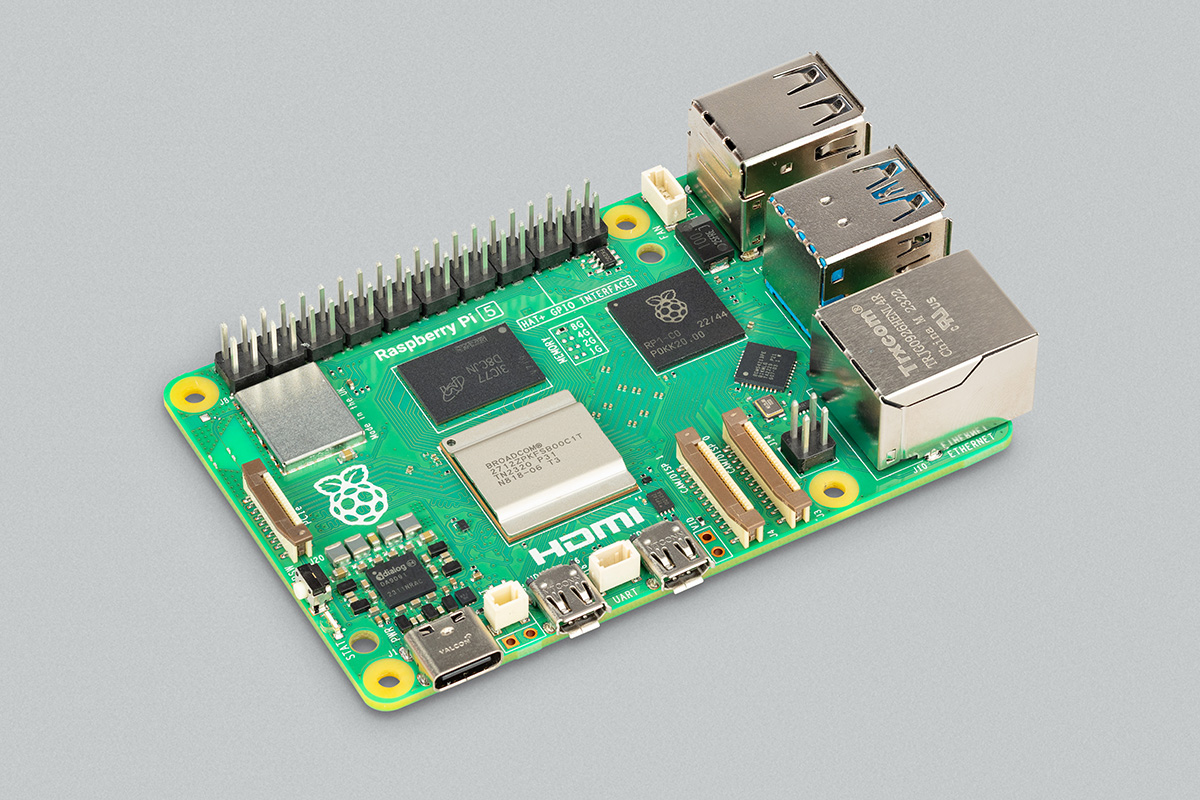

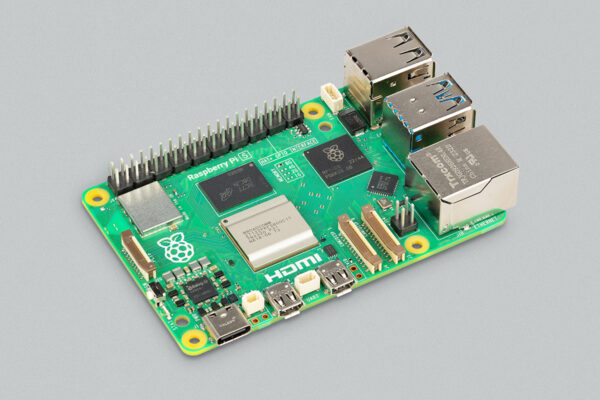

Raspberry Pi 5 8GB RAM

Description

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers. For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

Specification

Processor Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache

Features:

• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2

• Dual 4Kp60 HDMI® display output with HDR support

• 4Kp60 HEVC decoder

• LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch)

• Dual-band 802.11ac Wi-Fi® • Bluetooth 5.0 / Bluetooth Low Energy (BLE)

• microSD card slot, with support for high-speed SDR104 mode • 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

• 2 × USB 2.0 ports

• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

• 2 × 4-lane MIPI camera/display transceivers

• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)

• 5V/5A DC power via USB-C, with Power Delivery support

• Raspberry Pi standard 40-pin header • Real-time clock (RTC), powered from external battery

• Power button

Production lifetime: Raspberry Pi 5 will remain in production until at least January 2035

Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com

Additional information

BRAND	Raspberry Pi
MAINBOARD	Raspberry Pi 5
FEATURES	8GB RAM, WIFI
