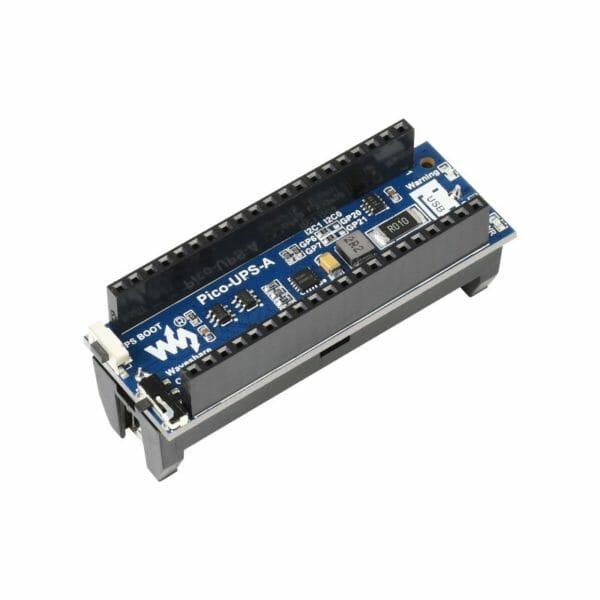

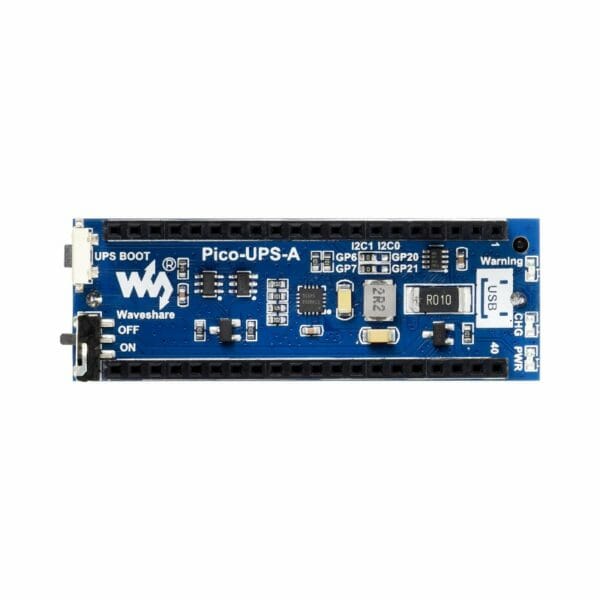

UPS Module For Raspberry Pi Pico, Uninterruptible Power Supply

FEATURES AT A GLANCE

The Pico-UPS-A is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi Pico. It incorporates Li-ion battery switching charger with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus.

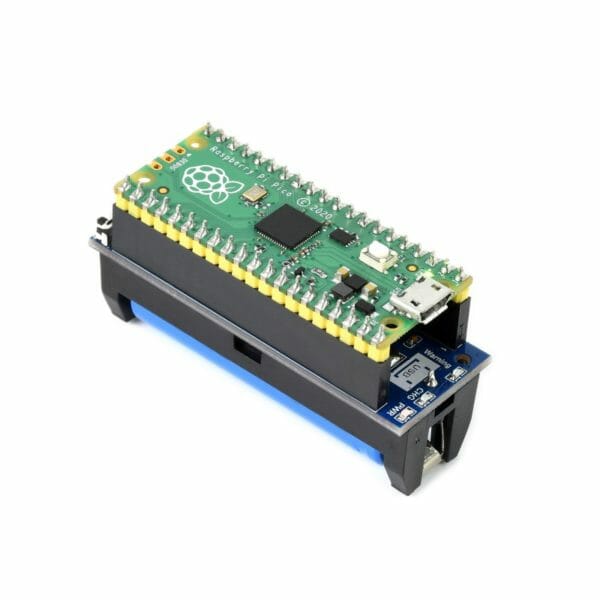

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Incorporates Li-ion battery switching charger with dynamic power path management, more stable power supply
  • I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
  • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
  • Onboard recharging indicator, power indicator, and battery warning indicator to check if the battery is connected correctly
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Documents

Demo codes

PINOUT

Informazioni aggiuntive

Brand

Waveshare
