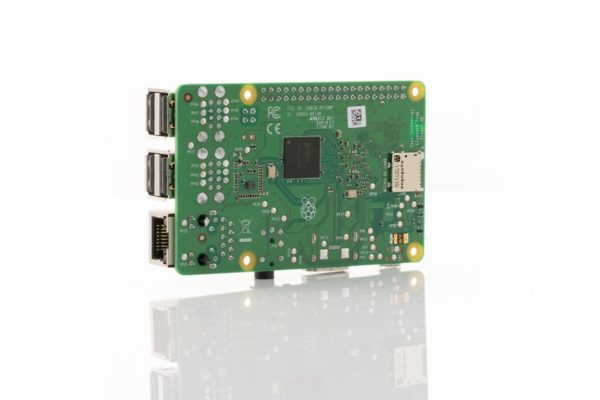

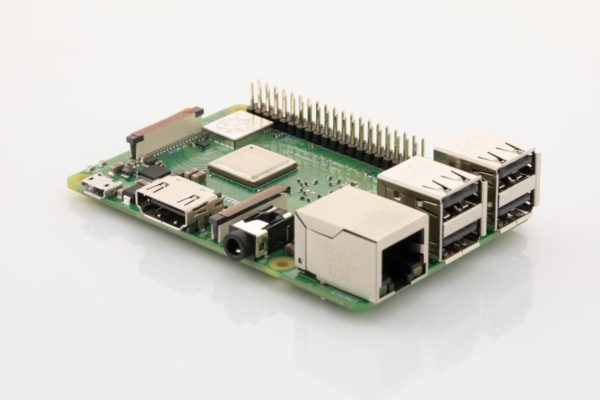

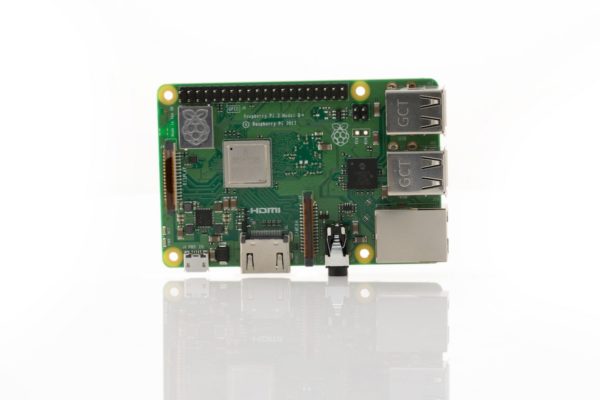

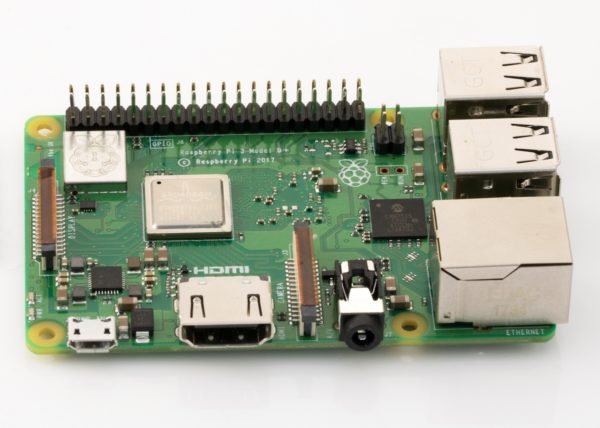

Raspberry Pi 3 Model B +

Descrizione

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

Processor:

Broadcom BCM2837B0, Cortex-A53
64-bit SoC @ 1.4GHz

Memory:

1GB LPDDR2 SDRAM

Connectivity:

2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless
LAN, Bluetooth 4.2, BLE
Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
4 x USB 2.0 ports

Access:

Extended 40-pin GPIO header

Video and sound:
1 x full size HDMI
MIPI DSI display port
MIPI CSI camera port
4 pole stereo output and composite video port

Multimedia:

H.264, MPEG-4 decode (1080p30); H.264 encode
(1080p30); OpenGL ES 1.1, 2.0 graphics

SD card support:

Micro SD format for loading operating system and data storage

Input power:

5V/2.5A DC via micro USB connector
5V DC via GPIO header
Power over Ethernet (PoE)–enabled (requires separate PoE HAT)

Environment:

Operating temperature, 0–50°C

Production lifetime:

The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.

Warnings:

This product should only be connected to an external power supply rated at 5V/2.5 A DC. Any external power supply used with the Raspberry Pi 3 Model B+ shall comply with relevant regulations and standards applicable in the country of intended use.
