SparkFun Proto Pedal

SparkFun Proto Pedal

16,61

Disponibile

16,61

Disponibilità: 1 disponibili COD: PRT-13124 Categoria:
Visualizza carrello

Descrizione

The SparkFun Proto Pedal is an easy-to-assemble kit that makes building guitar effect pedals easier. Let’s face it, most guitar pedals start with all-too-similar circuitry – you need the input and output jacks, the bypass switch, and a barrel jack for power input. In some pedals, there may be as much wiring involved in the jacks and switch as there is in the effect itself. The SparkFun Proto Pedal takes care of the hard part and provides you with a simple infrastructure; all you need to do is decide what simple circuit to make to gain your desired effect, and you’ll be ready to rock!

With the SparkFun Proto Pedal you’ll find all the problems of a guitar pedal’s complex framework solved with true bypass and LED switching; a large, open prototyping area equivalent to a standard solderless breadboard; a small prototyping area for power regulation or reference voltages; and six positions to help organize potentiometer wiring. To make your life even easier, not only have we written a completeassembly guide for the Proto Pedal; we have also written two effect circuit guides that utilize the board’s large prototyping area. All of these guides can be found in the Documents section below.

Each Proto Pedal comes as an easy-to-assemble PTH soldering kit, and it’s up to you to solder it all together! Additionally, we highly recommend using the Proto Pedal Enclosure with this kit. It’s a standard-size cast aluminum box, which does double duty as an assembly jig to help get the jacks and switch aligned correctly. We did NOT include the enclosure with the Proto Pedal to help keep the kit affordable – and in case you already had an enclosure you wanted to use or create yourself.

GET STARTED WITH THE PROTO PEDAL ASSEMBLY GUIDE

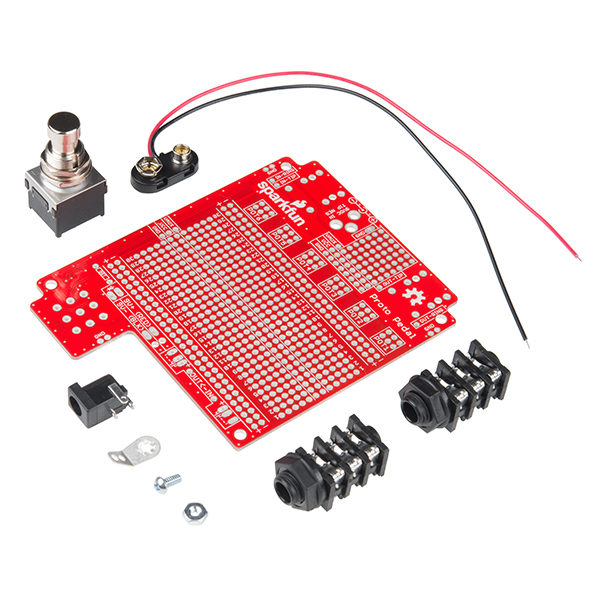

Kit Includes:

1x SparkFun Proto Pedal PCB (with SMT work completed)
1x Stomp Switch
2x Stereo Audio Jack – ¼”
1x 9 Volt Battery Snap
1x DC Barrel Power Jack/Connector
1x Each 4-40 Nut, Machine Screw, & Star Washer Ground Lug

Documents:

Schematic
Eagle Files
Assembly & Theory Guide
Analog Equalizer Circuit
Programmable Digital Pedal Circuit
Proto Pedal Chassis Hookup
GitHub

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

PRT-13124

Brand

Sparkfun
