Multi-Chassis – 4WD Kit (Basic)

Multi-Chassis – 4WD Kit (Basic)

35,01

Disponibile

35,01

Disponibilità: 1 disponibili COD: ROB-12089-C3 Categorie: ,
Visualizza carrello

Descrizione

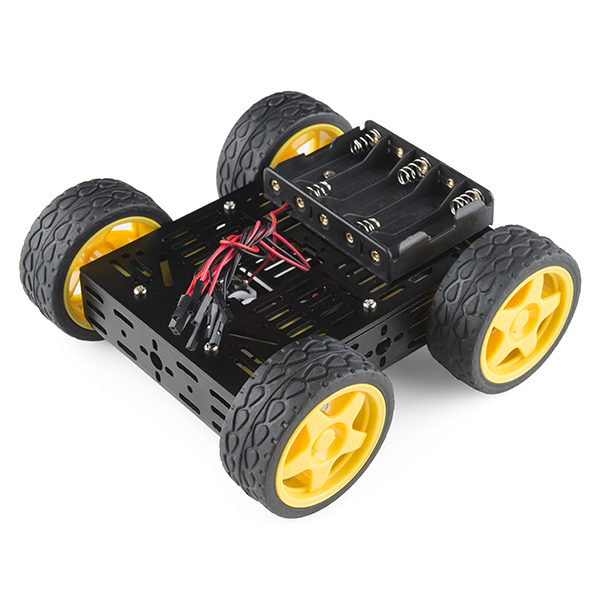

This is the Multi-Chassis Basic 4WD Kit, an easy to assemble and use robot chassis platform. The Multi-Chassis kit provides you with everything you need to give your robot a fast four wheel drive platform with plenty of room for expansion to add various sensors and controllers. All you need to do is supply is a basic motor driver and power and you’ll be ready to drive!

This Multi-Chassis Basic 4WD Kit includes four 48:1 DC gearboxes that independently drive each of the 65mm low-profile wheels. Each side of the 2.5mm thick aluminum frame comes cut with plenty of attachment points to add a multitude of different robot controllers, drivers, and sensors.

Note: A building instruction booklet with a complete list of items included is inside this kit and in the documents section below. This comes as a kit but includes all the hardware and tools necessary for assembly.

Dimensions:

Completed Kit Size – 165L x 157W x 65H mm
Wheel Diameter – 65 mm

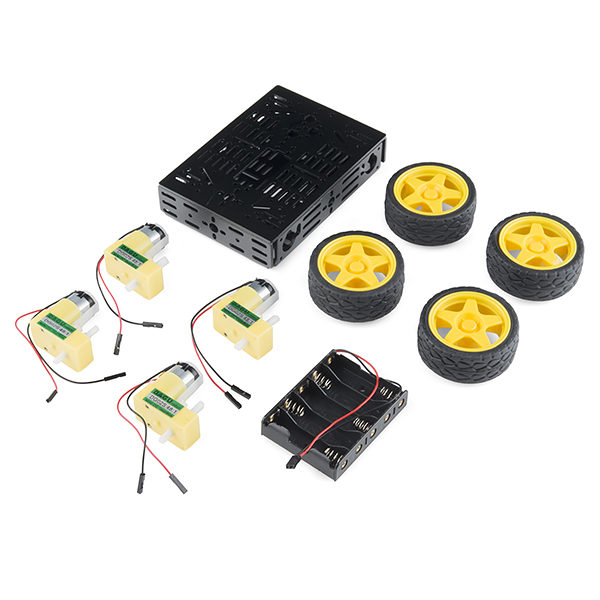

Kit Includes:

1x Aluminum Frame
4x 65 mm Diameter 48:1 DC Gearbox
4x Low-Profile Wheel
4x M3 25mm Standoff
6x M3 8mm Screw
4x M2.5 25mm Screw
4x 2.5 20mm Screw
8x M3 8mm Screw
8x M2.5 Nut
2x M3 Nut
1x 5 AA Battery Holder
1x Spanner
1x Screw Driver

Documents:

Datasheet (DG02S Gearbox)
Instruction Booklet
Product Video

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

ROB-12089-C3

Brand

Sparkfun
