Breadboard – Self-Adhesive (White)

Breadboard – Self-Adhesive (White)

3,20

Out of stock

3,20

Availability: Out of stock SKU: PRT-12002-EA64 Categories: ,

Informami quando l'articolo è disponibile.

Description

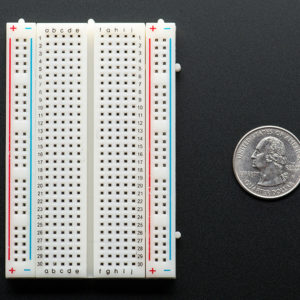

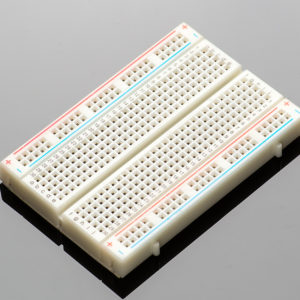

This is your tried and true white solderless breadboard. It has 2 power buses, 10 columns, and 30 rows – a total of 400 tie in points. All pins are spaced by a standard 0.1″. The two sets of five columns are separated by about 0.3″, perfect for straddling a DIP package over. The board accepts wire sizes in the range of 29-20AWG.

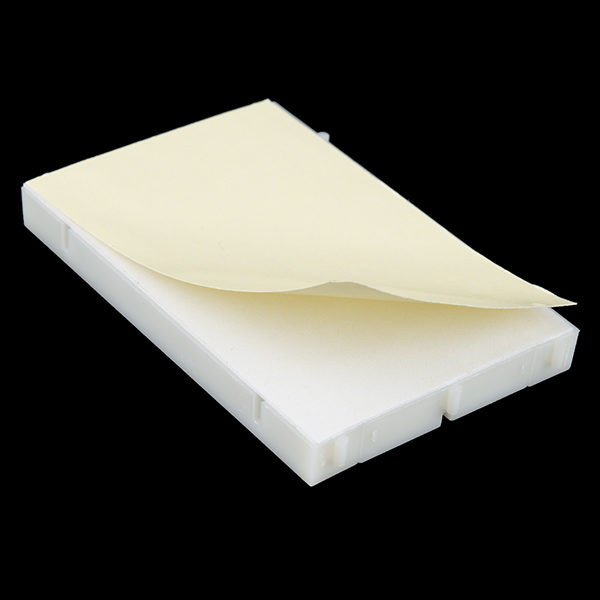

This board also has a self-adhesive on the back. The boards also have interlocking parts, so you can hook as many together as you’d like.

Dimensions: 3.29 x 2.15 x 0.33″ (83.5 x 54.5 x 8.5mm)

Documents:

Datasheet

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

PRT-12002-PT0-EA64

Brand

Sparkfun
