Panel Mount 1K potentiometer (Breadboard Friendly) – 1K Linear

Panel Mount 1K potentiometer (Breadboard Friendly) – 1K Linear

1,25

Disponibile

1,25

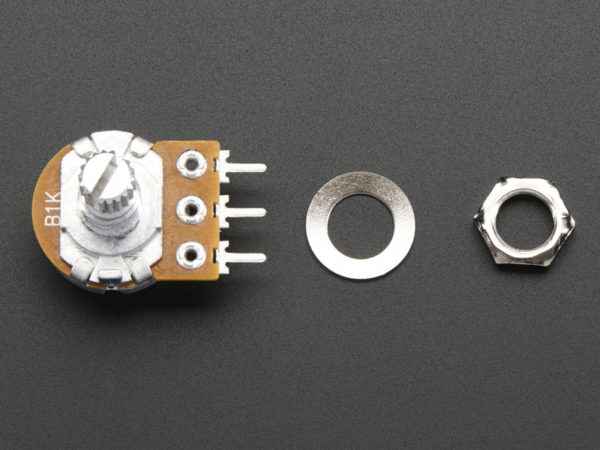

Potenziometro lineare da 1 KOhm +dado +rondella. Breadboard friendly. Montabile su pannello.

Disponibile:: 5 disponibili COD: AD1789 Categorie: ,
Visualizza carrello

Descrizione

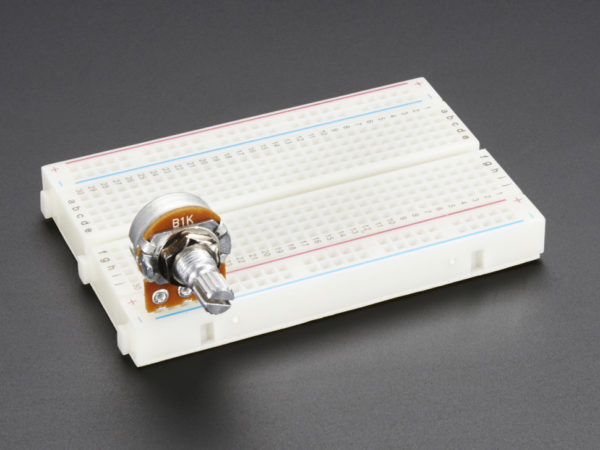

This 1K potentiometer is a two-in-one, good in a breadboard or with a panel. Its a fairly standard linear taper 1K ohm potentiometer, with a grippy shaft. Its smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2″ apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.



1K ohm potentiometer, linear taper
100,000 Cycle Life
Power: 0.2W
Rotational travel: 300 °
Static Stop Strength: 90 oz-in
Rotational Torque: 0.5 to 1.25 oz-in

Dimensions:



Body: 16mm
Height: 24mm
Weight: 6g

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

Board
MPN

AD1789

Brand

Adafruit
