7-Segment Display – LED (Blue)

7-Segment Display – LED (Blue)

1,54

Disponibile

1,54

Disponibile: 2 disponibili COD: COM-09191 Categorie: ,
Visualizza carrello

Descrizione

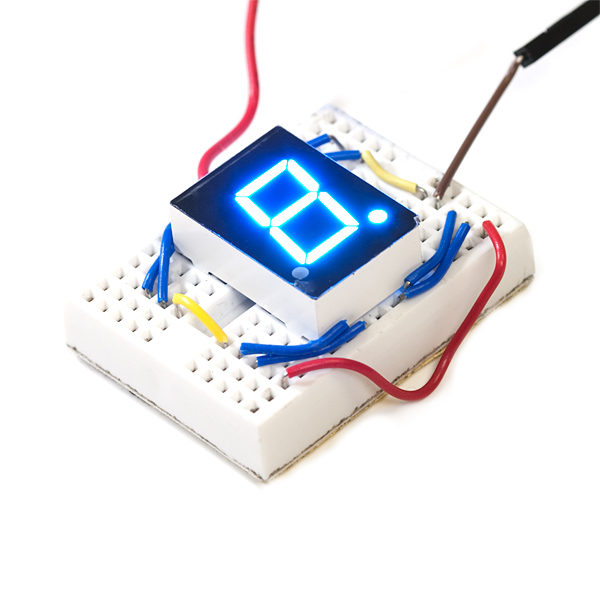

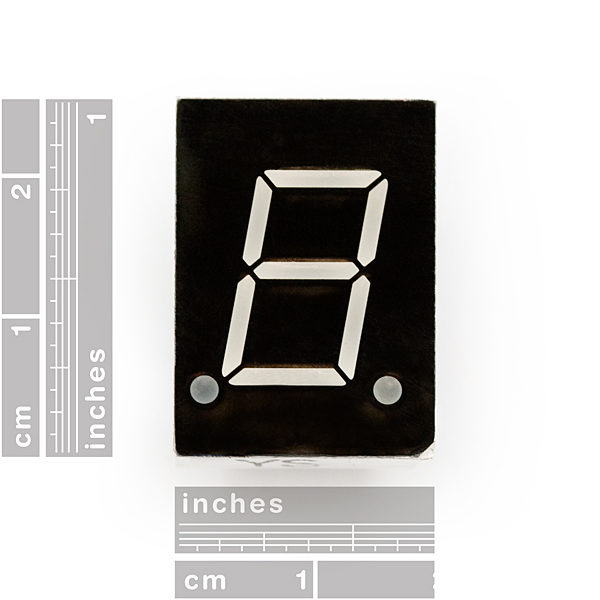

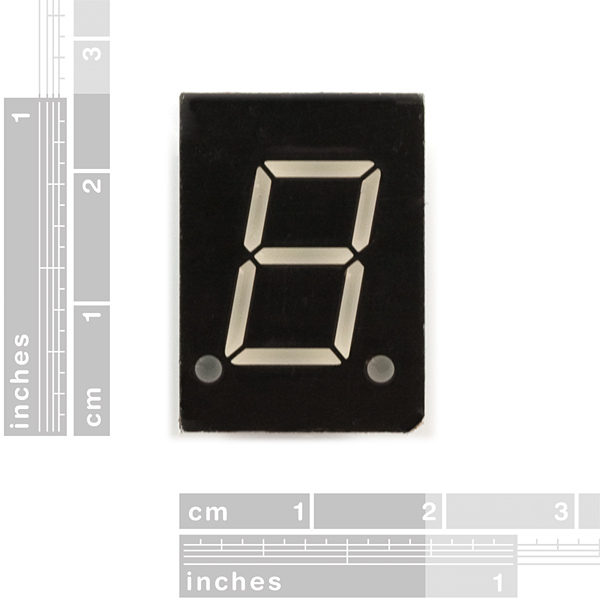

Your basic 7-segment LED, but in blue! Common anode. Two decimal points, but only the one on the right is wired. Digit height is 0.6″. Overall height is 1″.

Check out this tutorial on how to use this product with the 74HC595 Shift Register and Arduino. Thanks Patrick and Mycha!

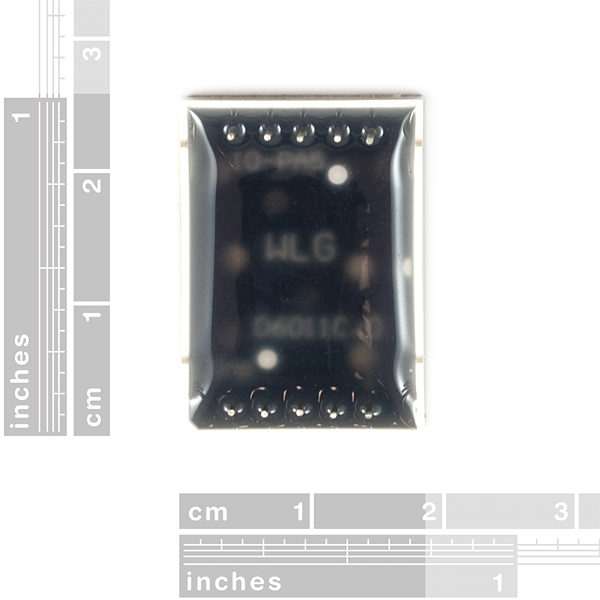

Note: As far as we can tell the pinout in the datasheet is incorrect. This is the correct pin-out:

1: E
10: G

2: D
9: F

3: Common Anode
8: Common Anode

4: C
7: A

5: DP
6: B

Documents:

Datasheet
Arduino Library (Thanks Quin!)

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

COM-09191

Brand

Sparkfun
