7-Segment Display – 20mm (Yellow)

7-Segment Display – 20mm (Yellow)

1,52

Esaurito

1,52

Versione disponibile:: Esaurito COD: COM-11406 Categorie: ,

Informami quando l'articolo è disponibile.

Descrizione

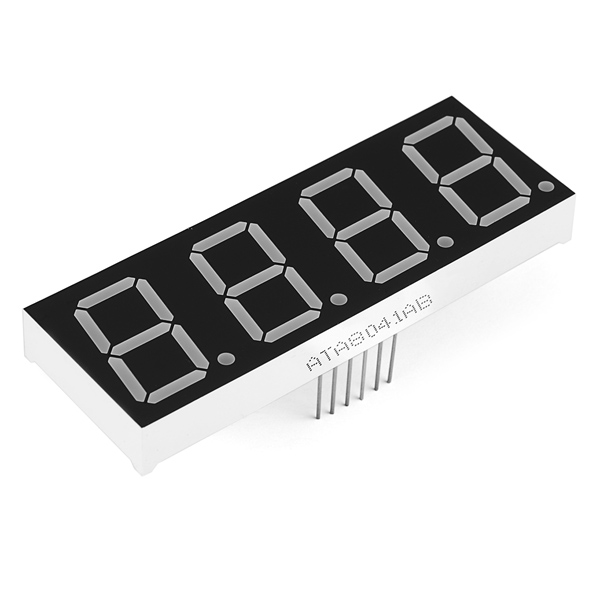

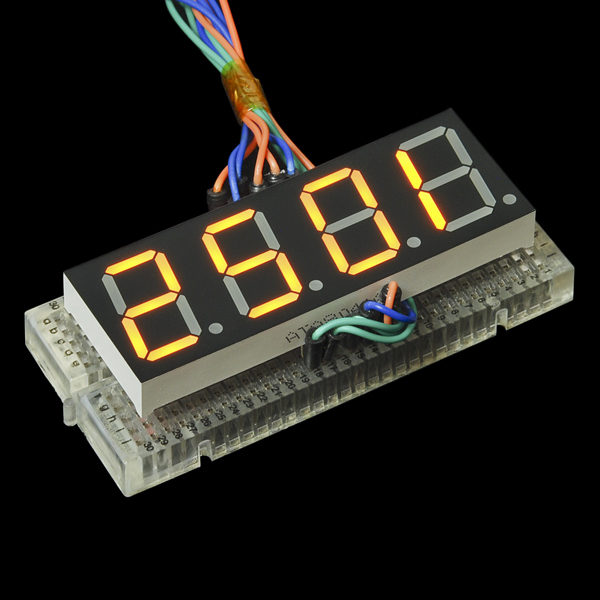

For a long time we’ve had small 7-segment displays andhuge 7-segment displays, but now we finally have something in between. These 20mm 4-digit 7-segment displays are big enough to see from a distance but not so big that you’d have trouble finding an enclosure for them.

These common-cathode displays feature 4 x 7-segment digits and one decimal point per digit. The LEDs have a forward voltage of 1.9VDC and a max forward current of 20mA.

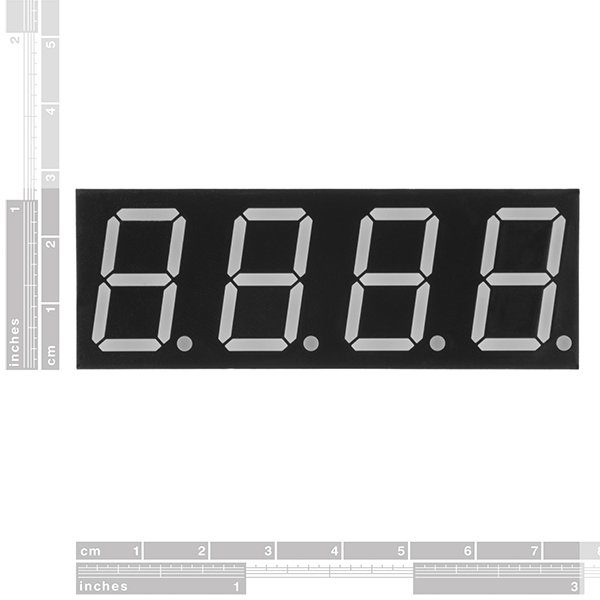

Dimensions: 71.6 x 25.7mm

Documents:

Datasheet

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

COM-11406

Brand

Sparkfun
