IR distance sensor includes cable (20cm-150cm) - GP2Y0A02YK

IR distance sensor includes cable (20cm-150cm) - GP2Y0A02YK


In stock


Availability: 1 in stock SKU: AD1031 Categories: ,

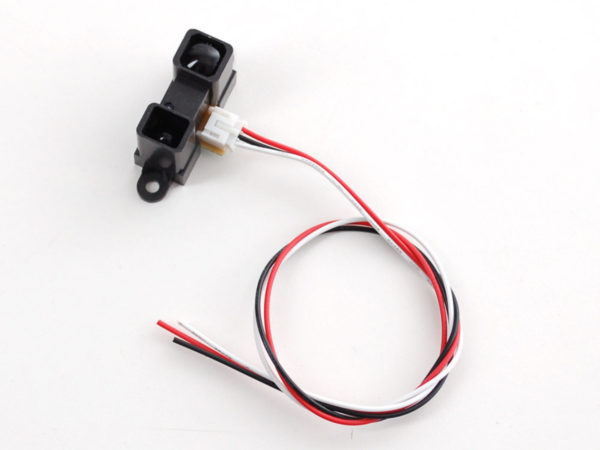

This SHARP distance sensor bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. Comes with 12 ″ long 3-JST interface wire. These sensors are good for detection between 20cm-150cm. For over 1 m distance, we suggest using sonar sensors.

To use, connect black wire to ground, red wire to 5V and white wire to analog input. The analog voltage out will range from 3V when an object is only 4 ″ (10 cm) away and 0.4V when the object is 32 ″ (80 cm) away.

For more information, please see the datasheet!


Length: 21.66mm / 0.85in
Width: 44.39mm / 1.75in
Height: 18.67mm / 0.75in
Weight: 5.06g without cable / 7.88g with cable

Screw holes are 37mm apart, diameter.

NETduino driver code

Product information

Weight 0,05 kg.
Length 5x1x3 cm
