Long Flex/Bend sensor

Long Flex/Bend sensor

16,73

In stock

16,73

Sensore di flessione. In posizione normale ha una resistenza di circa 10KOhm. Durante la flessione la resistenza aumenta fino a circa 20KOhm. Lunghezza 112.5mm, larghezza 6.38mm, spessore 0.5mm

Availability: 1 disponibili COD: AD182-G7 Categorie: ,
Visualizza carrello

Descrizione

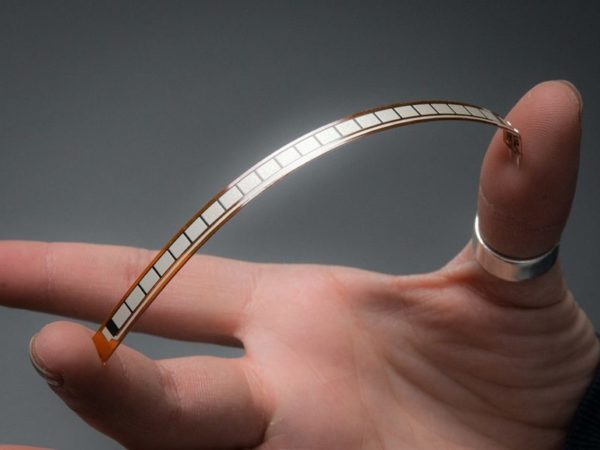

This sensor can detect bending in one direction. They were popularized by being used in the Nintendo PowerGlove as a gaming interface.

These sensors are easy to use, they are basically resistors that change value based on how much their flexed. If they’re unflexed, the resistance is about ~10K?. When flexed all the way the resistance rises to ~20K?. They’re pretty similar to FSRs so following this tutorial will get you started. You can use an analog input on a microcontroller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.

The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief – such as clamping or gluing that part so as not to rip out the contacts!

Dimensions:

Length: 112.5mm/4.4in
Width: 6.38mm/0.25in
Thickness: 0.5mm/0.2in
Weight: 0.5g/0.017g

Downloads:

Datasheet from SpectraSymbol

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Brand

Adafruit
