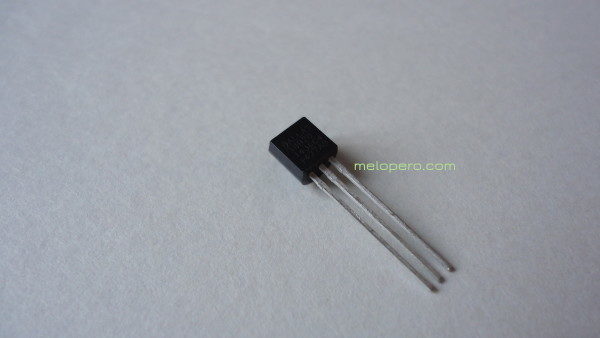

DS18B20 Sensore di temperatura digitale extra

DS18B20 Sensore di temperatura digitale extra


In stock


Risoluzione impostabile da 9-bit a 12-bit, funzione allarme per temperature max e min programmabile su memoria non volatile integrata, range di temperature -55°C to +125°C e accuratezza ±0.5°C tra -10°C e +85°C. Viene alimentato direttamente dalla linea dati. Ogni dispositivo ha un codice seriale univoco di 64-bit memorizzato in fabbrica. Include un resistore da 4.7k necessario come pull-up per la linea dati.

Availability: 4 in stock SKU: EA374 Categories: ,
View basket


The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user- programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of -55°C to +125°C and is accurate to ±0.5°C over the range of -10°C to +85°C. In addition, the DS18B20 can derive power directly from the data line (?parasite power?), eliminating the need for an external power supply.

Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area.

For use with an Arduino you need to download the Dallas Temperature Control Arduino library and the OneWire Library.

Unique 1-Wire® Interface Requires Only One Port Pin for Communication

Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM
Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
Requires No External Components
Can Be Powered from Data Line; Power Supply Range is 3.0V to 5.5V
Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
±0.5°C Accuracy from -10°C to +85°C
Thermometer Resolution is User Selectable from 9 to 12 Bits
Converts Temperature to 12-Bit Digital Word in 750ms (Max)


Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
