This is a Raspberry Pi GNSS HAT based on MAX-7Q, which supports positioning systems including GPS, GLONASS, QZSS, and SBAS. It features accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming, and so on.

Features At A Glance
  • Supports GPS/QZSS, GLONASS positioning systems
  • A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
  • Outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing
  • Supports U-Center, an easy way to config the module
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Onboard USB TO UART converter CP2102 for serial debugging
  • Breakouts the module’s UART and I2C interface, for connecting with host boards like Arduino/STM32
  • Baudrate range: 4800~921600bps (9600bps by default)
  • Supports DDC (I2C compliant) interface: up to 400KHz (max)
  • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • 4x LEDs for indicating the module operating status
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Standard Raspberry Pi 40PIN GPIO

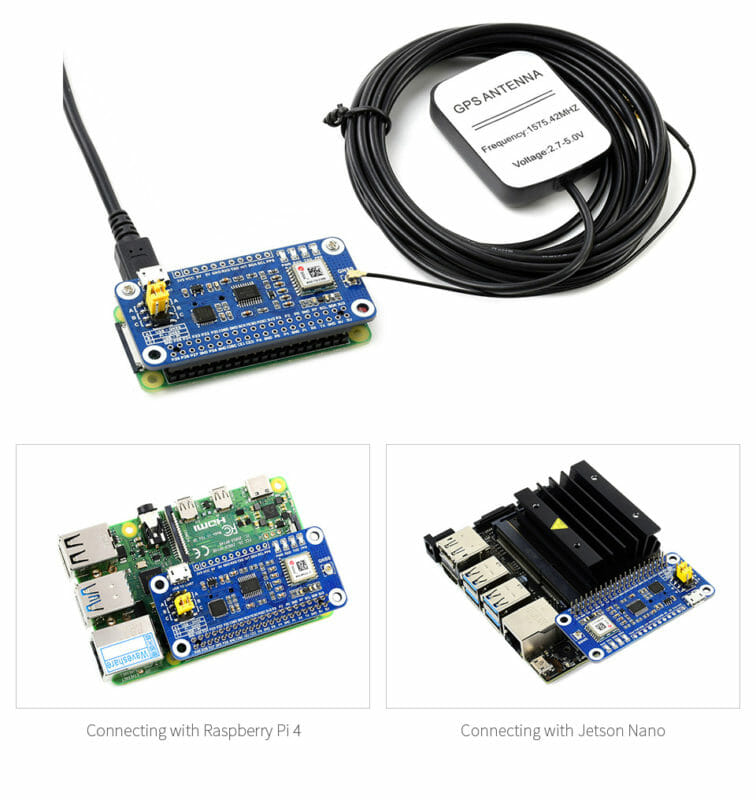

Compatible With Raspberry Pi Series Boards, Jetson Nano

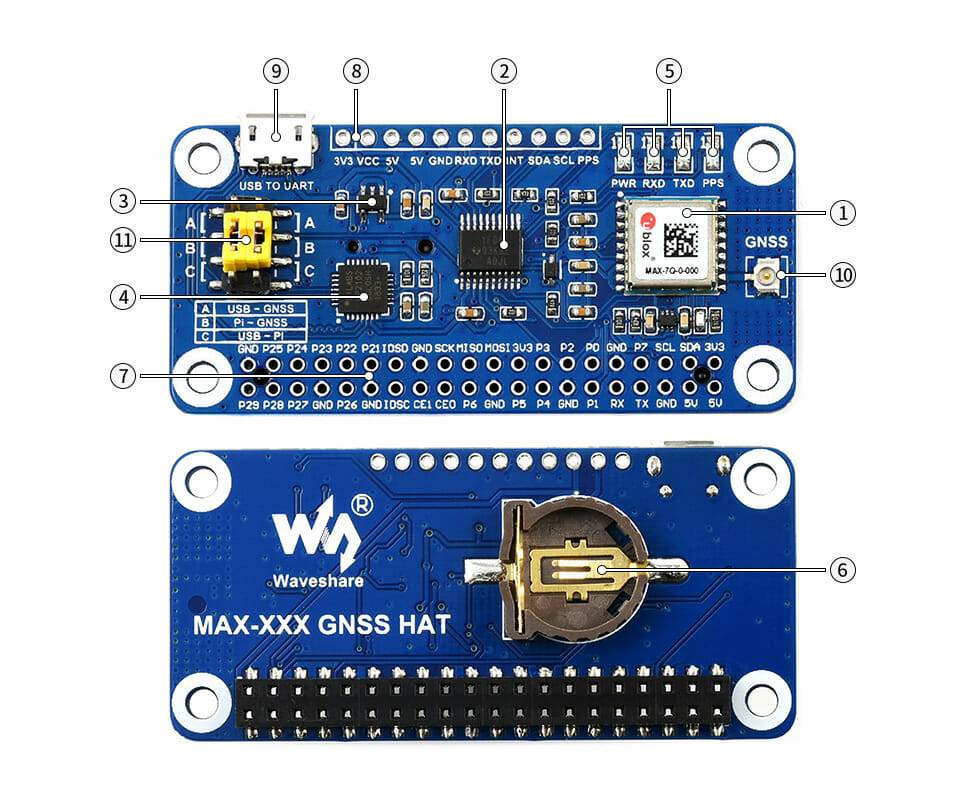

What’s On Board

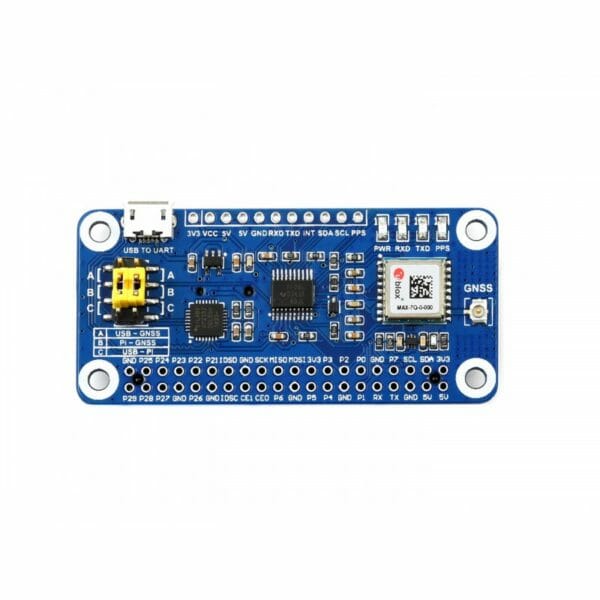

  1. MAX-7Q module
  2. TXS0108EPWR voltage translator
  3. RT9193-33 power chip
  4. CP2102 USB TO UART converter
  5. Status indicators
    RXD/TXD: UART TX/RX indicator
    PPS: GPS status indicator
    PWR: power indicator
  6. Battery holder
    supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  2. UART, I2C interface
    for connecting with other MCUs
  3. USB TO UART port
  4. GNSS antenna connector
  5. UART selection jumper
    A: control the MAX-7Q through USB TO UART
    B: control the MAX-7Q through Raspberry Pi
    C: access Raspberry Pi through USB TO UART

Pinout



Package Content

  1. MAX-7Q GNSS HAT x1
  2. GPS External Antenna (B) x1
  3. USB-A to Micro-B cable x1
  4. RPi screws pack (2pcs) x1
  5. 2x20PIN female header x1

Documents

Demo codes

Informazioni aggiuntive

Brand

Waveshare

Specifications
GNSS SPECIFICATIONS
MAX-7Q GPS GLONASS
Frequency band 56x u-blox 7 engine channels
GPS/QZSS L1C/A, GLONASS L1 FDMA, SBAS (WAAS, EGNOS, MSAS)
Horizontal positioning accuracy Autonomous 2.5m CEP 4.0m CEP
SBAS 2.0m CEP
Max navigation update rate 10Hz 10Hz
Time-To-First-Fix Cold starts 29s 30s
Warm starts 28s 25s
Hot starts 1s 1s
Aided starts 5s
Sensitivity Tracking and navigating -161 dBm -158 dBm
Re-acquisition -160 dBm -156 dBm
Cold starts -148 dBm -140 dBm
Warm starts -148 dBm -145 dBm
Hot starts -156 dBm -156 dBm
PPS accuracy RMS 30ns 50ns
99% 60ns 100ns
PPS frequency 0.25Hz…10MHz (configurable)
Velocity accuracy 0.1m/s
Heading accuracy 0.5 degree
Operational limits Acceleration (max): 4g
Altitude (max): 50000m
Velocity (max): 500m/s
OTHER SPECIFICATIONS
Communication interface UART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
Update rate 1Hz (default), 10Hz (max)
Protocol NMEA 0183 Version 2.3 (V3.0 compatible), UBX, RTCM 2.3
Power supply 5V
Overall current <37mA@5V (Continue mode)
Module current 17.5mA@3V (Continue mode, tracking status)
Operating temperature -40℃ ~ 85℃
Dimensions 65mm × 30.5mm
