Piezo Vibration Sensor – Large with Mass

Piezo Vibration Sensor – Large with Mass

3,71

Disponibile

3,71

Disponibile:: 1 disponibili COD: SEN-09197-i12 Categorie: ,
Visualizza carrello

Descrizione

This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

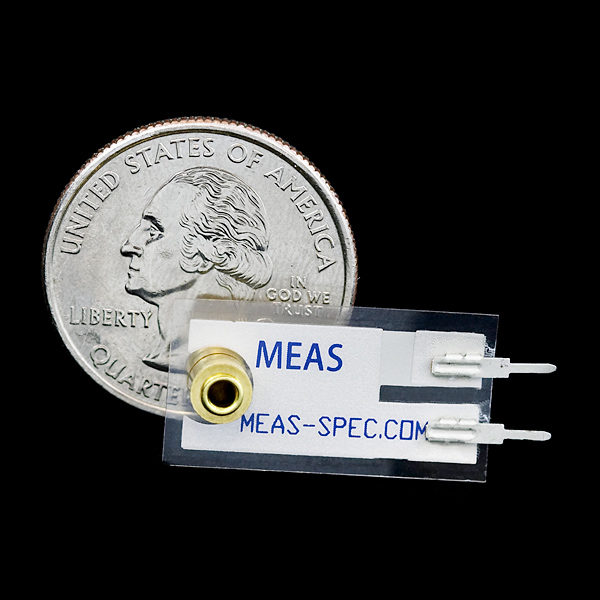

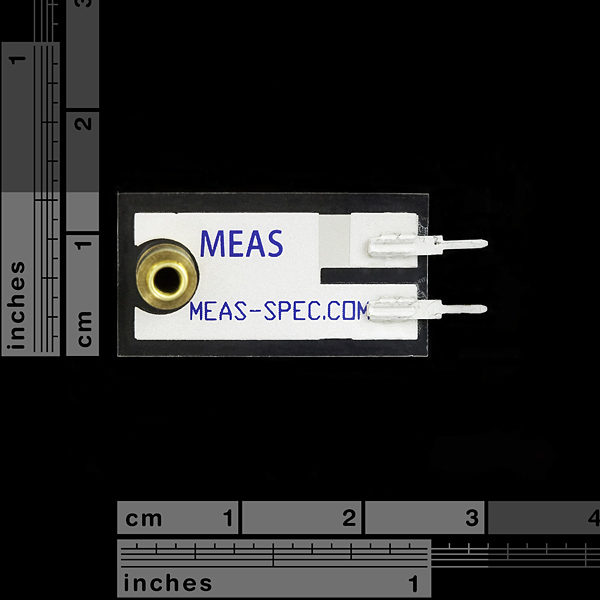

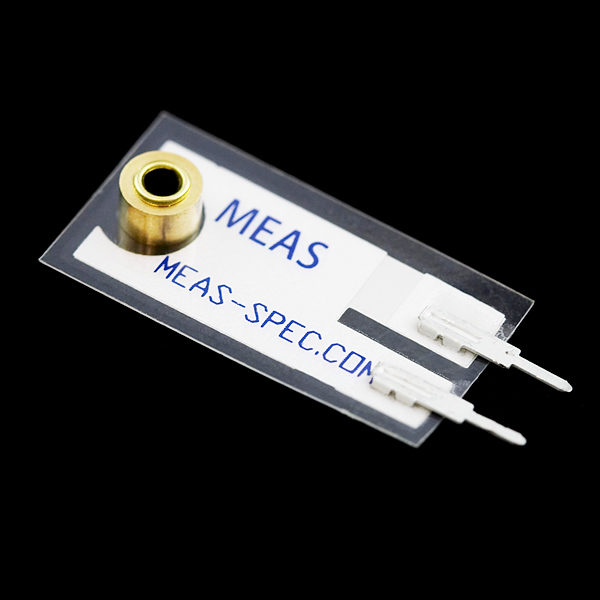

Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.

Features:

Flexible PVDF Piezo Polymer Film
Wide dynamic range
Laminated for higher voltage output
0.1″ breadboard friendly leads

Documents:

Datasheet (LDT0-028K)
Technical manual

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

Board
MPN

SEN-09197-i12

Brand

Sparkfun
