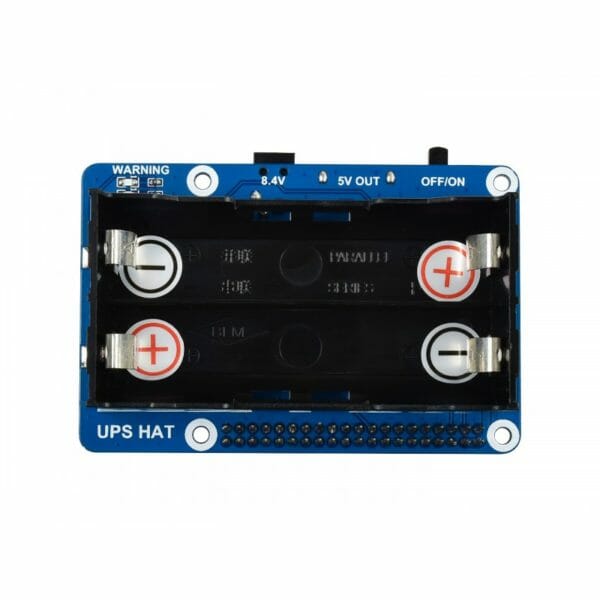

Uninterruptible EU Power Supply UPS HAT For Raspberry Pi, Stable 5V Power Output
20,34 €
Informami quando l'articolo è disponibile.
- Description
- Additional information
- Specifications
Description

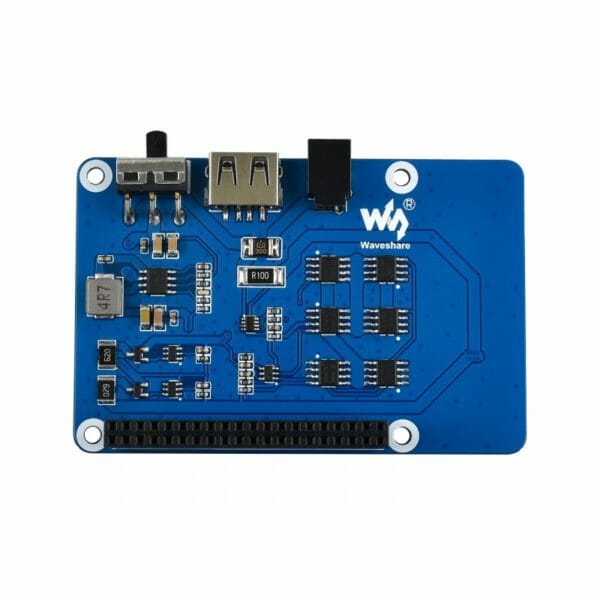

Uninterruptible Power Supply For Raspberry Pi
Power Your Pi Seamlessly From Power Connection OR The Backup Batteries
Charge and Power Output at the Same Time
Features At A Glance

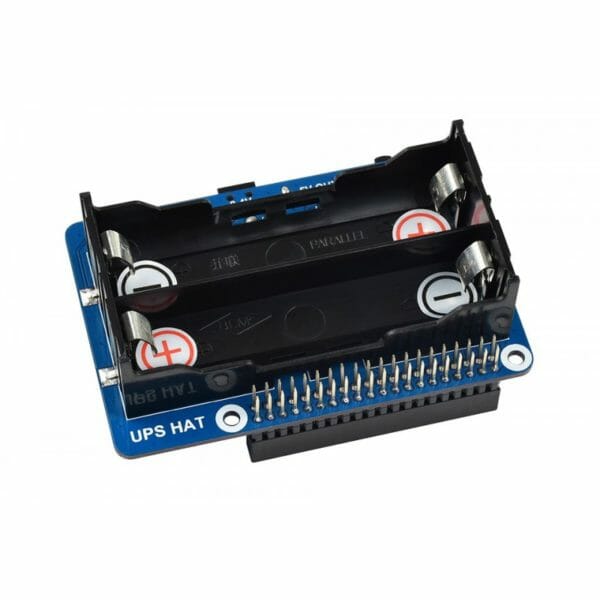

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

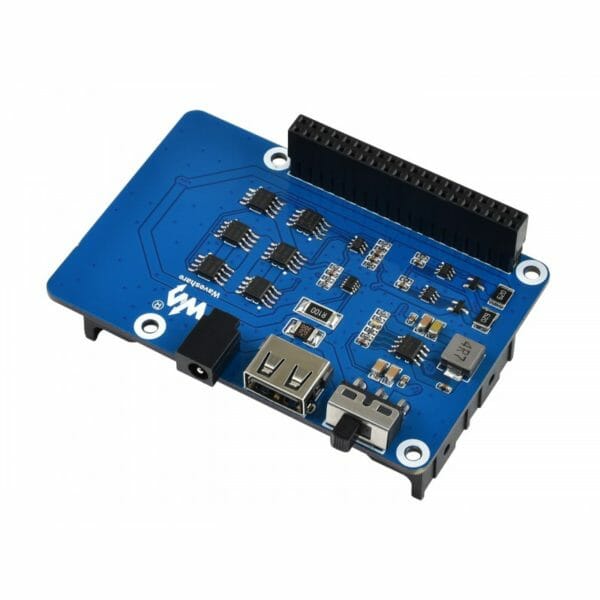

- Onboard 5V regulator, up to 2.5A continuous output current
- 5V USB output, convenient for powering other boards
- Batteries warning indicators, easy to check if the battery is connected correctly
- Comes with development resources and manual

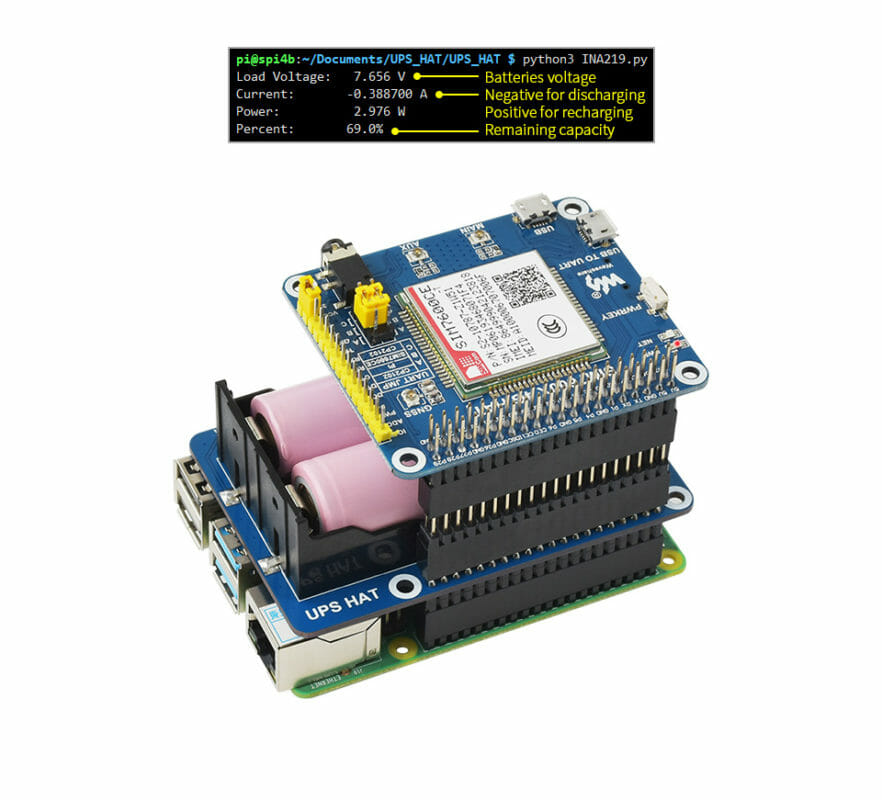

Real Time Monitoring
Monitoring The Batteries Voltage, Current, Power, And Remaining Capacity

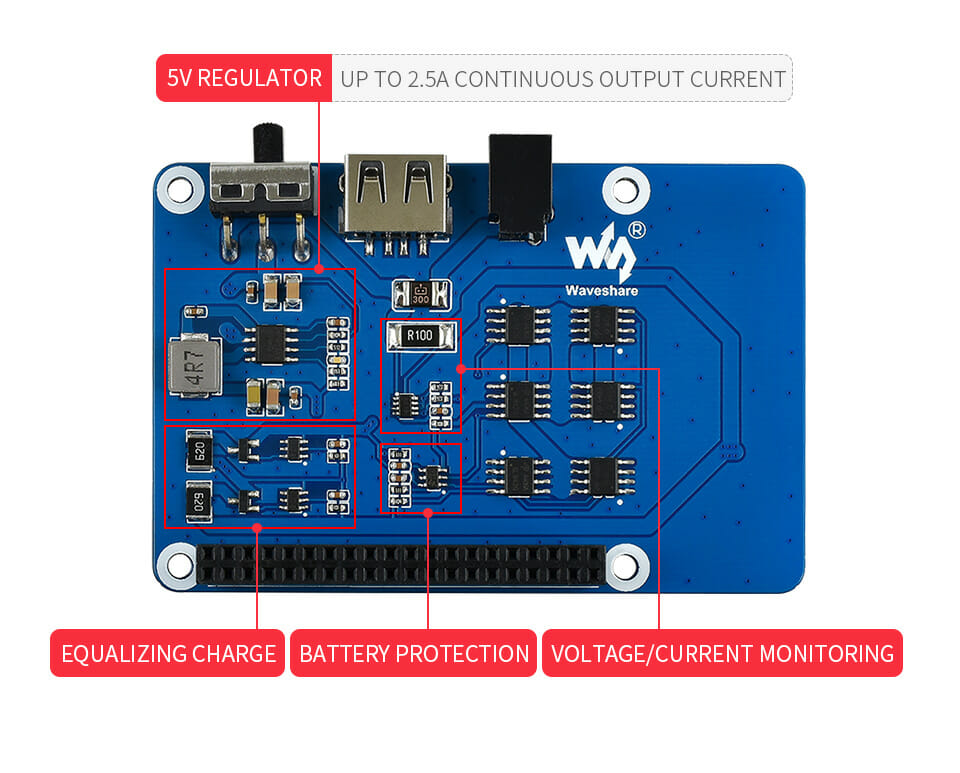

Safe And Stable Circuit Design
Protection Circuits For Over Charge/Discharge, Over Current, Short Circuit, And Reverse
Along With The Equalizing Charge Feature, More Safe And Stable

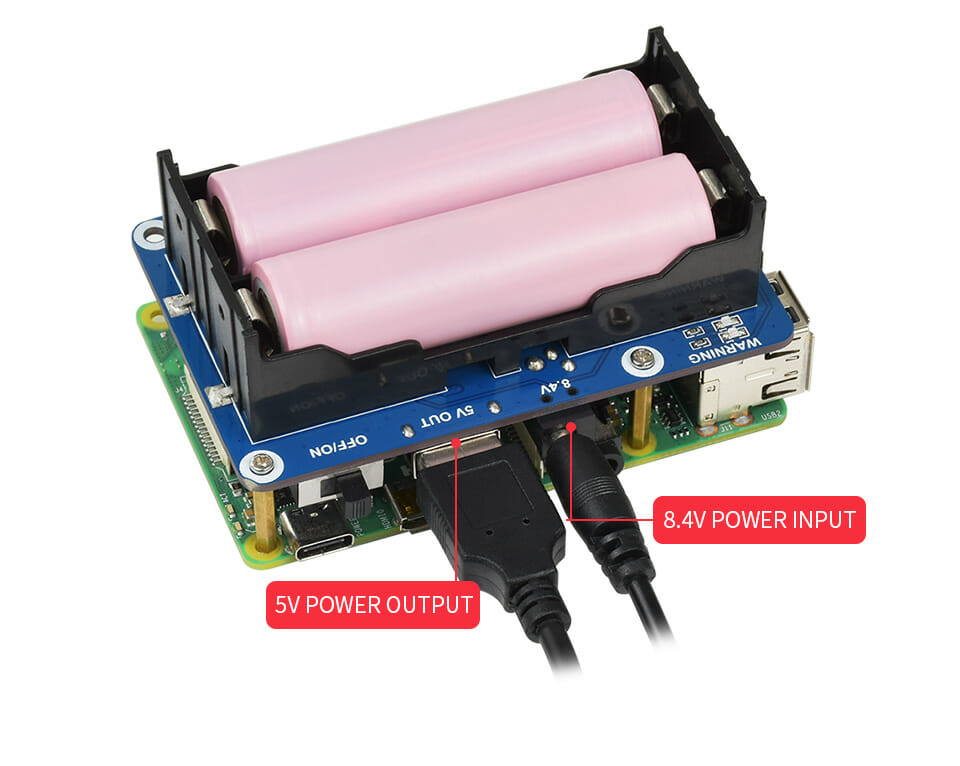

5V USB Output As Well
Convenient For Powering Other Boards

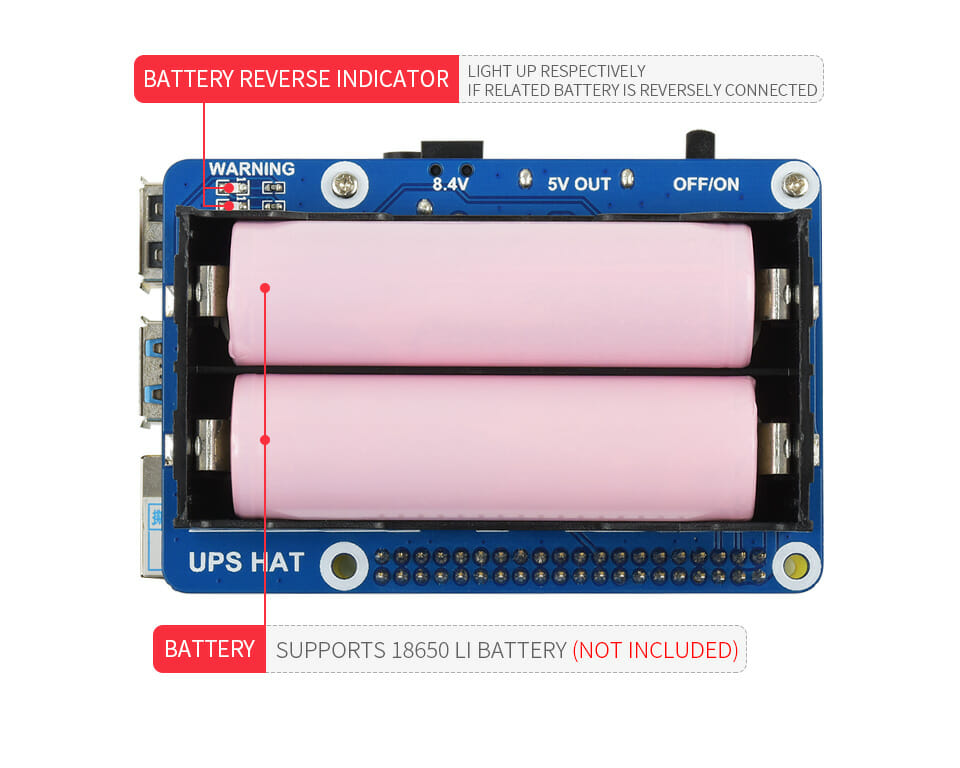

Battery Warning Indicators
Easy To Check If The Battery Is Connected Correctly

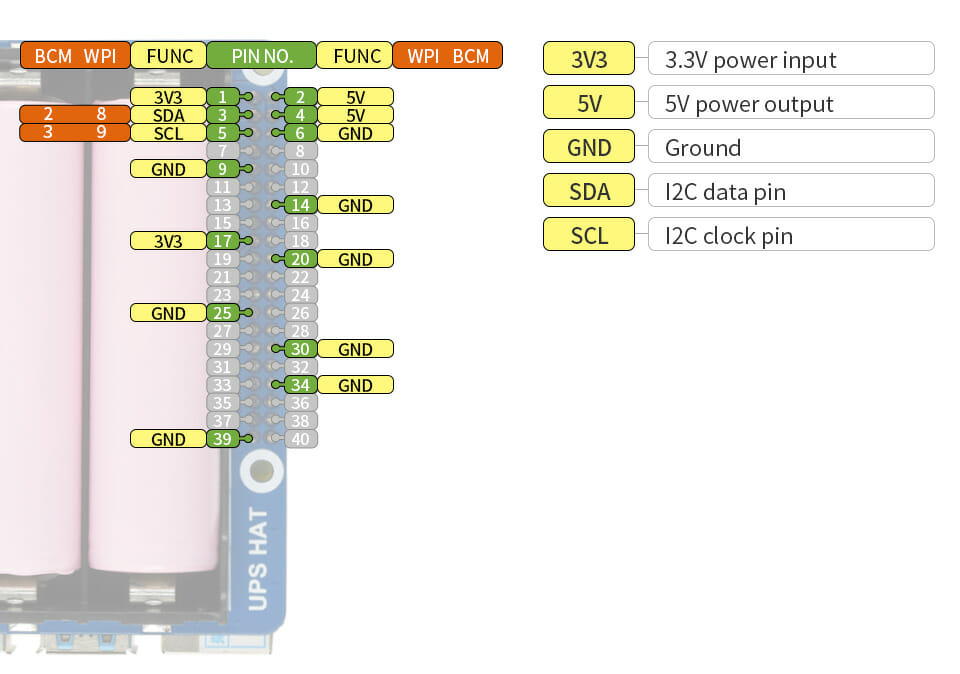

Pinout
Package Content
- UPS HAT x1
- 2×20PIN female header x1
- RPi screws pack (2pcs) x1
Warning:
- The 18650 batteries are NOT included
- Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported. Learn More
Resources
Demo codes
Document
Additional information
| BRAND | Waveshare |
|---|
Specifications
| OUTPUT VOLTAGE | 5V | CHARGER | 8.4V 2A |
|---|---|---|---|

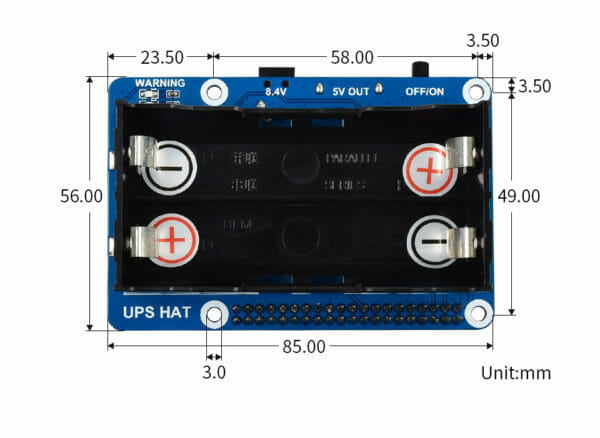

| CONTROL BUS | I2C | DIMENSIONS | 56 × 85mm |
| BATTERY SUPPORT | 18650 Li battery (NOT included) | MOUNTING HOLE SIZE | 3.0mm |
