Servo Driver Module for Raspberry Pi Pico, 16-ch Outputs, 16-bit Resolution

Servo Driver Module for Raspberry Pi Pico, 16-ch Outputs, 16-bit Resolution

11,30

In stock

11,30

Availability: 2 in stock SKU: WS-19767-PT0 Category: Tag:
View basket

Description

Servo Driver Module For Pico

Ideal For Controlling Robotic Arm Or Hexapod Walker

Features At A Glance
  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel
  • Integrates 5V regulator, up to 3A output current, allows battery power supply from the VIN terminal
  • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
  • Exposes unused pins of Pico, easy expansion
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE 5V (Pico) or 6~12V (VIN terminal) SERVO VOLTAGE LEVEL 5V
LOGIC LEVEL 3.3V CONTROL INTERFACE GPIO
MOUNTING HOLE SIZE 3.0mm DIMENSIONS 65 × 56mm
Raspberry Pi Pico Header Compatibility

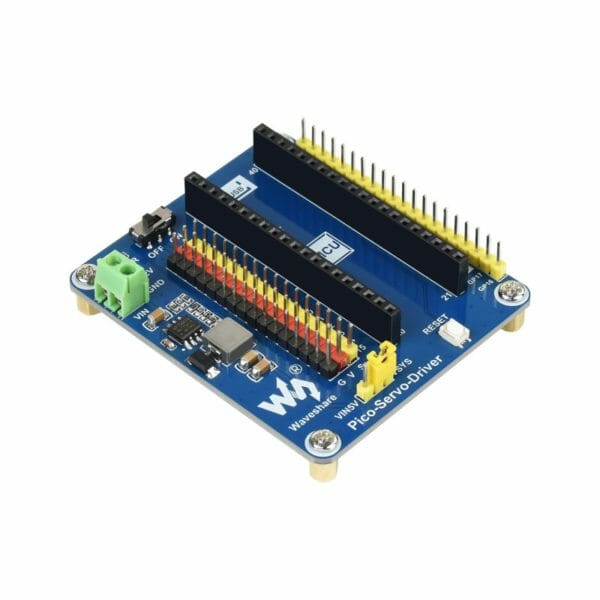

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Standard Servo Interface

Supports Common Used Servo Like: SG90MG90SMG996R

Onboard 5V Regulator

Flexible Power Options: Powered From Pico Directly,
Or From VIN Battery Input Terminal With Max 3A Current Output

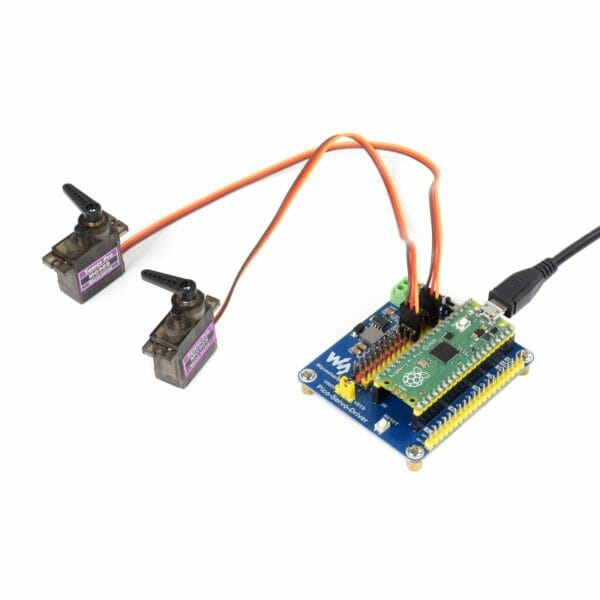

Application Example

Raspberry Pi Pico and servo are NOT included.

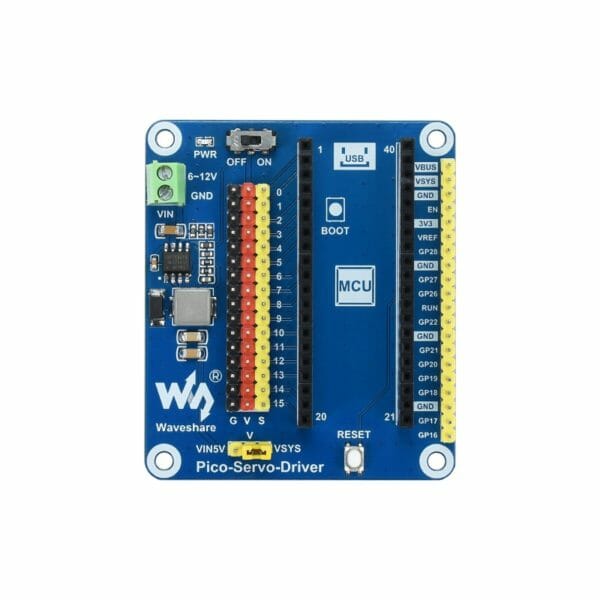

Pinout

Document:

Additional information

Brand

Waveshare
