SIM7070G NB-IoT / Cat-M / GPRS HAT For Raspberry Pi, Global Band Support, With GNSS Positioning
NB-IOT / CAT-M / GPRS / GNSS HAT

Low Power Narrow Band Cellular IoT Communication Module For Raspberry Pi

Based on SIM7070G, Global Band Support

This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

Compared to SIM7080G, this module also supports GPRS (2G); compared to SIM7000C/E, it is more generic due to the global bands support.

Features At A Glance
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • 2x LED indicators, easy to monitor the working status
  • Baudrate: 300~3686400 bps
  • Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

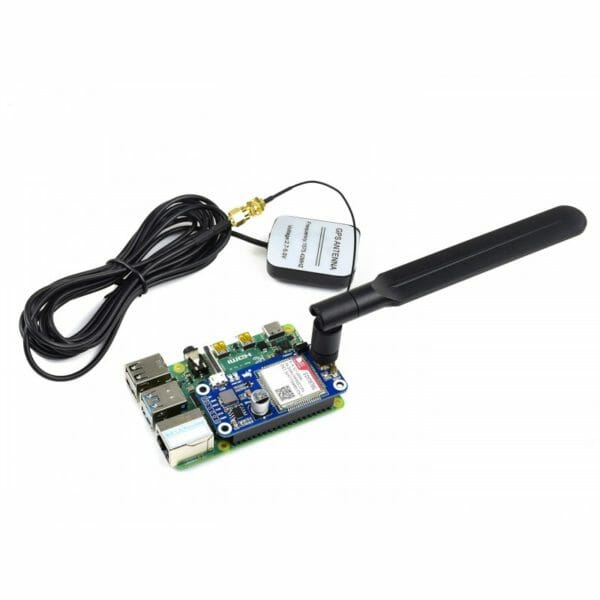

Standard Raspberry Pi 40PIN GPIOCompatible With Raspberry Pi Series Boards

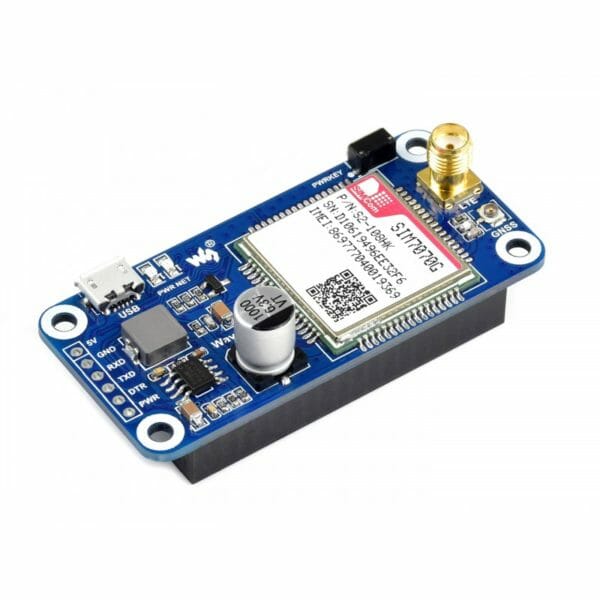

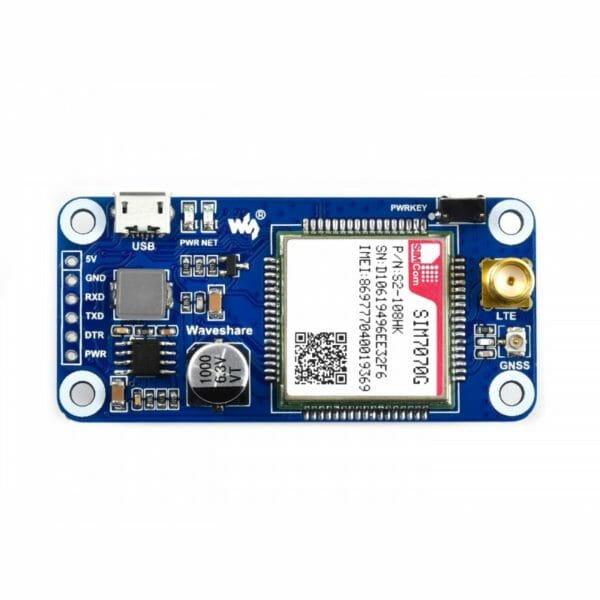

What’s On Board

  1. SIM7070G
  2. MP1482 power chip
  3. RT9193-33 power chip
  4. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  5. USB interface
    for testing AT Commands, getting GPS positioning data, etc.
  6. SIM7070G control interface
    for connecting with host boards like Arduino/STM32

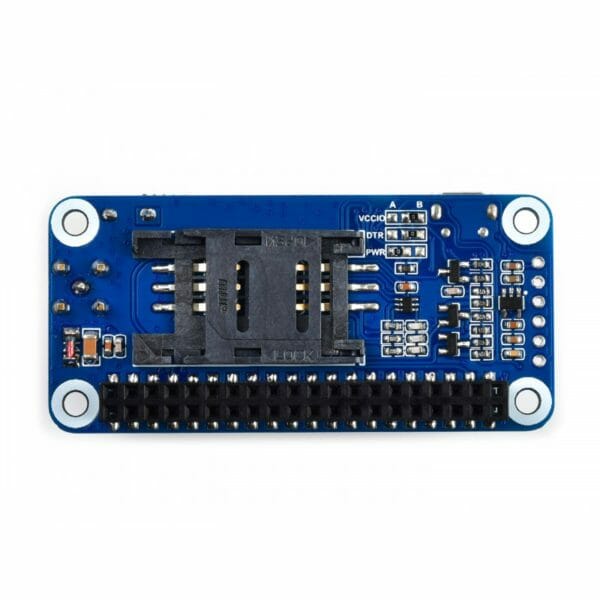

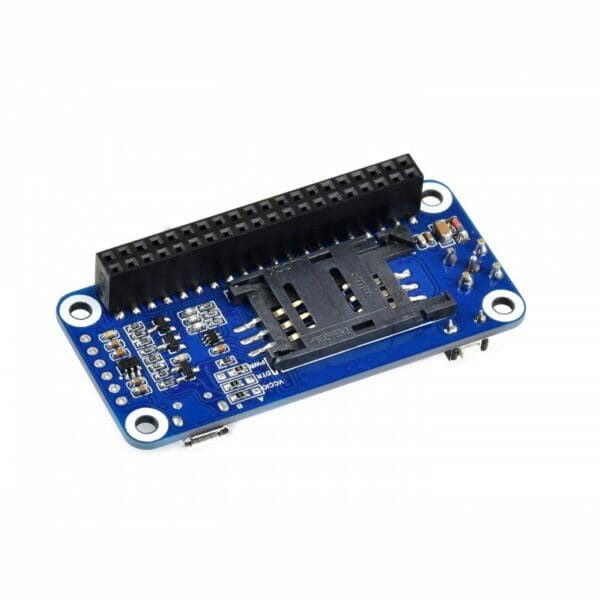

  7. SIM card slot
    supports 1.8V SIM card ONLY
  8. GNSS antenna connector
  9. LTE antenna connector
  1. Module power key
  2. Network status indicator
  3. Power indicator
  4. Operating voltage selection
    A: set IO level as 5V
    B: set IO level as 3.3V (default)
  5. DTR selection
    A: DTR is connected to P26
    B: DTR is disconnected (default)
  6. PWR selection
    A: PWR is connected to P4 (default)
    B: PWR is connected to power supply

PINOUT

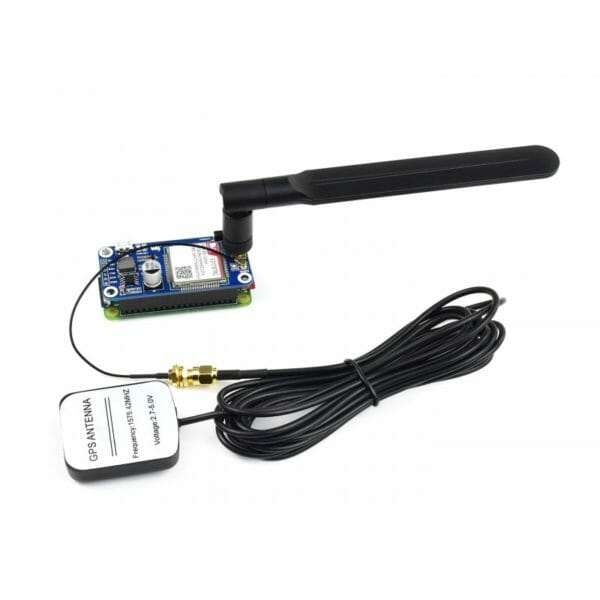

Package Content

  1. SIM7070G Cat-M/NB-IoT/GPRS HAT x1
  2. LTE Antenna x1
  3. GPS External Antenna (B) x1
  4. USB-A to Micro-B cable x1
  5. Standoffs pack x1

Resources

Informazioni aggiuntive

Brand

Waveshare

Specifications
NB-IOT/CAT-M/2G
BandNB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
GSM/GPRS/EDGE: 850/900/1800/1900MHz
Data rateNB-IoT: 136Kbps(DL)/150Kbps(UL)
Cat-M: 589Kbps(DL)/1119Kbps(UL)
GPRS: 85.6Kbps(DL)/85.6Kbps(UL)
EDGE: 236.8Kbps(DL)/236.8Kbps(UL)
SIM card supportNB-IoT/Cat-M/2G card (1.8V SIM card ONLY)
Applicable regionglobal
GNSS
Satellite systemsGPS, BeiDou, GLONASS, Galileo
Receiver type16-channel
C/A Code
BandGPS L1: 1575.42 ± 1.023MHz
GLONASS L1: 1598.0625 ~ 1605.375MHz
BDS B1: 1559.052 ~ 1591.788MHz
Galileo L1: 1575.42 ± 1.023MHz
Data formatNMEA-0183
AntennaActive antenna
OTHER
Power supply5V
Operating voltage5V / 3.3V (configured via 0Ω resistor)
Current consumptionabout 41mA (idle mode)
Operating temperature-40°C ~ 85°C
Storage temperature-45°C ~ 90°C
Dimensions30.50mm × 65.00mm
