OnOff SHIM

OnOff SHIM

6,78

Out of stock

6,78

Availability: Out of stock SKU: PIM269 Categories: ,

Informami quando l'articolo è disponibile.

Description

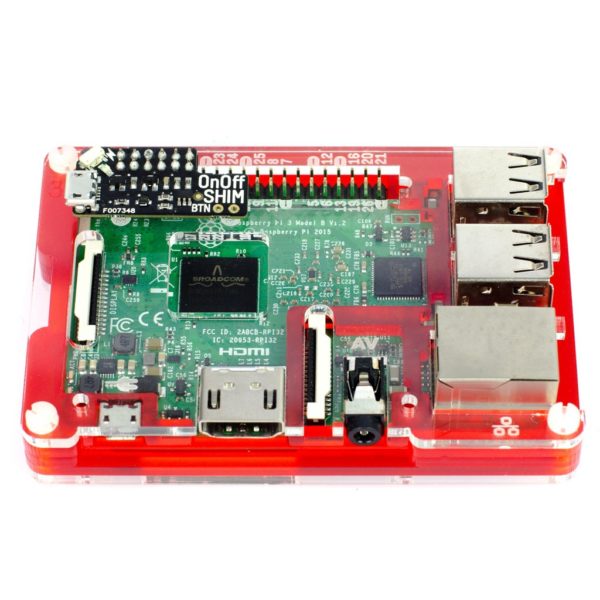

Add a tiny yet convenient power switch to your Pi with OnOff SHIM!

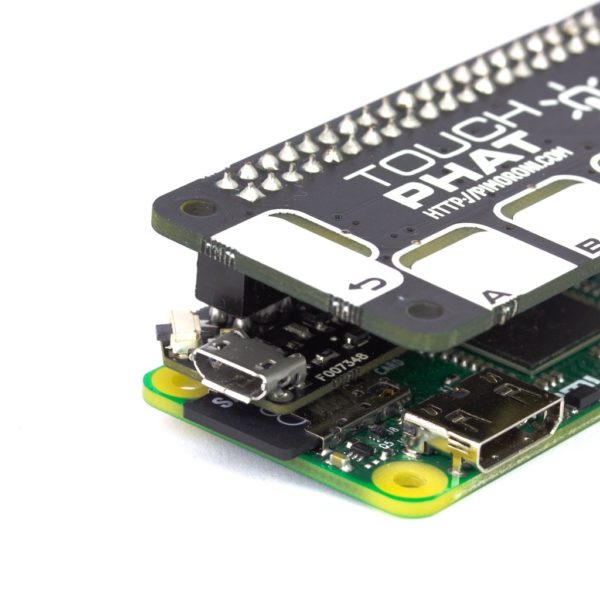

Our SHIMs (Shove Hardware in the Middle) are a new range of boards designed to be small, affordable, and handy. They're just 1mm thick (the bare board, not including mounted components) and designed to be soldered straight onto the GPIO pins of your Pi, if you wish, so that you can use them with HATs and pHATs on top.

Usage

Just plug your micro-USB power supply into the micro-B connector on OnOff SHIM, and then press the button once to switch on power and boot up your Pi. After installing our software (details below), you can press the button again to initiate a clean shutdown and completely cut the power to your Pi.

Features

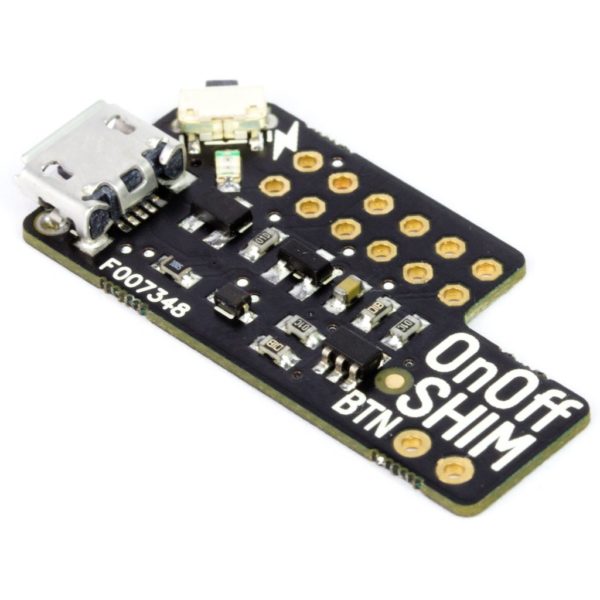

super-small SHIM-format board
1mm thick PCB
can be used with HATs and pHATs
corner-mounted push button for on/off
micro-B connector for power supply
red status LED
optional breakout pins to connect an external momentary button

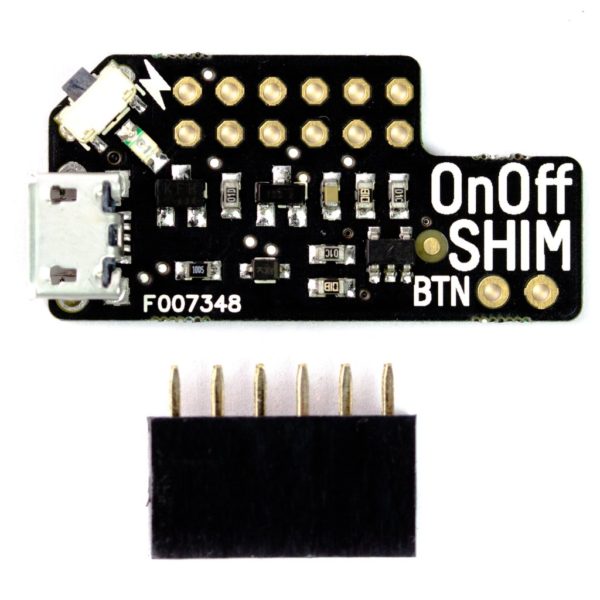

2×6 female header included
supports up to 2.5A power supply
software daemon to shutdown cleanly
requires soldering

Software

We've put together a one-line-installer to install the clean shutdown daemon. It watches the state of BCM pin 17 and, when pulled low (pressed), it initiates a clean shutdown. Last thing, just before your Pi shuts down, BCM pin 4 is pulled low to completely cut power to your Pi.

To install the software, open a terminal and type curl https://get.pimoroni.com/onoffshim | bash to run the one-line-installer.

Documents:

Product page

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

PIM269-P3

Brand

Pimoroni

Caratteristiche

Raspberry Pi 4
