Explorer pHAT

Explorer pHAT

9,46

Disponibile

9,46

Versione disponibile:: 216 disponibili COD: PIM137 Categorie: ,
Visualizza carrello

Descrizione

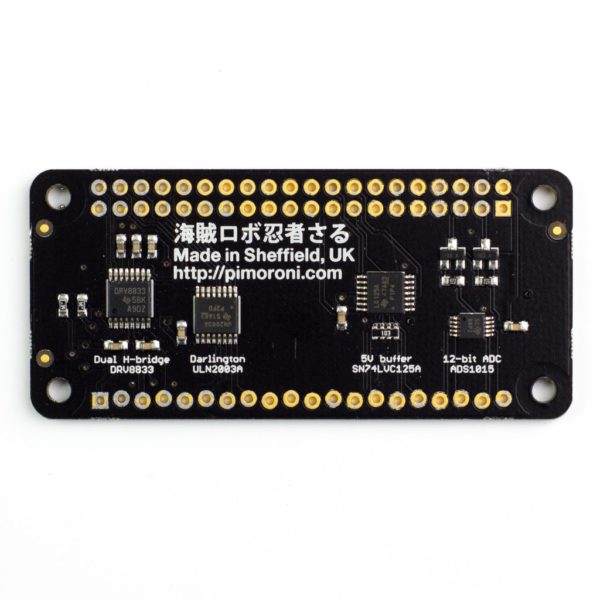

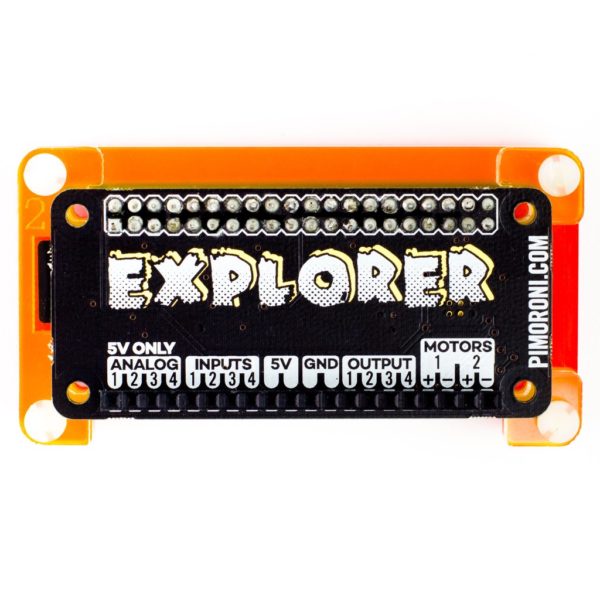

Explorer pHAT is the perfect prototyping side-kick for your Raspberry Pi!A more diminutive version of our popular Explorer Hat Pro, it's cheaper and designed to fit perfectly on a Raspberry Pi Zero!We've added a heap of useful input and output options that will take your projects to the next level. Great for driving motors, using analog sensors, and interfacing with 5V systems (like Arduino).Perfect for building a tiny robot, or use it with our Explorer HAT Pro parts kit to prototype all sorts of circuits with its LEDs, analog dials, and temperature sensor.Features

Four buffered 5V tolerant inputs (perfect for Arduino compatibility)
Four powered 5V outputs (up to 500mA total across all four channels)
Four analog inputs
Two H-bridge motor drivers (up to 200mA per channel; soft PWM control)

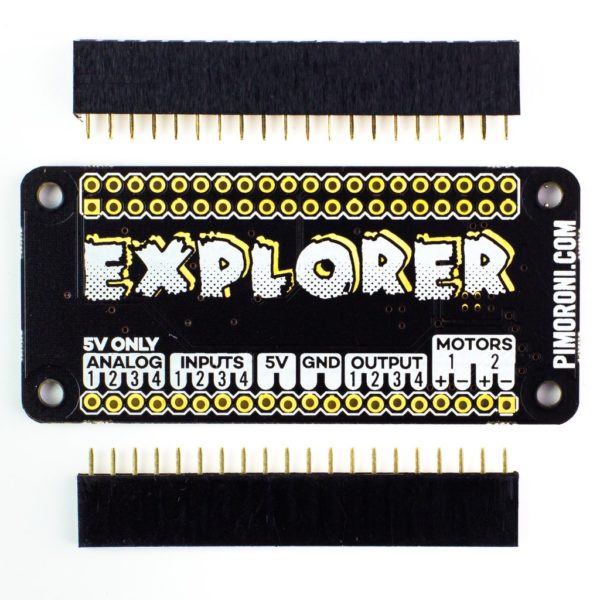

Explorer pHAT pinout
Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
Python library
Female headers require soldering

Software

Explorer pHAT uses the same easy-to-use Python library as Explorer HAT Pro, that includes a bunch of examples to demonstrate Explorer pHAT's functions.

Notes

The inputs use a 5-channel buffer that will accept anything from 2V-5V as logic high.

Documents:

Product page

Tutorials:

Soldering Pi Zero pHATs
A quick tutorial on soldering Pi Zero pHATs

Build a firefly light
Use a Pi Zero, Explorer pHAT and Zero LiPo to build a pretty firefly light

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

PIM137

Brand

Pimoroni

Caratteristiche

Raspberry Pi 4
