SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

84,51

In stock

84,51

Availability: 1 in stock SKU: WS-19485-PT0 Categories: ,
View basket

Description

SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

4G HAT FOR RASPBERRY PI

Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning

Based on SIM7600G-H, Global Band

Specifications
FREQUENCY BAND
LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite systems GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s
SMS AND AUDIO
SMS Supported types: MT, MO, CB, Text, PDU
Audio feature Supports echo cancellation
Supports noise reduction
OTHER
Power supply 5V
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C
Dimensions 65.00 × 32.00mm

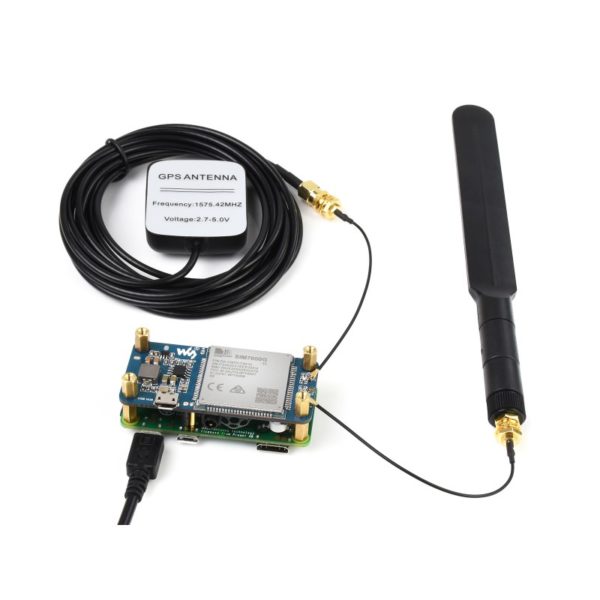

Suitable For Raspberry Pi / PC

Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable
General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC

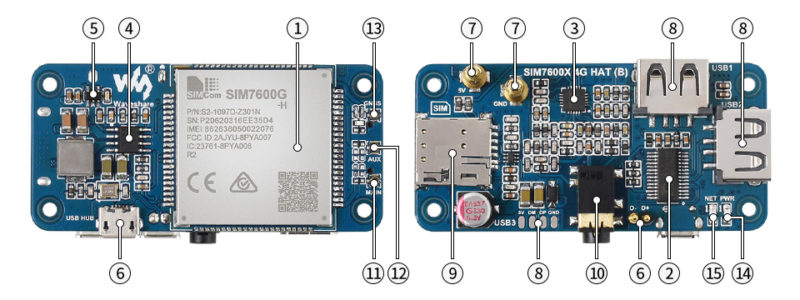

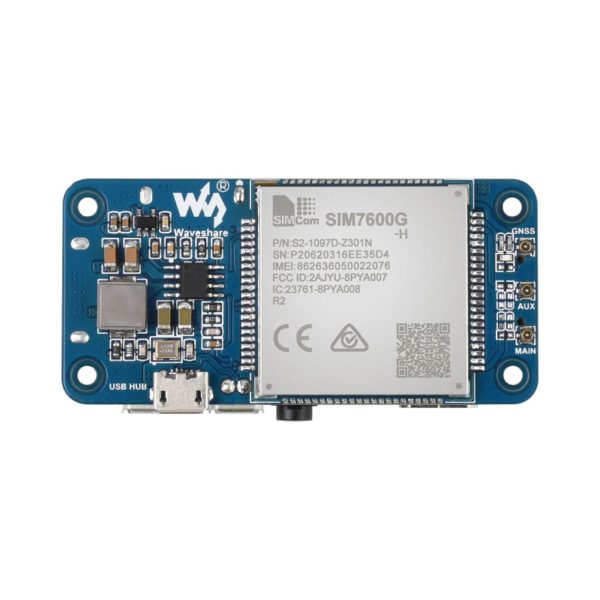

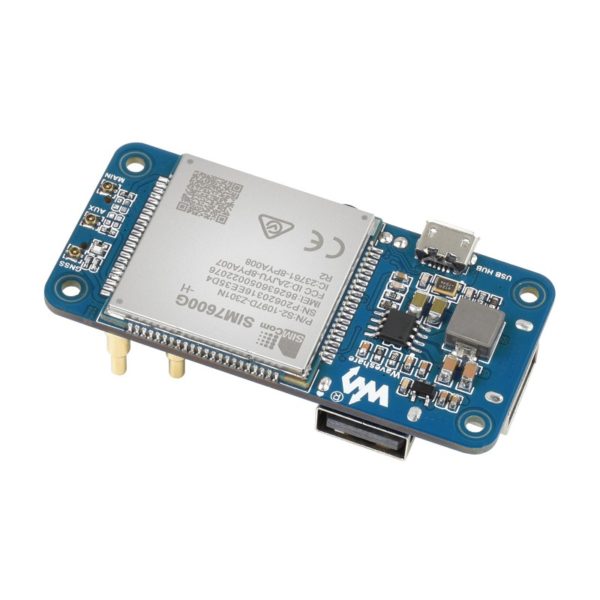

What’s On Board

  1. SIM7600G-H
  2. FE1.1S USB HUB chip
  3. NAU8810 audio decoder
  4. MP1482 power chip
  5. RT9193-33 voltage translator
  6. USB HUB input

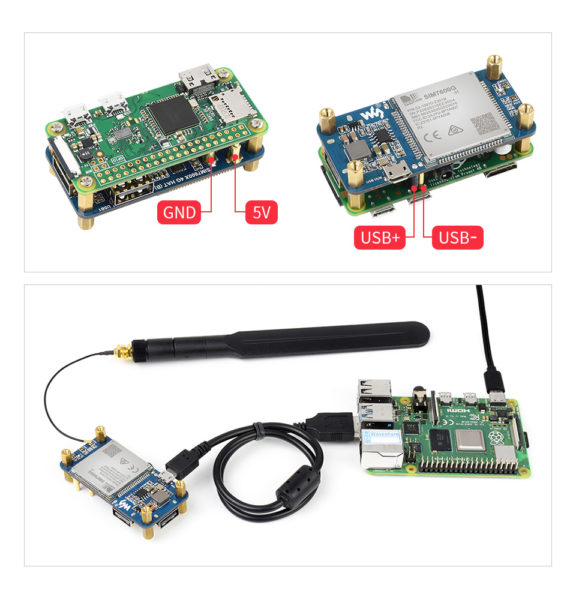

    D+/D- pogo pin: for Raspberry Pi Zero/Zero W
    MicroUSB connector: for other Raspberry Pi boards or PC
  7. Pogo pin power supply
    5V: connects to 5V pin of Zero/Zero W, up to 2A current
    GND: connects to GND pin of Zero/Zero W

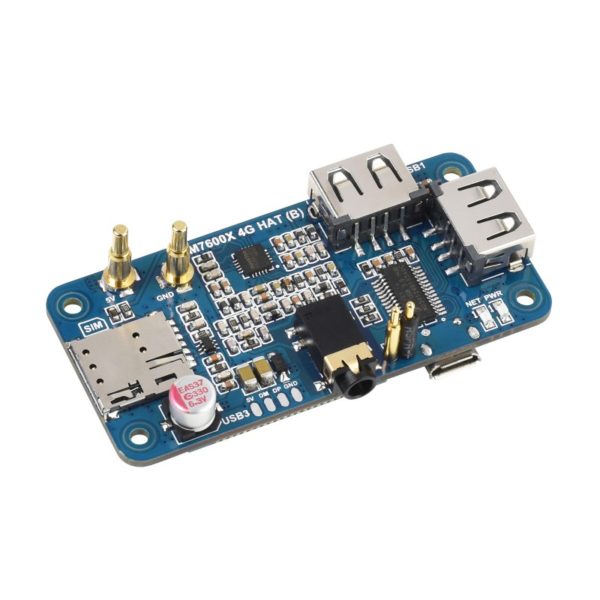

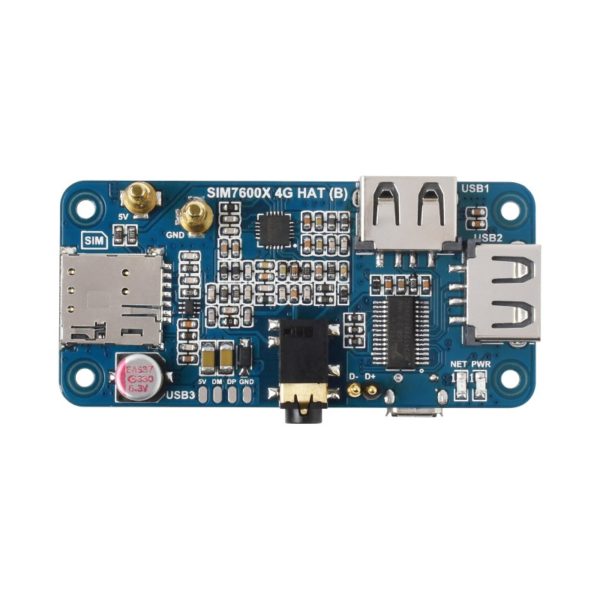

  1. USB extended ports
    USB1~USB2: USB-A connectors
    USB3: solder pad
  2. SIM card slot
    supports 1.8V/3V SIM card
  3. 3.5mm earphone/mic jack
  4. MAIN antenna connector
  5. AUX auxiliary antenna connector
  6. GNSS antenna connector
  7. Power indicator
  8. Network status indicator

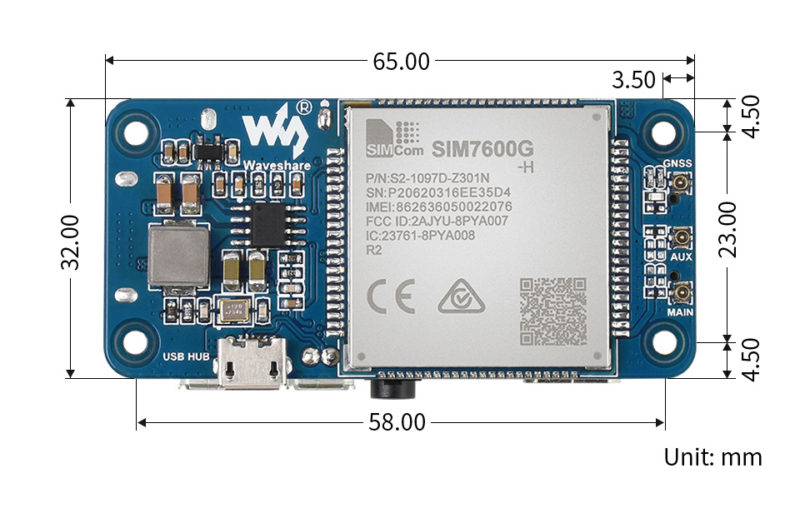

Outline Dimensions

PACKAGE CONTENT

  1. SIM7600G-H 4G HAT (B) x1
  2. LTE Antenna x1
  3. GPS Antenna x1
  4. USB-A to micro-B cable x1
  5. Screws pack x1

WIKI

Additional information

Brand

Waveshare
