1.8inch colorful display module for micro:bit, 160×128

1.8inch colorful display module for micro:bit, 160×128

13,40

Disponibile

13,40

Disponibile:: 1 disponibili COD: WS-14718-PT0 Categoria:
Visualizza carrello

Descrizione

Overview

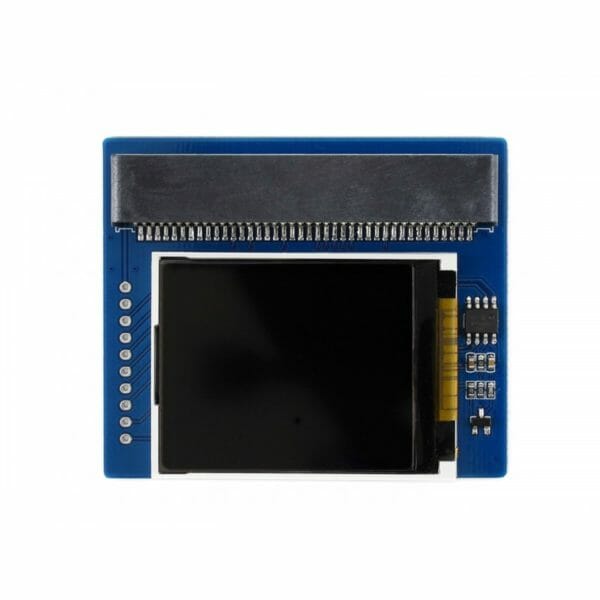

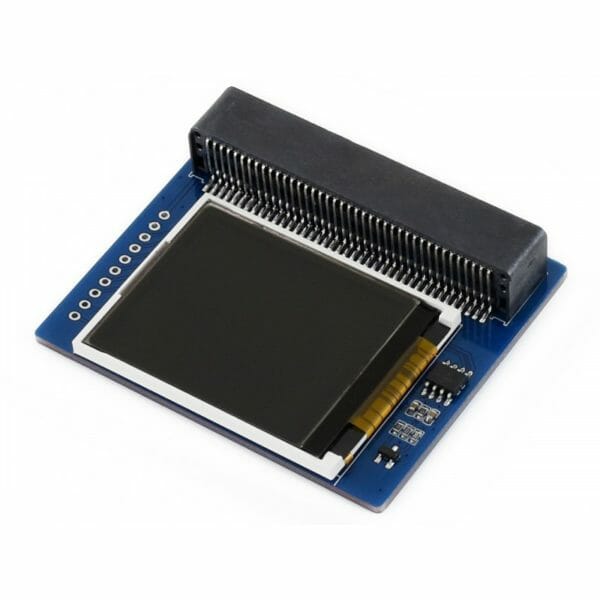

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160×128 pixels, capable of displaying 65K colors.

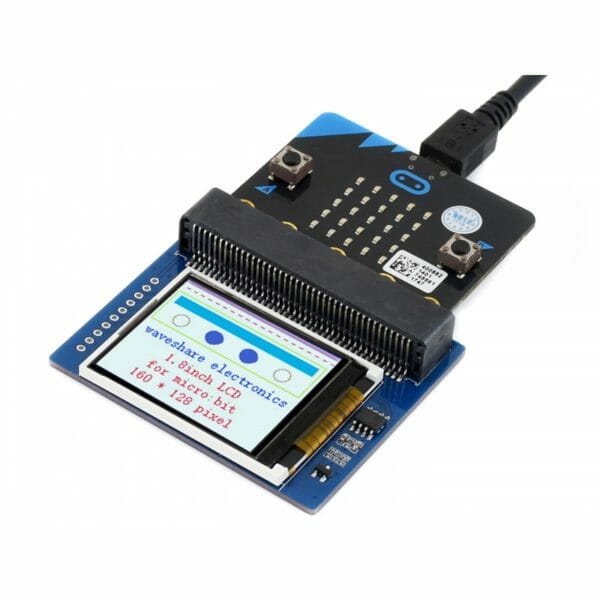

Tired of the 5×5 LED matrix? Time to get a tiny monitor for your micro:bit, this one would be the ideal choice.

Features

  • micro:bit edge connector, directly pluggable
  • Embedded driver ST7735S, supports 65K colors
  • Onboard SRAM 23LC1024, used as display cache, no more out of memory
  • SPI interface, takes up only a few IO pins
  • Backlight adjustment via PWM
  • Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
  • Comes with development resources (micro:bit graphical demo/user manual, etc.)

Specifications

  • Driver: ST7735S
  • Resolution: 160×128
  • Display color: RGB, 65K colors
  • Operating voltage: 3.3V

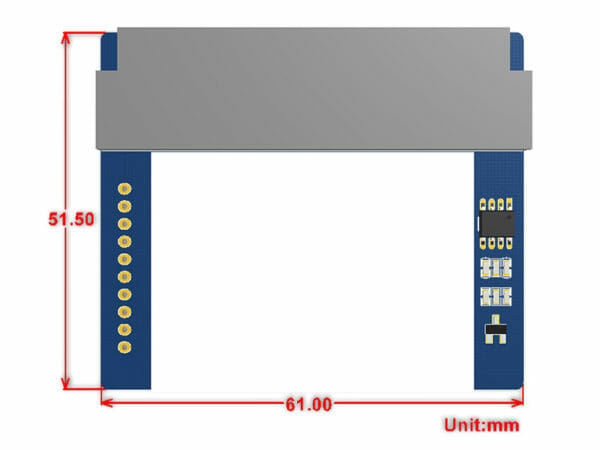

  • Dimension: 61mm x 51.5mm

Resources

Informazioni aggiuntive

Brand

Waveshare

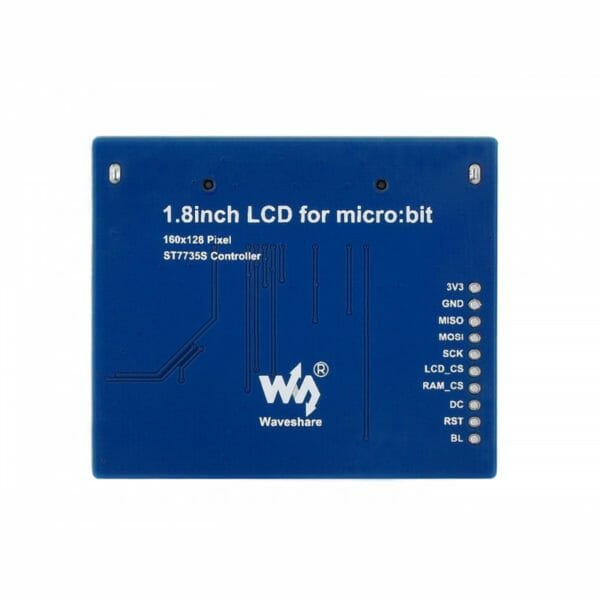

Pinouts

PIN MICRO:BIT PIN DESCRIPTION
3V3 3V3 Power
GND GND Ground
MISO P14 SPI data master input/slave output
MOSI P15 SPI data master output/slave input
SCK P13 SPI clock input
LCD_CS P16 LCD chip selection
RAM_CS P2 SRAM chip selection
DC P12 LCD data/command
RST P8 LCD reset
BL P1 LCD backlight
