Melopero Shake RP2040

Melopero Shake RP2040


In stock


Availability: 2 in stock SKU: MEL2102 Categories: , Tags: , ,


Click below to download the getting started guide:

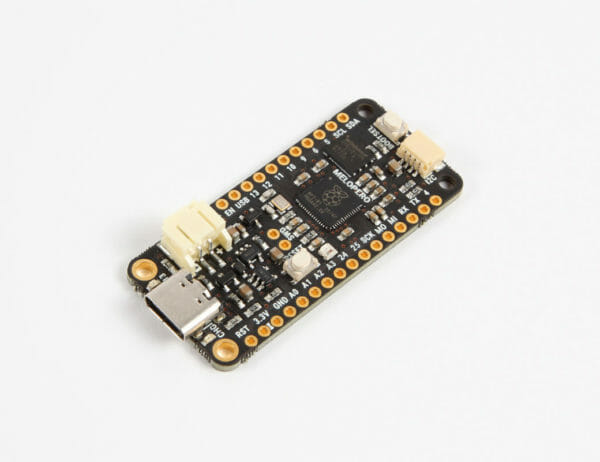

The Melopero Shake RP2040 is a powerful development board based on the Raspberry Pi RP2040 microcontroller, programmable in C/C++, MicroPython, CircuitPython and Arduino.

The board features:

  • 16Mbytes of FLASH Memory
  • 3.7-4.2 LiPo battery charger (200mA charge curret)
  • Battery monitor (it sends an alert when the battery voltage drops at 3.4V)
  • Reset and boot buttons (no need to detach/attach the board to enter boot mode)
  • Qwiic/Stemma QT connector for attaching lots of Melopero, Adafruit and SparkFun sensors
  • Classic Feather pinout for maximum compatibility
  • USB-C connector for powering, programming and charging
  • JST 2-pin connector for attaching the battery (we follow the Adafruit and SparkFun batteries polarity)
  • Green user LED on pin 13
  • RGB WS2812 LED (aka NeoPixel)
  • Orange LED for signaling the charging status
  • SWD header for debugging
  • 4 mounting holes
  • Programmable in C/C++, MicroPython, CircuitPython and Arduino


Dimensions: 2.0” x 0.9” x 0.28” (50.8mm x 22.8mm x 7.05/max height ) .
