SparkFun Touch Shield

SparkFun Touch Shield

12,26

Disponibile

12,26

Disponibile: 1 disponibili COD: DEV-12013 Categorie: , , , ,
Visualizza carrello

Descrizione

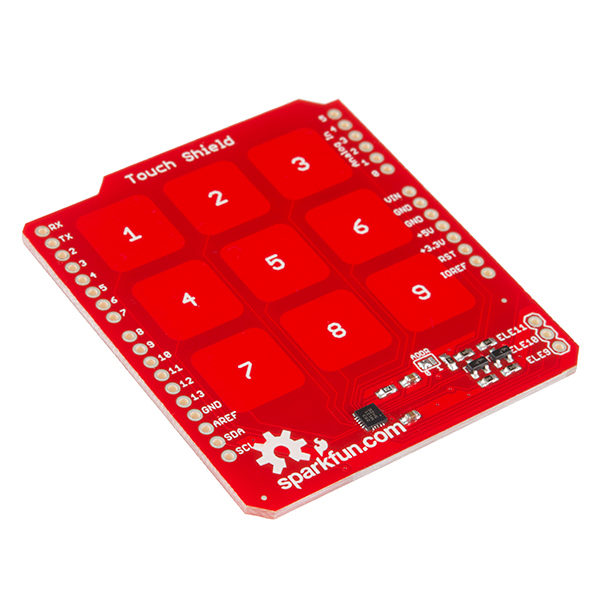

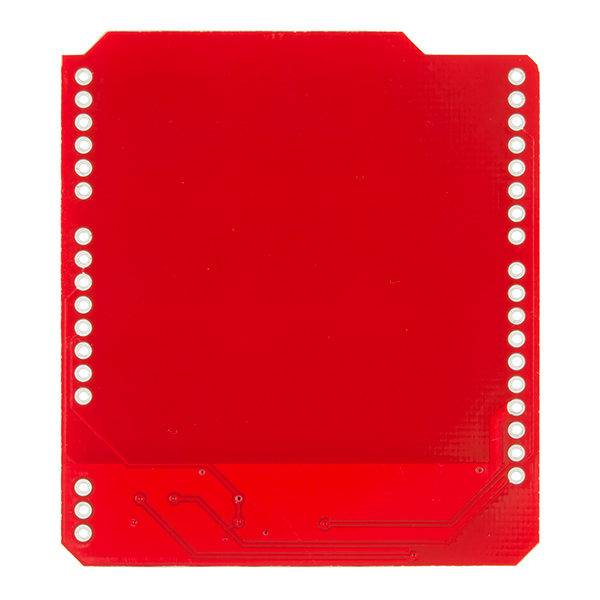

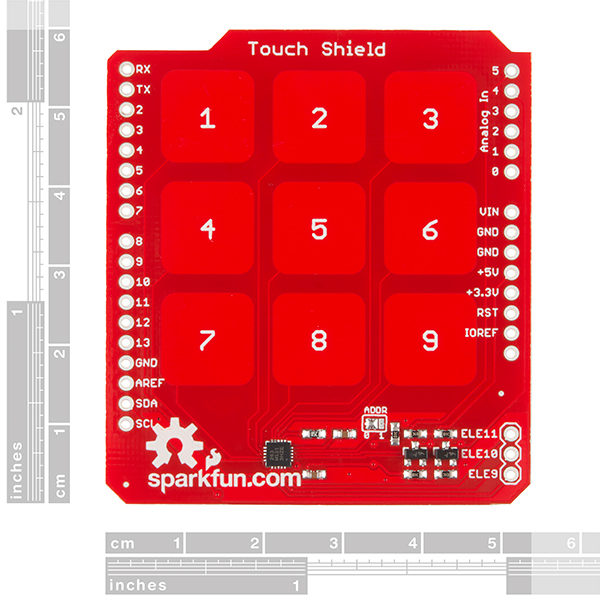

The MPR121QR2 IC is a great way to build simple capacitive touch interfaces, and now it’s even easier to incorporate into your Arduino projects with the touch shield. The SparkFun Touch Shield has 9 capacitive touch pads, with headers for the remaining 3 electrode connections. With this shield you can have a total of 12 touch sensitive buttons. An on-board logic level converter allows it to work with 5V and 3.3V Arduino boards. Simply solder on some header pins and stack it on to your Arduino for a convenient input device. Check below for some example code to get you started.

Documents:

Schematic
Eagle Files
Datasheet (MPR121QR2)
Hookup Guide
GitHub (Design Files & Example Code)

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

DEV-12013

Brand

Sparkfun
