2.4GHz Mini Flexible WiFi Antenna with uFL Connector – 100mm

2.4GHz Mini Flexible WiFi Antenna with uFL Connector – 100mm

2,71

Disponibile

2,71

Mini antenna con connettore uFL per trasmissioni a 2.4GHz, ha un gain di 4DBi e un'impedenza di 50?.

Disponibilità: 1 disponibili COD: AD2308-H12 Categorie: , ,
Visualizza carrello

Descrizione

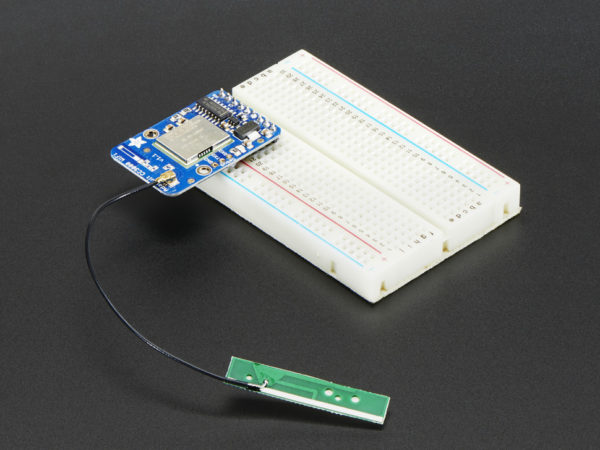

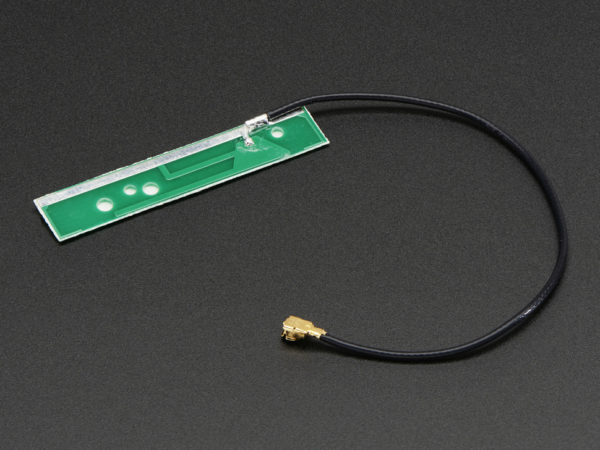

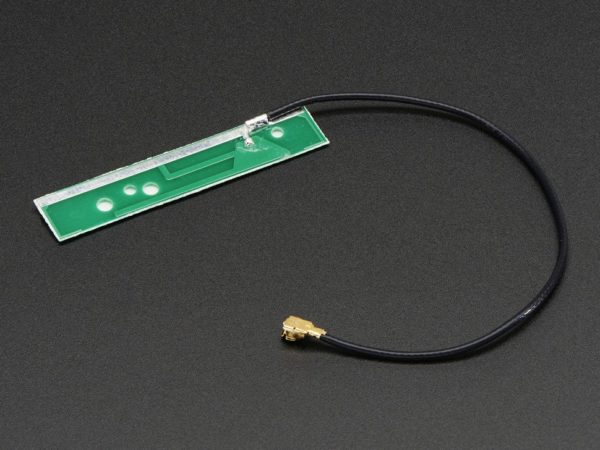

This 4″ / 100mm long flexible uFL 2.4GHz antenna has approx 4DBi gain and a 50? impedance so it will work fantastically with just about any 2.4-2.5GHz wireless receiver/transmitter such as the Adafruit CC3000s!

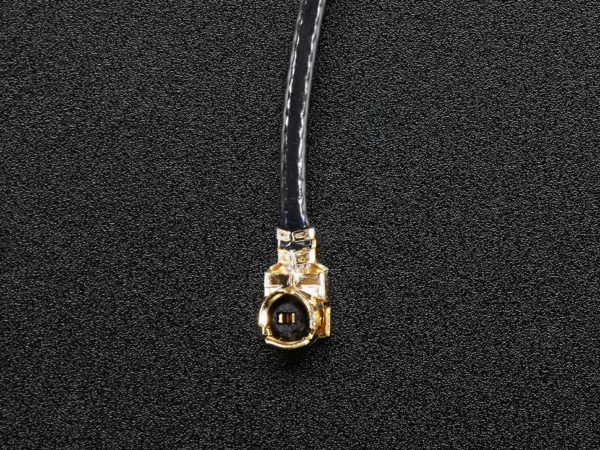

Antenna comes with a uFL (a.k.a u.FL / IPX / IPEX) connector, so no more need for additional adapters to get your IoT cloud flying high!

Operating Range: 2400~2500MHz / 4900~5900MHz
Efficiency: 90%

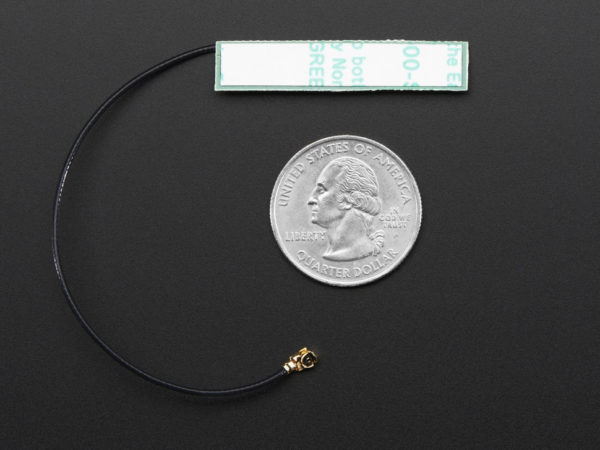

Bandwidth (VSWR: 2.0 max.) 140 MHz / SWR < 2.0 Polarization: Linear Radiation: Omni directional Antenna Gain: 4DBi Impedance: 50 ohm Cable: 100mm / 4" long Antenna: 40mm x 8mm / 1.6" x 0.3" Weight: 0.7g INFO: Pagina del Produttore

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Brand

Adafruit
