Snap-Action Switch with 16.7mm Lever: 3-Pin, SPDT, 5A

Snap-Action Switch with 16.7mm Lever: 3-Pin, SPDT, 5A

Snap-Action Switch with 16.7mm Lever: 3-Pin, SPDT, 5A

1,38 IVA INCLUSA

Disponibile

1,38 IVA INCLUSA

Disponibile: 6 disponibili COD: P-1402 Categoria: Tag: ,
Quantity discounts
1-2 1,38
3-5 1,35
6+ 1,32

Descrizione

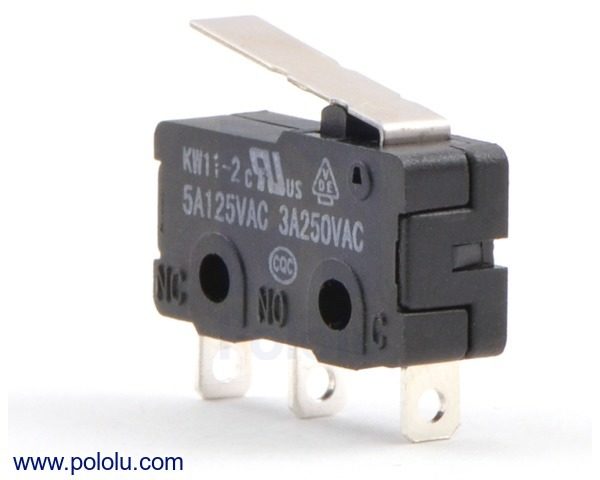

This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79″ x 0.25″ x 0.40″), and the lever arm is 16.7 mm (0.66″) long. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used. The maximum operating force is 0.9 N, or approximately 90 gf (3 oz).

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Brand

Pololu
