Snap-Action Switch with 16.3mm Roller Lever: 3-Pin, SPDT, 5A

Snap-Action Switch with 16.3mm Roller Lever: 3-Pin, SPDT, 5A

Snap-Action Switch with 16.3mm Roller Lever: 3-Pin, SPDT, 5A

0,98

Disponibile

0,98

Availability: 15 disponibili COD: P-1404 Categoria:

Descrizione

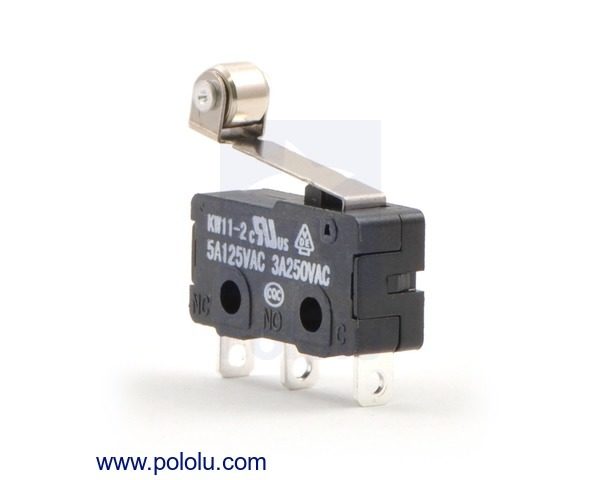

This single-pole, double-throw (SPDT) momentary switch can be used as a general-purpose micro switch or tactile obstacle-detector for your robot. The switch body dimension is 20.0 x 6.4 x 10.2 mm (0.79″ x 0.25″ x 0.40″), and the 16.3mm (0.64″) lever arm has a roller at the tip. This three-pin switch can also be used as a two-pin single-pole, single-throw (SPST) switch that is open or closed by default, depending on which two pins are used.

Dimensions (in mm) of snap-action switch with 16.3mm roller lever: 3-pin, SPDT, 5A.

Informazioni aggiuntive

Peso 0.05 kg
Dimensioni 5 × 1 × 3 cm
Brand

Pololu

Board

Arduino
