Vibrating Mini Motor Disc

Vibrating Mini Motor Disc


In stock


Mini motore vibrante. Funziona con tensioni da 2V a 5V. Diametro 10mm. A 5V richiede 100mA, a 4V 80mA, a 3V 60mA, a 2V 40mA. Raggiunge 11000RPM a 5V.

Availability: 14 in stock SKU: AD1201 Categories: , Tag:

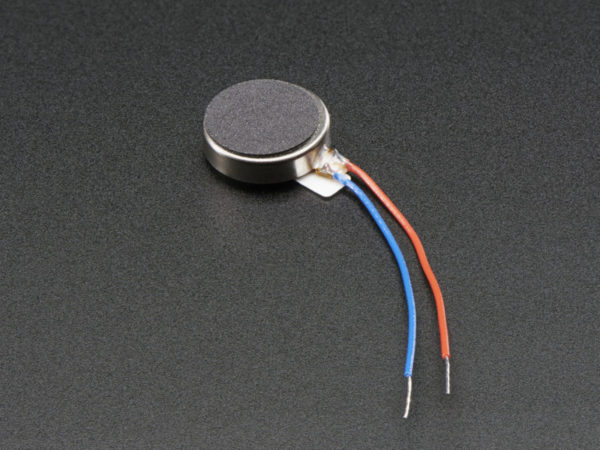

*BZZZZZZZZZZ* Feel that? That’s your little buzzing motor, and for any haptic feedback project you’ll want to pick up a few of them. These vibe motors are tiny discs, completely sealed up so they’re easy to use and embed.

Two wires are used to control/power the vibe. Simply provide power from a battery or microcontroller pin (red is positive, blue is negative) and it will buzz away. Works from 2V up to 5V, higher voltages result in more current draw but also a stronger vibration.

If you want to reduce the current draw/strength (for example, to control it directly from an Arduino pin) try putting a resistor (100 to 1000 ohms) in series. For full power control, a small PN2222 transistor can control a motor easily, some experimentation may be required!

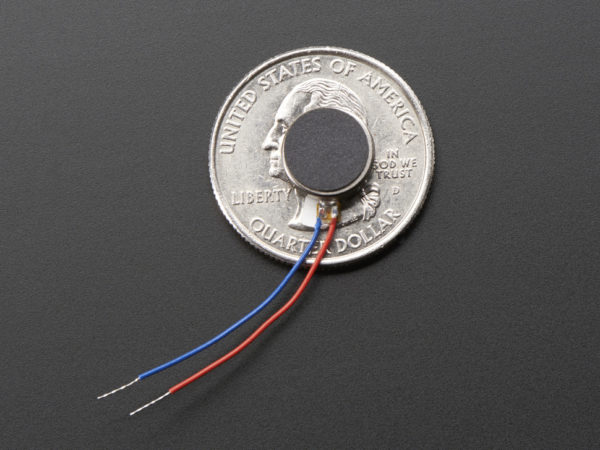

Dimension: 10mm diameter, 2.7mm thick
Voltage: 2V – 5V
5V current draw: 100mA, 4V current draw: 80mA, 3V current draw: 60mA, 2V current draw: 40mA
11000 RPM at 5V
Weight: 0.9 gram

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
