SparkFun RedBot Mainboard

SparkFun RedBot Mainboard

40,97

Disponibile

40,97

Versione disponibile:: 2 disponibili COD: ROB-12097 Categorie: , , , ,
Visualizza carrello

Descrizione

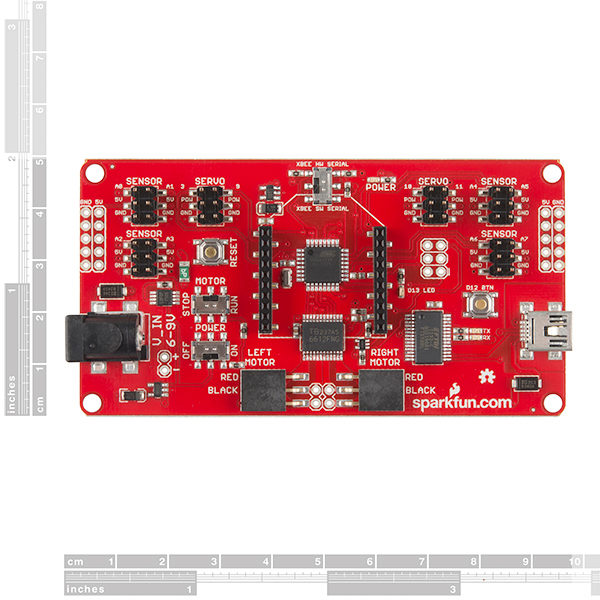

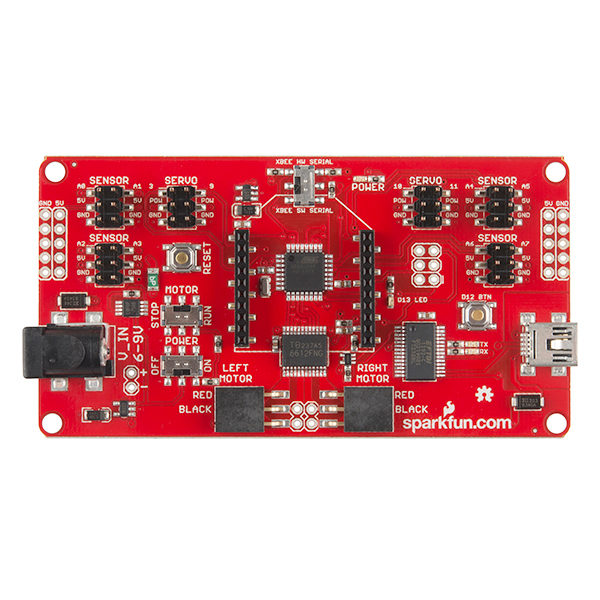

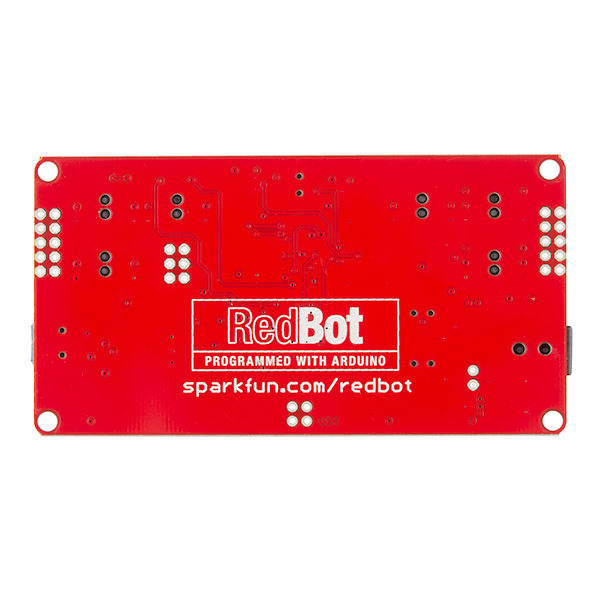

The SparkFun RedBot Mainboard is a robotic development platform that works with the Arduino IDE. The RedBot is a motor driver and Ardiuno combination with various headers and connections, eliminating the need to stack multiple shields. By using the RedBot accessory boards and your own chassis, you can design a robot to suit your needs.

The RedBot comes pre-programmed with the Optiboot (Uno) bootloader. By simply connecting a USB mini-B cable, you can program it in the Arduino IDE using our example code, or your own. The optional add-on sensors attach to the main board via 6-pin headers or jumper cables to increase capabilities.

Check out the entire RedBot family of products!

Features:

5V Logic
6-9V Input Voltage via Barrel Jack or 2-Pin Header
ATmega328P (pre-programmed)
TB6612FNG Dual DC Motor Driver
USB Programmable via FTDI
XBee Port with HW/SW Serial Switch
2x 3-Pin Female Motor Port
2x 6-Pin Male Optional Servo Header
4x 6-Pin Male Optional Sensor Header

INFO TECNICHE:
Pagina del Produttore
Schematic
Eagle Files
RedBot Tutorial
RedBot Experiment Guide
RedBot Assembly Guide
RedBot Arduino Library
Datasheet (ATmega328P)
Datasheet (TB6612FNG)
Datasheet (FT232R)
GitHub (Design Files & Example Code)
GitHub (Library)

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

ROB-12097

Brand

Sparkfun
