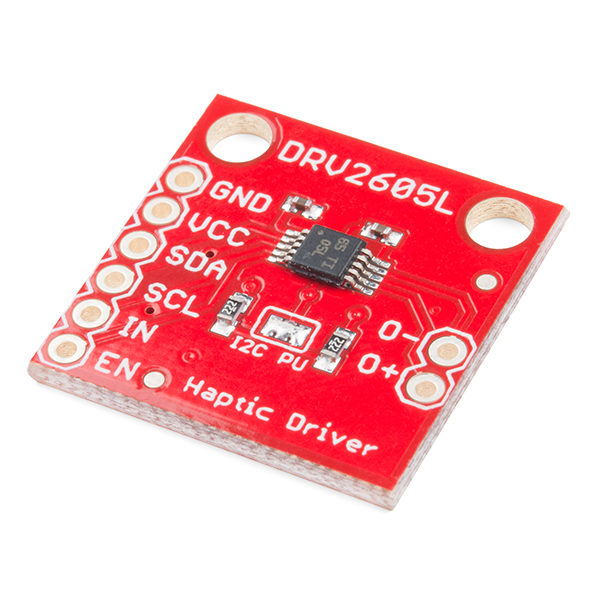

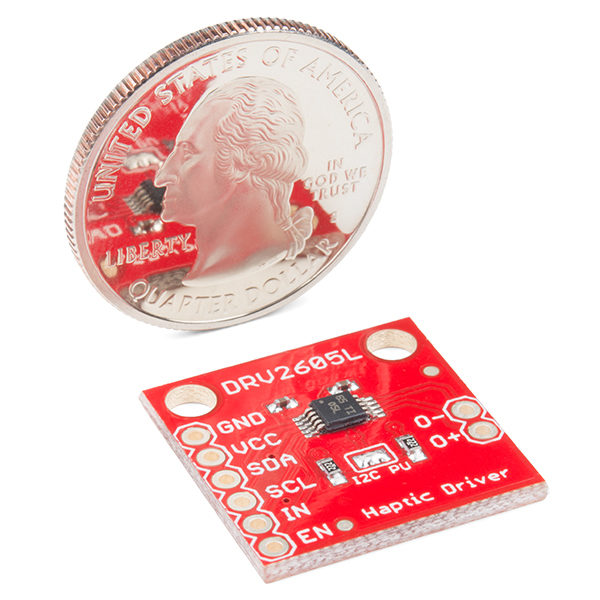

Ready to add some good vibes to your project? Look no further than the SparkFun Haptic Motor Driver. This board breaks out Texas Instruments' DRV2605L Haptic Motor Driver, which adds meaningful feedback from your devices using the breakout and an Arduino-compatible device.

The DRV2605L is capable of driving two different types of motors, ERMand LRA. It is important to know, however, that the default firmware for the DRV2605L is set for use with ERM type motors. We have created an Arduino library that makes the DRV2605L easy to use with six different ERM effects and one LRA effect.

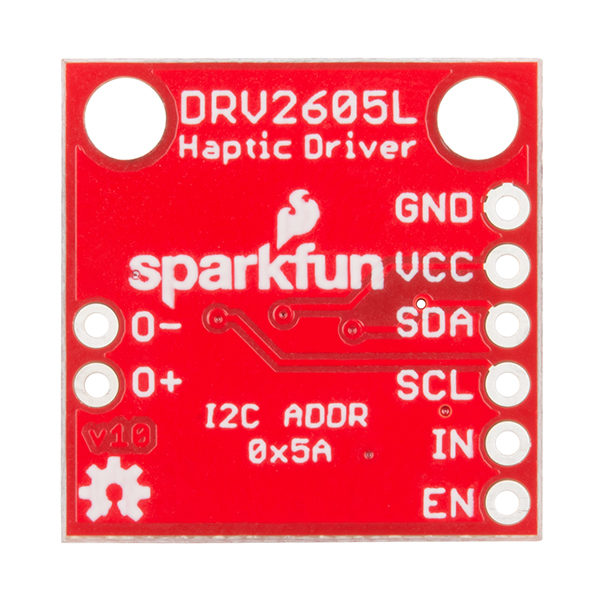

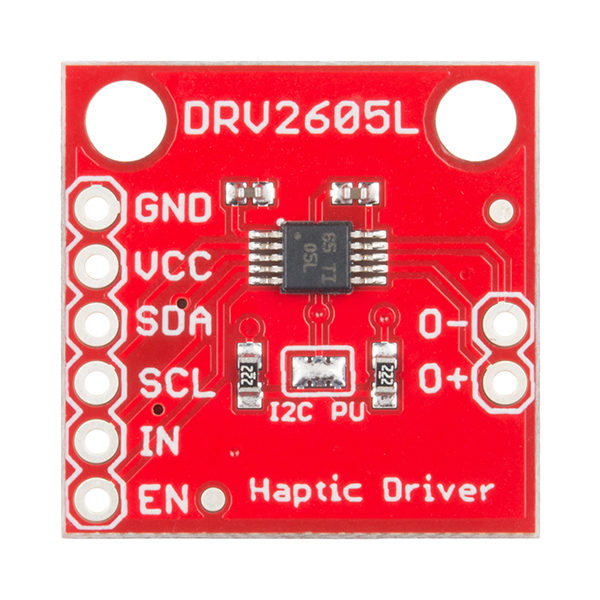

The SparkFun Haptic Motor Driver breakout board features six pins to provide power to the sensor and I2C bus. Additionally, a microcontroller that supports I2C is required to communicate with the DRV2605L and relay the data to the user by means of vibration.

Features:

Flexible Haptic and Vibration Driver for both ERM and LRA type motors
I2C Controlled Digital Playback Engine
Audio to Vibe
PWM input with 0-100% Duty-Cycle Control Range
Hardware Trigger Input
Built-in Waveform Sequencer and Trigger

Documents:

Product page
Schematic
Eagle Files
Hookup Guide
Datasheet (DRV2605L)
DRV2605L Library
GitHub

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
