Servo – Generic (Sub-Micro Size)

Servo – Generic (Sub-Micro Size)

7,44

Disponibile

7,44

Versione disponibile:: 3 disponibili COD: ROB-09065 Categorie: ,
Visualizza carrello

Descrizione

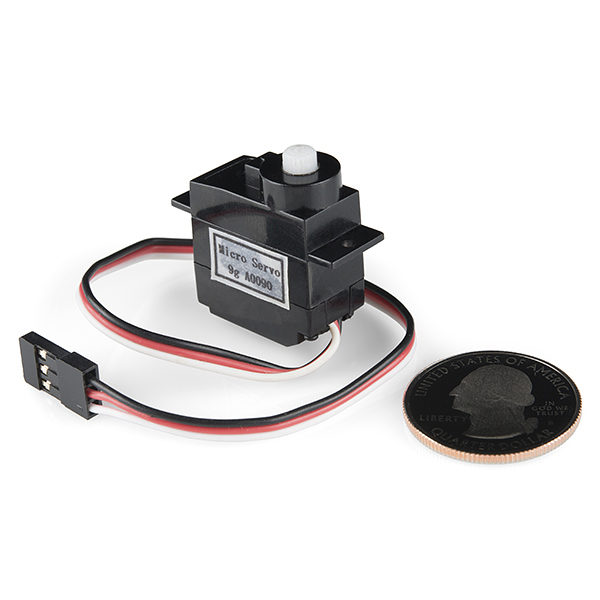

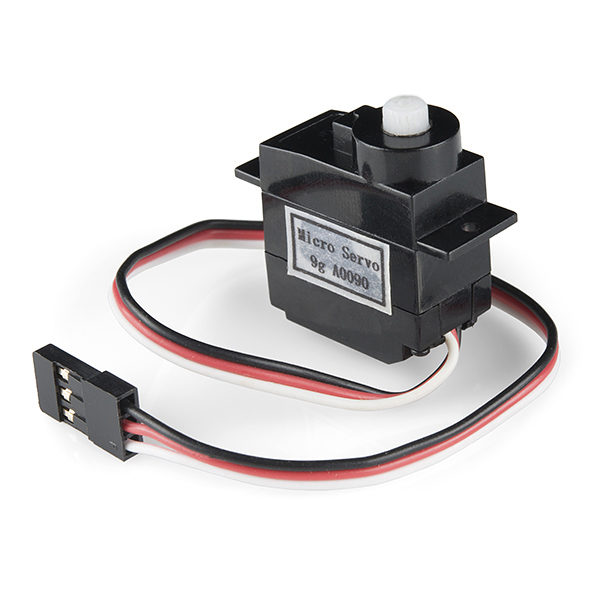

Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is very similar in size and specifications to the Hitec HS-55. This little guy is able to take in 6 volts and deliver 20.8 oz-in. of maximum torque at 0.10 sec/60°

This small servo comes with a standard 3 pin power and control cable, and all hardware listed below.

Note: This servo is rated for 180° rotation, but in actuality it only hits ~160°.

Features:

Voltage: 4.8-6.0 Volts
Torque: 16.6/20.8 oz-in. (4.8/6.0V)
Speed: 0.15/0.10 sec/60° (4.8/6.0V)
Rotation: ~160°
Single Top Ball Bearing
Nylon Gears
3-Pole Ferrite Motor

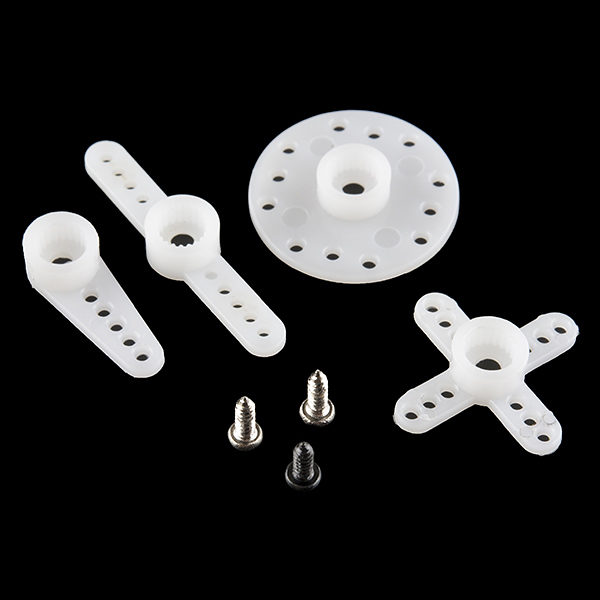

Includes:

1x Micro Size Servo
1x Single Arm Micro Horn
1x Double Arm Micro Horn
1x Four Point Micro Horn
1x Circle Micro Horn
2x 2x8mm Phillips Screw

Dimension:

31.8 x 11.7 x 29mm
Wire Length: 160mm
Weight: 9g

Documents:

Product page
Datasheet
mbed Example

Informazioni aggiuntive

Peso 0,05 kg
Dimensioni 5 × 1 × 3 cm
Produttore

Senza marca/Generico

MPN

ROB-09065

Brand

Sparkfun
