DC Toy / Hobby Motor – 130 Size

DC Toy / Hobby Motor – 130 Size


In stock


Motore DC, alimentarie con 4.5 – 9 VDC. Dimensioni 27.5mm x 20mm x 15 mm.

Availability: 2 in stock SKU: AD711-C3 Categories: , Tag:

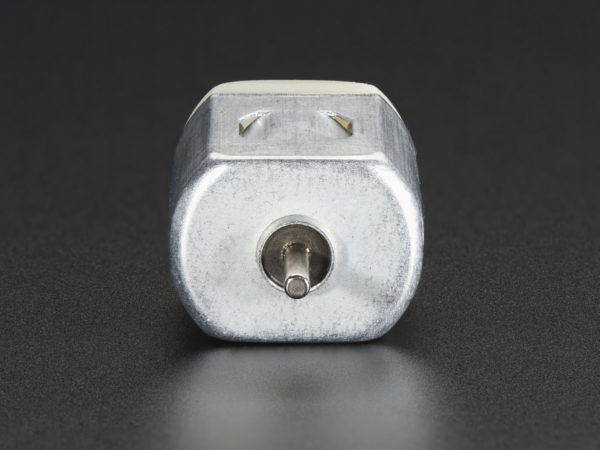

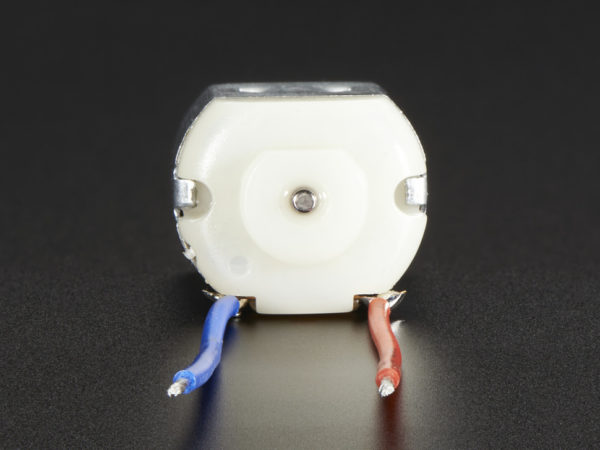

These are standard '130 size' DC hobby motors. They come with a wider operating range than most toy motors: from 4.5 to 9VDC instead of 1.5-4.5V. This range makes them perfect for controlling with an Adafruit Motor Shield, or with an Arduino where you are more likely to have 5 or 9V available than a high current 3V setting. They'll fit in most electronics that already have 130-size motors installed and there's two breadboard-friendly wires soldered on already for fast prototyping

Check the Technical Details for more detailed information!

Operating Temperature: -10°C ~ +60°C
Rated Voltage: 6.0VDC
Rated Load: 10 g*cm
No-load Current: 70 mA max
No-load Speed: 9100 ±1800 rpm
Loaded Current: 250 mA max
Loaded Speed: 4500 ±1500 rpm
Starting Torque: 20 g*cm
Starting Voltage: 2.0
Stall Current: 500mA max
Body Size: 27.5mm x 20mm x 15mm
Shaft Size: 8mm x 2mm diameter
Weight: 17.5 grams

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
