Premium Female/Male 'Extension' Jumper Wires – 40 x 6″ (200mm)

Premium Female/Male 'Extension' Jumper Wires – 40 x 6″ (200mm)


In stock


40 Cavi Jumpers maschio-femmina, lunghezza 200mm. Ideali per l?utilizzo con breadboards e headers a passo 2.54mm

Availability: 57 in stock SKU: MEL-C-0001 Categories: , ,

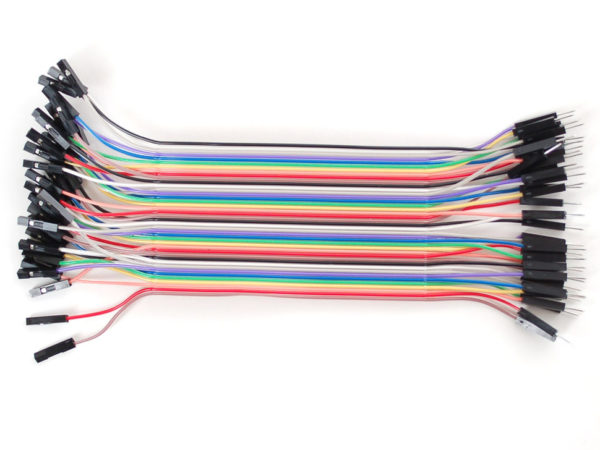

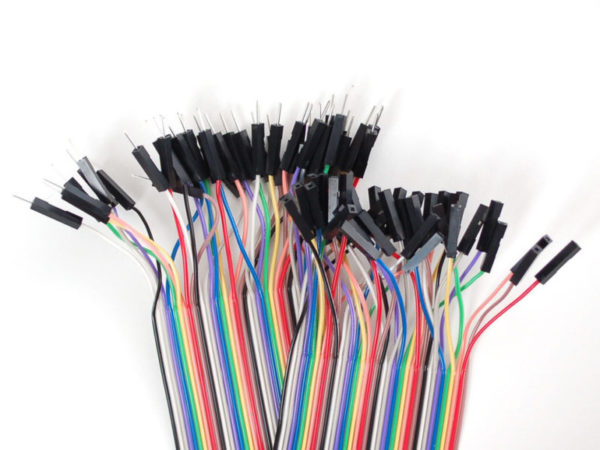

Handy for making wire harnesses or jumpering between headers on PCB's. These premium jumper wires are 6″ (200mm) long and come in a 'strip' of 40 (4 pieces of each of ten rainbow colors). They have 0.1″ male header contacts on one end and 0.1″ female header contacts on the other. They fit cleanly next to each other on standard-pitch 0.1″ (2.54mm) header. The best part is they come in a 40-pin ribbon cable. You can always pull the ribbon wires off to make individual jumpers, or keep them together to make neatly organized wire harnesses.

For best results, when plugging these in a line, have the sides with the 'silver latch bit' sticking out since that side is a tiny bit wider than 0.1″


Each wire is 28 AWG (7 strands @ 36 AWG)

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm

Senza marca/Generico
