Mini Illuminated Momentary Pushbutton – Red Power Symbol

Mini Illuminated Momentary Pushbutton – Red Power Symbol


In stock


Availability: 1 in stock SKU: AD3104 Categories: ,

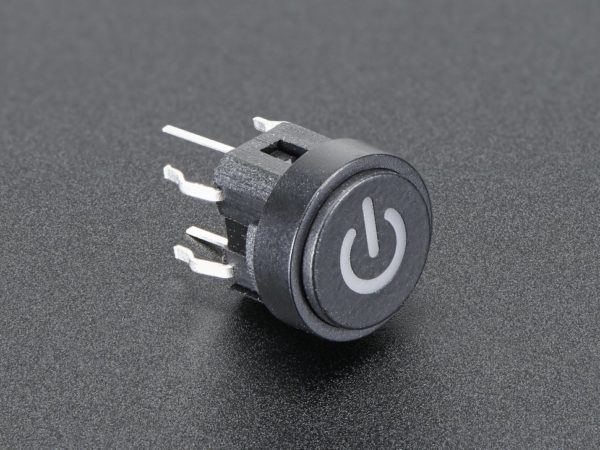

This Mini Illuminated Momentary Power Button it an adorable breadboard-friendly tactile switch that has a built-in LED. It provides a simple way to add a tactile switch and a colorful universal power symbol to your project.

The tact switch is about the same size as 6mm tactile switches and can snap into a breadboard. There are an additional two pins that connect to the anode and cathode of a small LED that shines through the top.

Note that this is a momentary button, not a on-off switch! Also, the LED is not connected to the switch in any way, and does not include a resistor. You'll need to add your own ~1K resistor and control the LED with a microcontroller pin or whatever you like.

This is the Red version of this button – we also sell it in Blue!


Product Diameter: 9.8mm / 0.4″
Product Height: 8mm / 0.3″
Voltage rating for tactile switch: 12V
Current rating for tactile switch: 50mA
Current rating for LED: ~10mA
Product Weight: 0.4g/0.0oz

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
