FeatherWing Doubler – Prototyping Add-on For All Feather Boards

FeatherWing Doubler – Prototyping Add-on For All Feather Boards


In stock


Availability: 4 in stock SKU: AD2890 Categories: ,

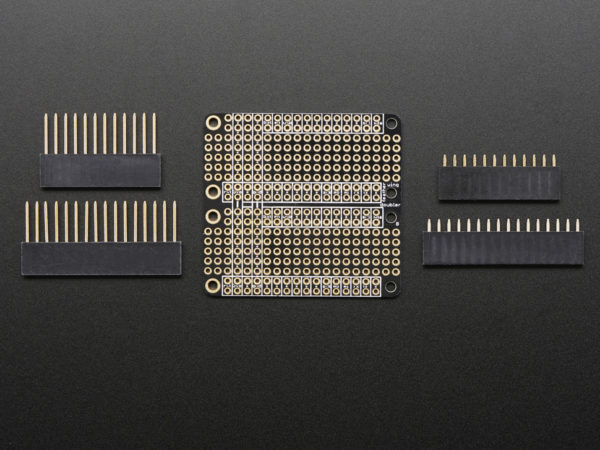

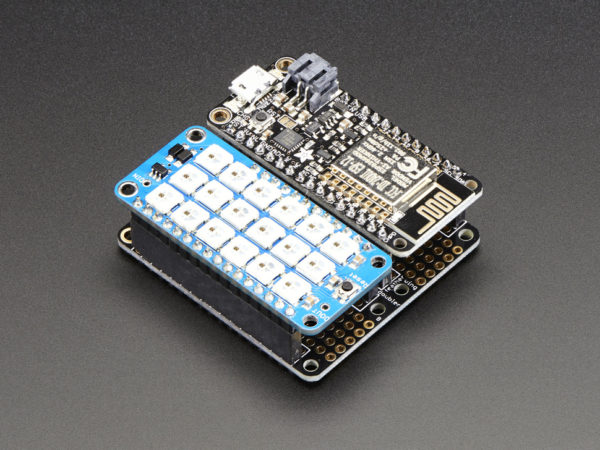

This is the FeatherWing Doubler – a prototyping add-on and more for all Feather boards. This is similar to our FeatherWing Proto except there are two! The magic of the Doubler comes when stacking a Feather and another board on top of the Doubler so you can work with both boards simultaneously side-by-side! In addition to the board the Doubler comes with:

1 Doubler PCB
1 set Feather Stacking Headers
1 set Feather Female Headers

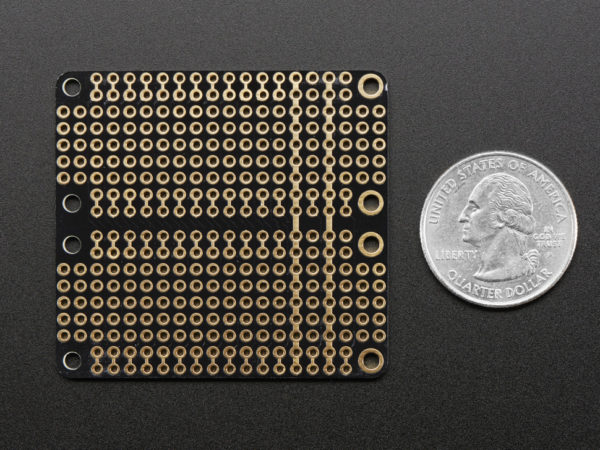

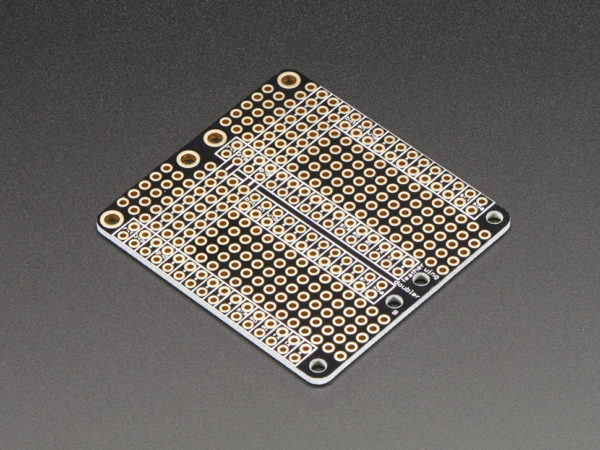

The Doubler, like the Proto, has a duplicate breakout for each pin on a Feather, as well as a bunch of plain grid proto holes. Also, the two sets of pins are cross connected and for GND and 3.3V, we give you a full strip of connected pads.

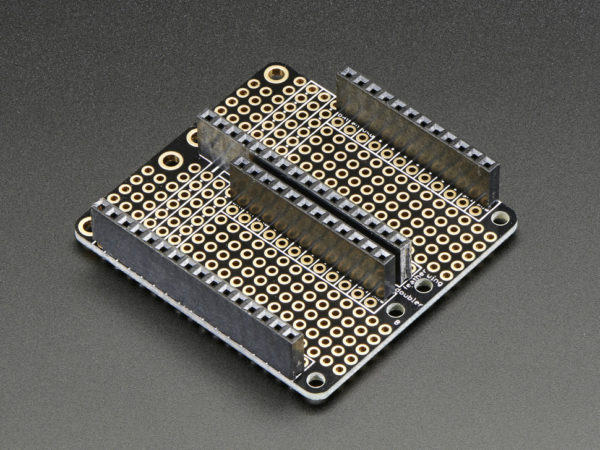

You'll need to solder on the female headers or stacking headers however you like, the Doubler comes as a mini kit!

Check out our range of Feather boards here.

PCB Dimensions: 50.9mm x 47mm x 1.6mm / 2″ x 1.85″ x 0.06″
Weight: 6.7g

Pagina del Produttore

Additional information

Weight 0,05 kg
Dimensions 5 × 1 × 3 cm
